INSTALLATION INSTRUCTIONS
Juno Smart LED RGBW Speaker LED Trim Kit
912-00386-001 REV F
DATE 10/2023
PAGE | 4

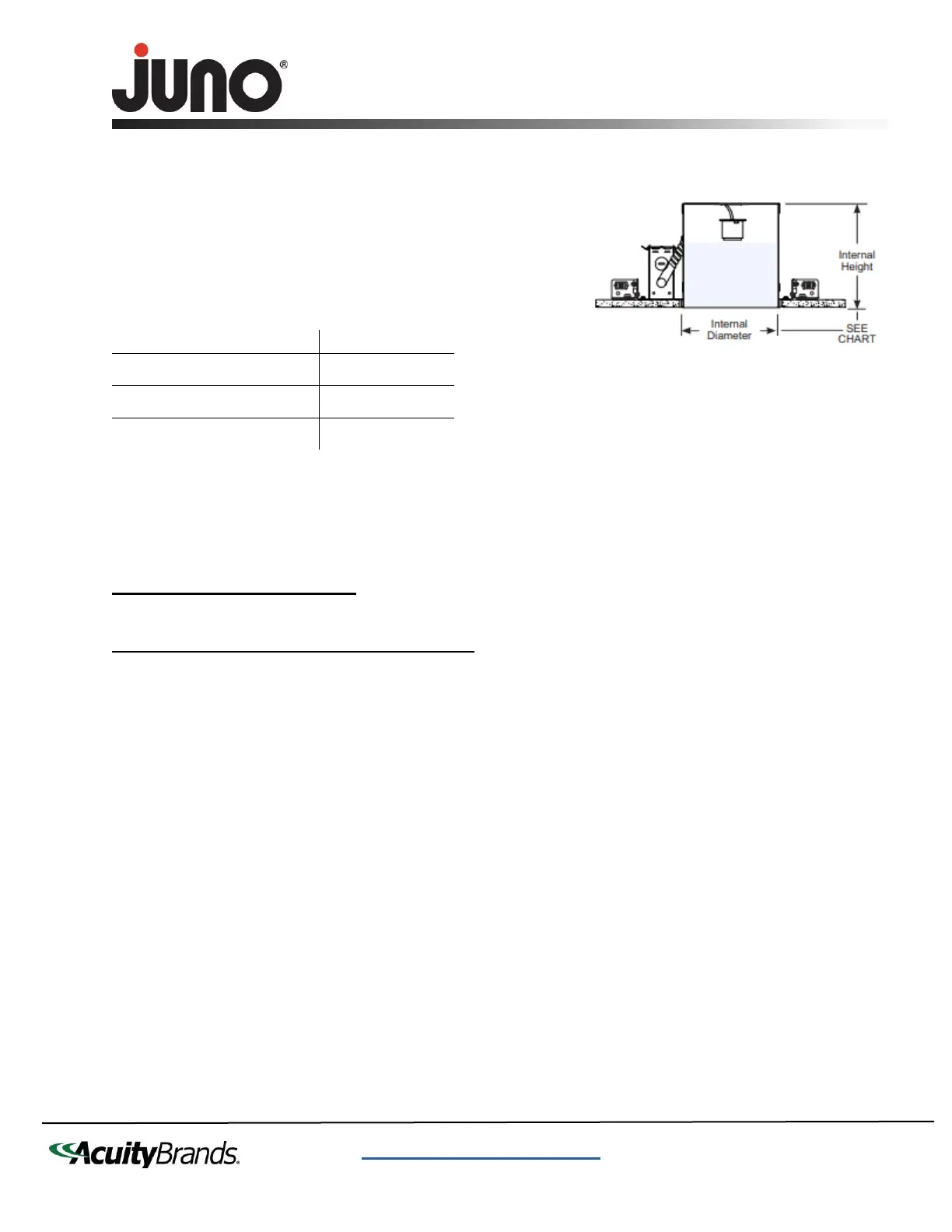

Juno Retrofit LED Trim Compatibility in Recessed Cans
Juno Retrofit LED trims are designed to work with most standard UL listed
recessed incandescent housings. When used with standard medium base
incandescent housings, the medium base socket adaptor must be used. Housing
compatibility can be determined by measuring the recessed housing diameter and
height as shown in the diagram. Refer to the chart for compatible size ranges.
Housing construction features vary. The height and diameter chart should be used
as a guideline. Actual installation is the best method of determining compatibility.
INSTALLATION STEPS:
Step 1: PREPARE FOR FIXTURE INSTALLATION
1.1 Ensure input power is 120V, 60Hz, supply wires are rated for at least 90°C (194°F), and power is
disconnected by turning OFF the circuit breaker or by removing the appropriate fuse at the fuse box.
1.2 Read the entirety of the installation instructions manual prior to installation.
Note: If user is planning to create a speaker group, make sure to read Steps 4 & 5 before installing fixtures. The “MASTER” unit
MUST be within 30 ft of all surrounding “SATELLITE” units to ensure the speaker group forms properly. Units further than 30 ft
may experience distorted sound or may not connect to the speaker group at all.
