Juntek DPM-8608 - Module Description; Component Identification

4
4

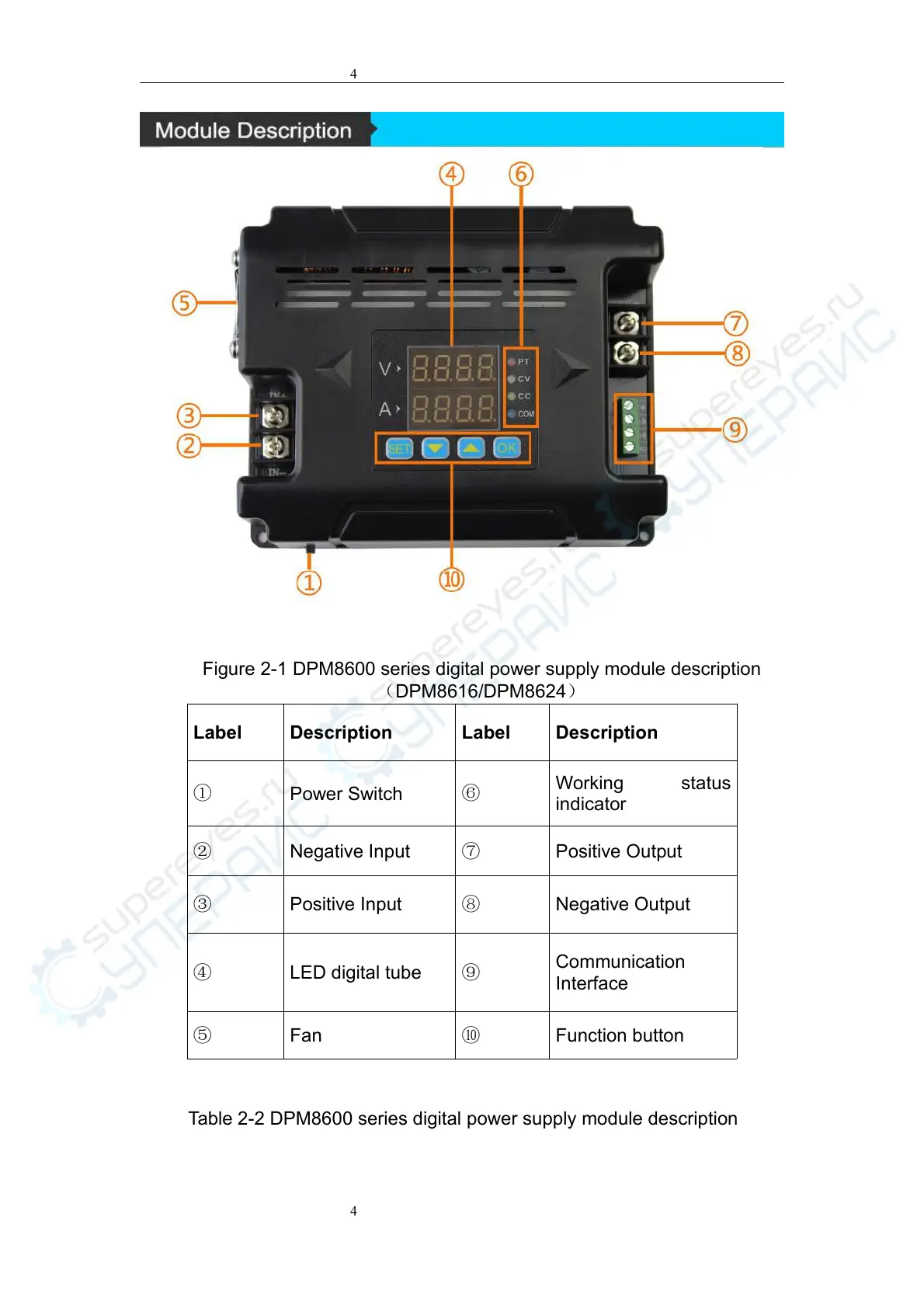

Figure 2-1 DPM8600 series digital power supply module description
（
DPM8616/DPM8624
）
Label
Description
Label
Description
①
Power Switch
⑥
Working status
indicator
②
Negative Input
⑦
Positive Output
③
Positive Input
⑧
Negative Output
④
LED digital tube
⑨
Communication
Interface
⑤
Fan
⑩
Function button
Table 2-2 DPM8600 series digital power supply module description
