8
PLEASE NOTE:
SYSTEM WILL SHUT DOWN BEYOND LOW BATTERY WARNING TO PROTECT CELLS FROM DAMAGE.
STORAGE AND TRANSPORTATION
1. The equipment should be stored in the packaging provided in dry, clean conditions away from direct sunlight, sources of high
temperature, petrol and solvent vapours.
2. Do not store outside the temperature range - 10°C to +50°C or with humidity above 90%.
3. When stored as stated, the expected shelf life of the product is 5 years from date of manufacture.
4. The original packaging is suitable for transporting the product throughout the European Economic Community.
TECHNICAL SPECIFICATIONS
(Unless otherwise stated in the Reference leaflet)
Respiratory Protection
EN12941
Nominal and Assigned Protection Factors: please see relevant Headtop User Instructions
Outlet Flow Characteristics
Manufacturers Minimum Design Flow (MMDF) 150 l/min
Maximum flow 230 l/min.
Battery Packs
4 hr battery = 5.2V NiMH rechargeable
8 hr battery = 5.2V NiMH rechargeable
I.S. battery = 7.8V NiMH rechargeable
Intrinsic Safety
EN50020 EEx ib IIB T3, SIRA Ex02Y2162X
ib – incapable of causing ignition in normal operation
IIB – gas sub group: (EN50014)
T3 – Max. surface temperature 200°C (Ta = -20°C to +40°C – EN50014)
T = 55°C – Max. surface temperature (Dust Zones - EN50281)
SIRA Ex02Y2162X - Certification number
X – The battery must be charged in a safe area
Ingress Protection code for air filter unit EN60529 IP53
When fitted with I.S. pouch EN60529 IP63
5x = Dust protection
6x = Dust tight
x3 = Spraying water
Operating Conditions
- 5°C to +40°C and <90% humidity
Weight (including 4 hr battery but excluding belt and filters)
Jupiter™ Air Filter unit = 815 grams
In use
Use in the ‘power-off’ state is not normal, little or no protection is provided and a build up of carbon dioxide and depletion
of oxygen within the headtop may occur, vacate the contaminated area immediately.
1. Take care to prevent the breathing tube from becoming looped around protruding objects.
2. If during use the airflow into the headtop stops, is reduced and the alarm sounds or if odour is detected, vacate the contaminated
area immediately and investigate the cause (please see fault finding).
3. The ‘in-use’ life of the product will vary with frequency and conditions of use.
4. In everyday use, it is recommended that the product is discarded after approximately 5 years service, provided the product is
stored as stated below. Some extreme conditions may result in deterioration over a shorter period.
Doffing
Do not remove the headtop or turn off the air filter unit until you have vacated the contaminated area.
1. Lift the headtop off the head.
2. Turn off the air filter unit.
3. Unbuckle the waistbelt.
NOTE:
If the respirator has been used in an area that has caused it to become contaminated with a substance requiring special
decontamination procedures it should be placed in a suitable container and sealed until it can be decontaminated.
CLEANING INSTRUCTIONS
Do not clean in a Potentially Explosive Atmosphere.
• Use a clean cloth dampened with a mild solution of water and liquid household soap.
• Do not use petrol, chlorinated degreasing fluids (such as trichloroethylene), organic solvents or abrasive cleaning agents to clean
any part of the equipment.
• To disinfect, use 3M 105 wipes as detailed in Reference leaflet.
MAINTENANCE
Please see Fig. 8. Do not attempt any servicing operations, other than those described in Figs. 1-9.
Maintenance, servicing and repair must only be carried out by properly trained personnel.
Use of unapproved parts or unauthorised modification could result in danger to life or health and can invalidate any warranty.
WHAT WHEN
Airflow check Before use
General Inspection Before use - Monthly if not in regular use
Calibration Before first use then monthly
Cleaning After use
Replace the battery pack after 500 charges
Filter gasket replacement (see Fig. 9)
If disposal of parts is required this should be undertaken in accordance with local health and safety, and environmental regulations.

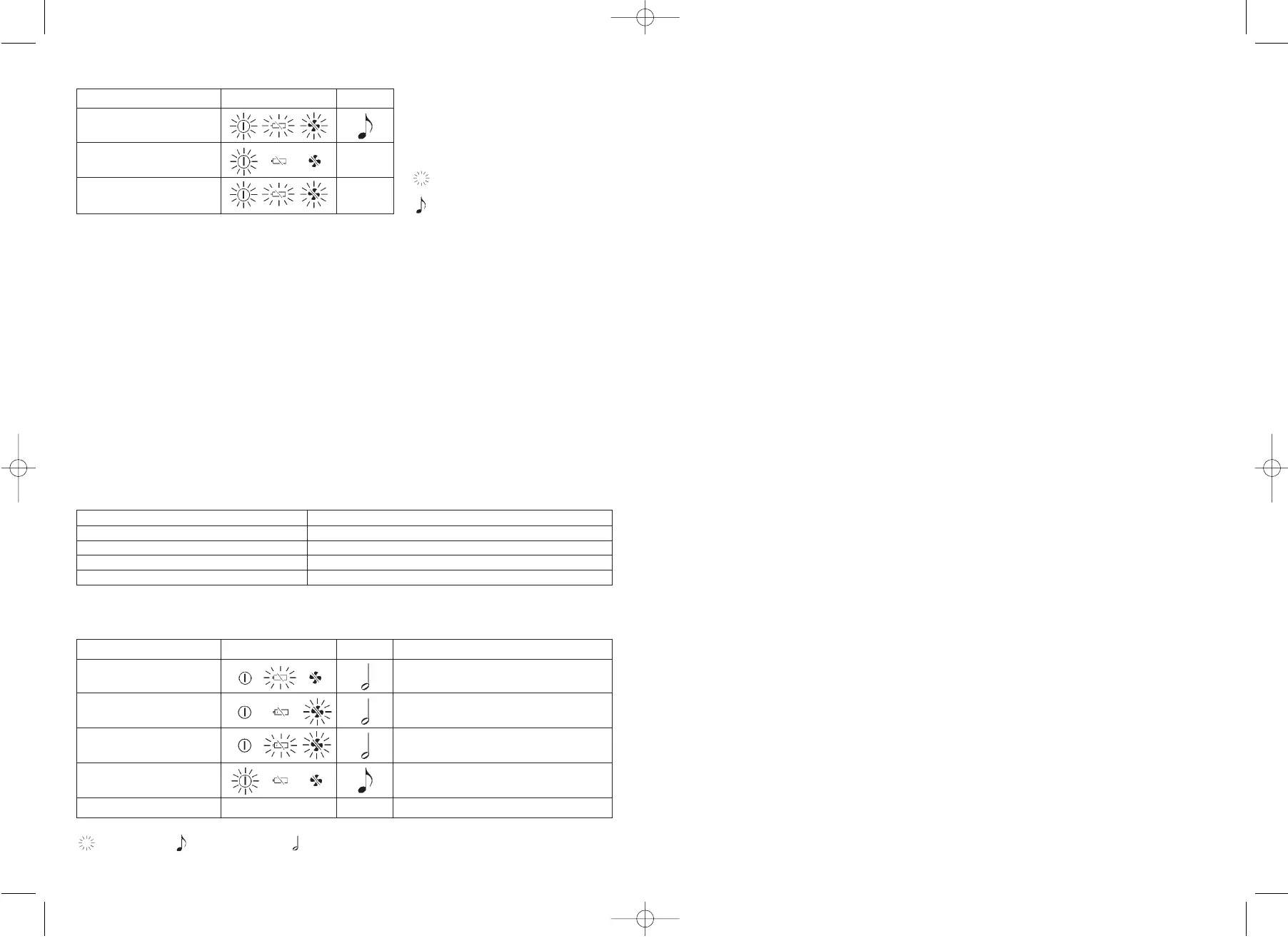

FAULT FINDING
Key
= Slow Flash = One Short Beep = Long Intermittent Beep
7
WARNINGS DISPLAY SOUNDER COMMENTS
LOW BATTERY
LOW FLOW
LOW FLOW AND BATTERY
FLOW RECOVERY
ODOUR DETECTED
Charge Battery (Fig 1)
Hose blocked – Clear / Replace hose
Filters blocked – Replace filters (Fig 5)
Calibration incorrect – Re-calibrate (Fig 3)
See above
Normal operation
Replace filters (Fig 5)
OPERATION DISPLAY SOUNDER
SWITCHING ON
ON (NORMAL OPERATION)
SWITCHING OFF
Key
= Slow Flash
= One Short Beep
