Page 6 For technical questions, please call 1-888-866-5797. Item 63428
Installation
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
This Inverter must only be connected to batteries with a output voltage of 12 volts DC.
Lower voltage will not operate the Inverter properly, and more voltage could damage the Inverter
or the device being powered. Do not use this Inverter with positive ground electrical systems.
The Inverter has a number of shut-down points,
for the safety of the operator, the Inverter, and the devices being used with it.
• If the DC input voltage drops too low,
the alarm on the Inverter will sound.
If the input voltage drops further, the Inverter will
shut down automatically to prevent permanent
battery damage. Recharge the battery soon.
• If the DC input voltage exceeds 15 V
the Inverter will shut down automatically.
• If the output load power rises higher
than the rating power of the Inverter,
the Inverter may shut down automatically.
• The Inverter may automatically shut down
if its internal temperature gets too high.
Note: Even though this Inverter has built-in mechanisms to minimize damage,
these situations should be avoided because they can still damage the Inverter or battery.
Red +
Positive
Terminal
Black –
Negative
Terminal
Ground
Terminal

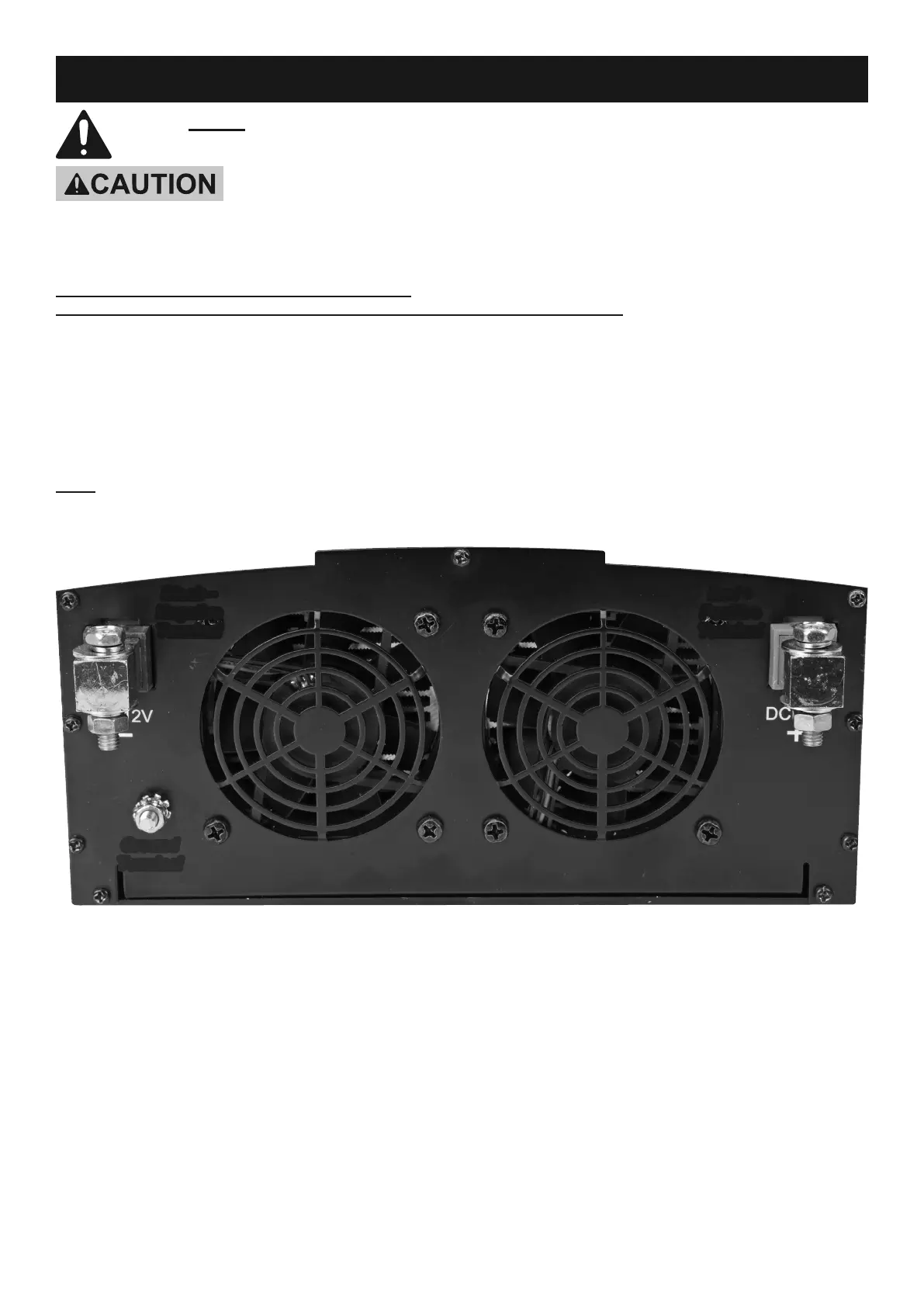

Figure A: Terminals on Back of the Inverter
1. Place the Inverter on a dry, level, non-flammable,
stable surface. Make sure the Inverter has
adequate ventilation and is not in direct sunlight.
2. Connect one end of a ground wire (not included,
use at least recommended wire thickness from
specification table) to the Ground Terminal
located on the back of the Inverter. Then connect
the other end of the ground wire to a paint/rust
free grounded metal surface, grounding rod, or
other appropriate ground source.
3. Battery Type Selection:
• Use only deep cycle lead-acid batteries with
this Inverter, such as 12 volt marine/RV deep-
cycle batteries. DO NOT use automotive,
engine starting (SLI), or maintenance-
free wet cell batteries with this Inverter;
they are designed for repeated, shallow
discharge and will wear out quickly.
• Gel and AGM (Absorbed Glass Mat)
batteries can be used with this Inverter,
but they require special charging procedures.
Refer to battery supplier’s instructions.
To Next Page
