Jupiter J100 User Manual

J100 Models Installation
J100 Hardware Manual 13
Follow a pattern which makes the most sense for your usage.

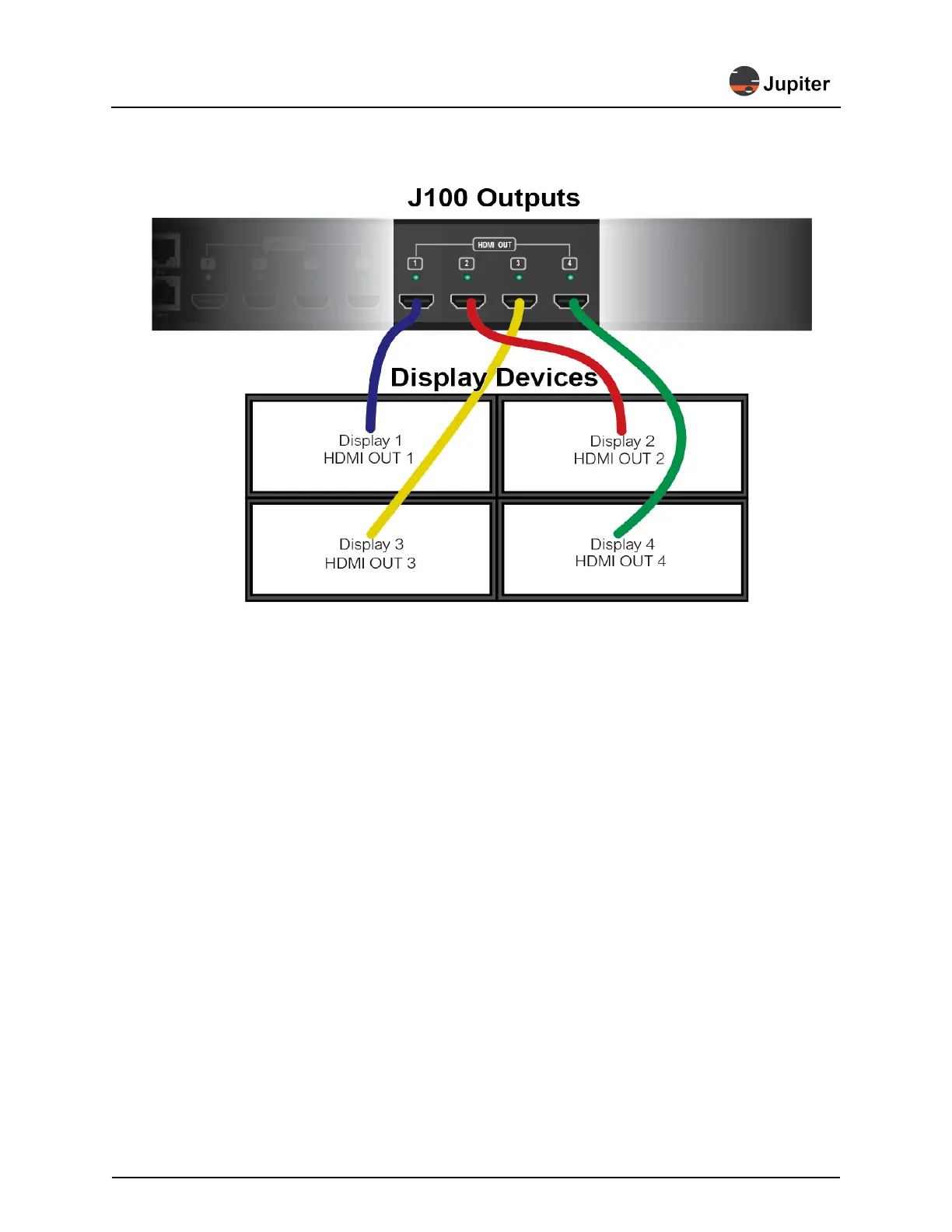

Figure 3.2: Typical Mapping of J100 Outputs to Displays
7 Verify functioning of your unit
• Lights on unit (The power button on front will light up when unit has power)
• Network connection lights are working properly
• You can connect to the J100 through software (see J100 Client Manual)
• Status lights are behaving properly
• Connection and order of connections to each display are as you have planned
