JVA Z Series Quick Start Guide

Page 2 © JVA Technologies www.jva-fence.com
1 Quick Start Guide
1.1 THE FULL USER MANUAL
The compete user manuals can be downloaded here:
www.jva-fence.com/z11
www.jva-fence.com/z13
www.jva-fence.com/z14
www.jva-fence.com/z18

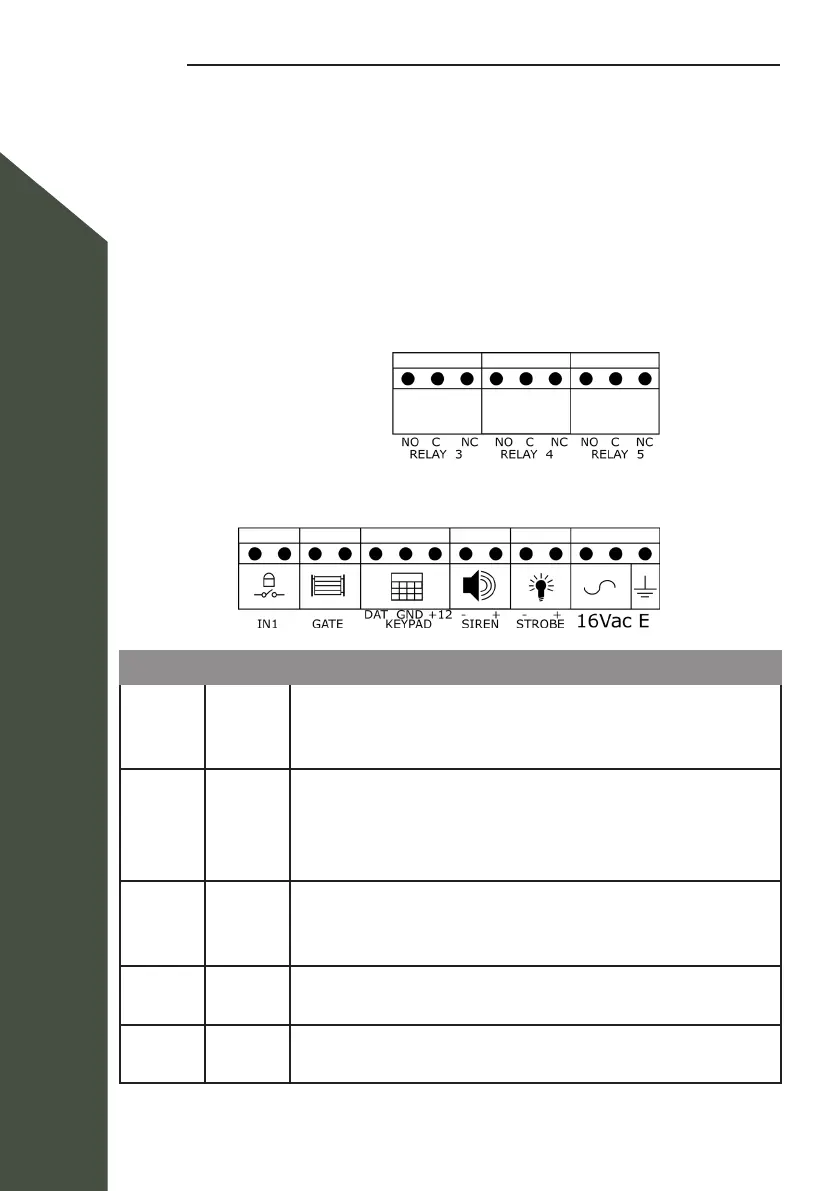

1.2 LOW VOLTAGE WIRING
Label Type Descripon
IN1 2 Way Energizer control input 1 (dry contact) internally wired
in parallel with the key switch. Arm energizer when
closed
GATE 2 Way Energizer control input 2 (dry contact). Default func-
on is gate input, normally closed. When the unit is
armed and the gate is opened, it will trigger the gate
alarm.
KEYPAD 3 Way Supplies power and data line for an external keypad.
The +12 source on these terminals is protected with
1A self reseng fuse.
SIREN 2 Way Switched 12V output. 30W max, shared between Si-
ren and Strobe. Low side switched
STROBE 2 Way Switched 12V output. 30W max, shared between Si-
ren and Strobe. Low side switched
