JVC AV-28BD5EES - Page 16

No.51709
A
V-28BD5EKI AV-28BD5EP AV-28BD5EE
A
V-28BD5EKIS AV-28BD5EPS AV-28BD5EES
1-14
■
■■
■

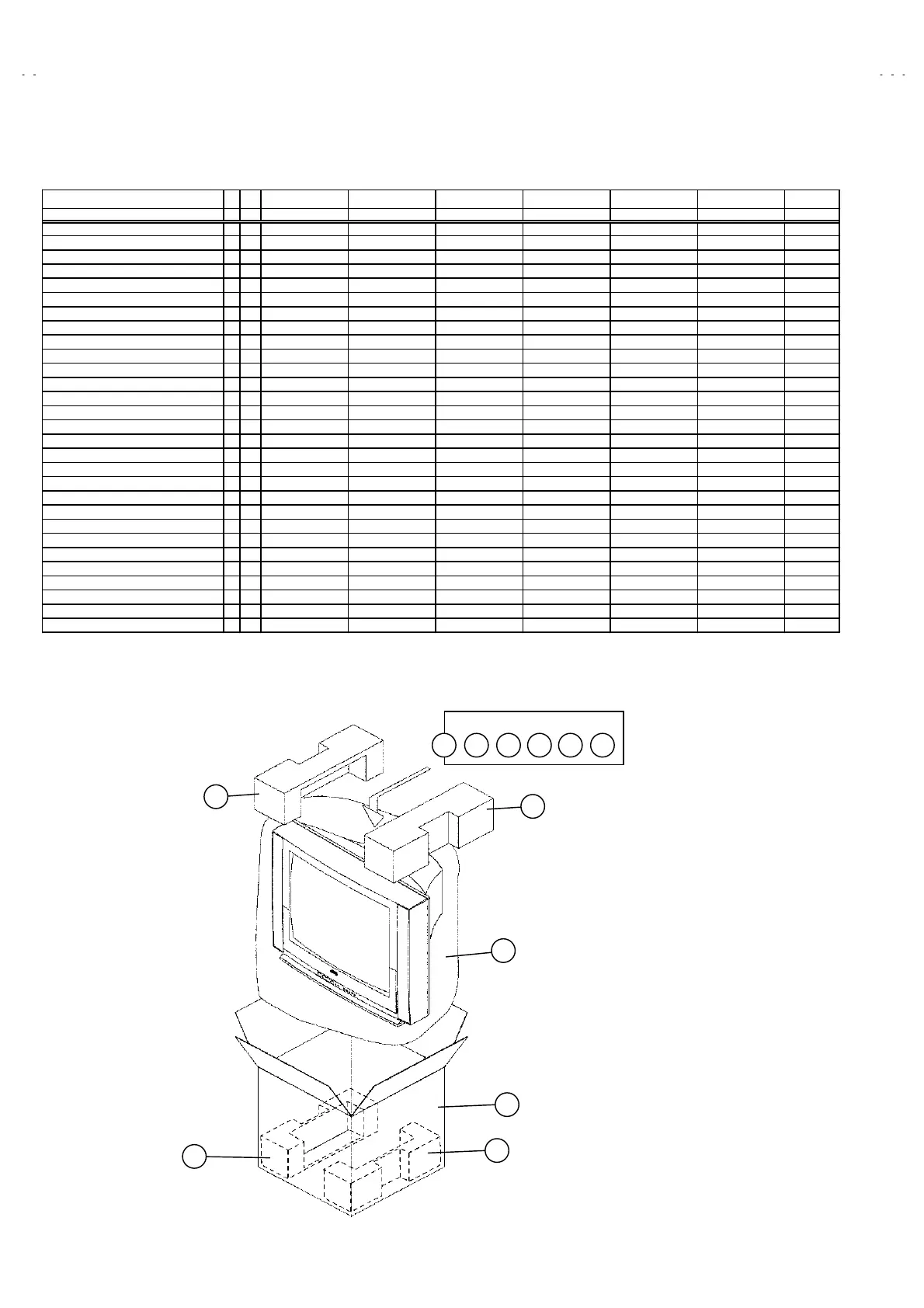

PACKING & EXPLODED VIEW PARTS LIST
■
■■
■
PACKING
14
15
14
18
!
17
19
20
!
23
!
24
!
25
26
MODEL
AV-28BD5EKI AV-28BD5EKIS AV-28BD5EP AV-28BD5EPS AV-28BD5EE AV-28BD5EES
Part Name
!
Ref.
Part No. Part No. Part No. Part No. Part No. Part No.
Description
MASK FRONT
!
1 PTFMSJ28B2F PTFMSJ28B2FS PTFMSJ28B2F PTFMSJ28B2FS PTFMSJ28B2F PTFMSJ28B2FS
COVER BACK
!
2 4852157002 4852157002 4852157002 4852157002 4852157002 4852157002
CLAMP CORD 3 97P4602700 97P4602700 97P4602700 97P4602700 97P4602700 97P4602700
BUTTON POWER 4 4854857301 4854857302 4854857301 4854857302 4854857301 4854857302
BUTTON CH 5 4854946701 4854946702 4854946701 4854946702 4854946701 4854946702
SPEC PLATE
!
6 4855415800 4855415800 4855415800 4855415800 4855415800 4855415800
COVER JACK 7 4857537301 4857537302 4857537301 4857537302 4857537301 4857537302
MARK BRAND 8 4855622600 4855622600 4855622600 4855622600 4855622600 4855622600
SCREW CRT FIX 9 4856015800 4856015800 4856015800 4856015800 4856015800 4856015800 (x4)
WASHER RUBBER 10 4856215401 4856215401 4856215401 4856215401 4856215401 4856215401 (x4)
SPEAKER 11 4858311110 4858311110 4858311110 4858311110 4858311110 4858311110 (x2)
SPRING 12 4856716000 4856716000 4856716000 4856716000 4856716000 4856716000
SCREW TAPPING 13 7172401612 7172401612 7172401612 7172401612 7172401612 7172401612 (x10)
PAD 14 4858194500UP 4858194500UP 4858194500UP 4858194500UP 4858194500UP 4858194500UP
BOX CARTON 15 4858055800 4858055800 4858055800 4858055800 4858055800 4858055800
CRT (ITC :INC DY)
!
16 4859622160 4859622160 4859622160 4859622160 4859622160 4859622160
INST. MANUAL(ENG.&BUL.)
!
17 IM-294-01/04-00 IM-294-01/04-00 IM-294-01/04-00 IM-294-01/04-00 IM-294-01/04-00 IM-294-01/04-00
BAG POLY 18 4858211400F 4858211400F 4858211400F 4858211400F 4858211400F 4858211400F
BAG P.E 19 4858216202F 4858216202F 4858216202F 4858216202F 4858216202F 4858216202F
REMOTE CONTROLLER 20 48B00RMC72 48B00RMC72 48B00RMC71 48B00RMC71 48B00RMC71 48B00RMC71
DECO SENSOR 21 4855541801 4855541801 4855541801 4855541801 4855541801 4855541801
SCREW TAPPING 22 7172401212 7122401212 7122401212 7122401212 7122401212 7122401212 (x8)
INST. MANUAL(GER.&FRE. SPA. DUT. ITA.)
!
23 - - IM-295-01/04-00 IM-295-01/04-00 - -
INST. MANUAL(FIN.&SWE. NOR. DAN. POR)
!
24 - - IM-296-01/04-00 IM-296-01/04-00 - -
INST. MANUAL(POL.&CZE. HUN. RUM.)
!
25 - - - - IM-297-01/04-00 IM-297-01/04-00
PAD 26 4858194500DN 4858194500DN 4858194500DN 4858194500DN 4858194500DN 4858194500DN
POWER CORD
!
4859906310 4859906310 4859906210 4859906210 4859906210 4859906210
DEGAUSSING COIL
!
58G0000125 58G0000125 58G0000125 58G0000125 58G0000125 58G0000125
WARRANTY CARD GPWJV1V2022 GPWJV1V2022 GPWJV1V2022 GPWJV1V2022 GPWJV1V2022 GPWJV1V2022
26
