English
– 4 –
See pages in the parentheses for details.
Front Panel
1 Disc trays
2 (On/Standby) button and STANDBY lamp (9)
3 Display window
4 SUBWOOFER VOLUME control (10)
5 Remote sensor
6 TAPE 2 3 button and lamp (9, 20)
Pressing this button also turns on the unit.
7 MIC LEVEL control (24 – 25)
8 MIC 1 and MIC 2 jacks (24 – 25)
9 AUX button and lamp (9)
Pressing this button also turns on the unit.
p Deck A cassette holder (20)
q 0 EJECT button for deck A (20)
w Disc number buttons (CD1, CD2, and CD3) (13)
Pressing one of these buttons also turns on the unit.
e 0 (CD tray open/close) buttons (13)
Pressing one of these buttons also turns on the unit.
r VOLUME control (10)
t CD £¥8 (play/pause) button and lamp (9, 13)
Pressing one of these buttons also turns on the unit.
y PANEL OPEN/CLOSE button (9)
Pressing one of these buttons also turns on the unit.
u PHONES jack (10)
i FM/AM button and lamp (9, 12)
Pressing one of these buttons also turns on the unit.
o Deck B cassette holder (20, 21)
; EJECT 0 button for deck B (20, 21)
Powered Rolling Panel
a PRESET – / + buttons (12)
4 / ¢ (reverse search/forward search) buttons
(9, 11, 14, 23, 26 – 28)
s REVERSE MODE button (20 – 23)
d REC START/STOP button (21, 23)
f DUBBING button (22)
g CD REC START button (22, 23)
h TAPE A/B button (20)
j CLOCK/TIMER button (9, 26 – 28)
k SET button (9, 12, 26 – 28)
l Play Back Control (PBC) button (18)
Continued
Display Window
1 2 3
45
q
8
132
9
67
p
w
/ MPX button (19)
z VCD NUMBER –/+ BUTTONS (17)
x 7 (stop) button (13 – 23)
c TUNING – / + buttons (12)
1 / ¡ (fast left/fast right) buttons (11, 14, 20)
v SEA CONTROL button (11)
b PROGRAM/RANDOM button (14, 15, 22)
n EDIT button (23)
m REPEAT button (15)
, DISPLAY button (9)
. SOUND MODE button (10)
P CANCEL button (9, 15)
DEMO button (8)

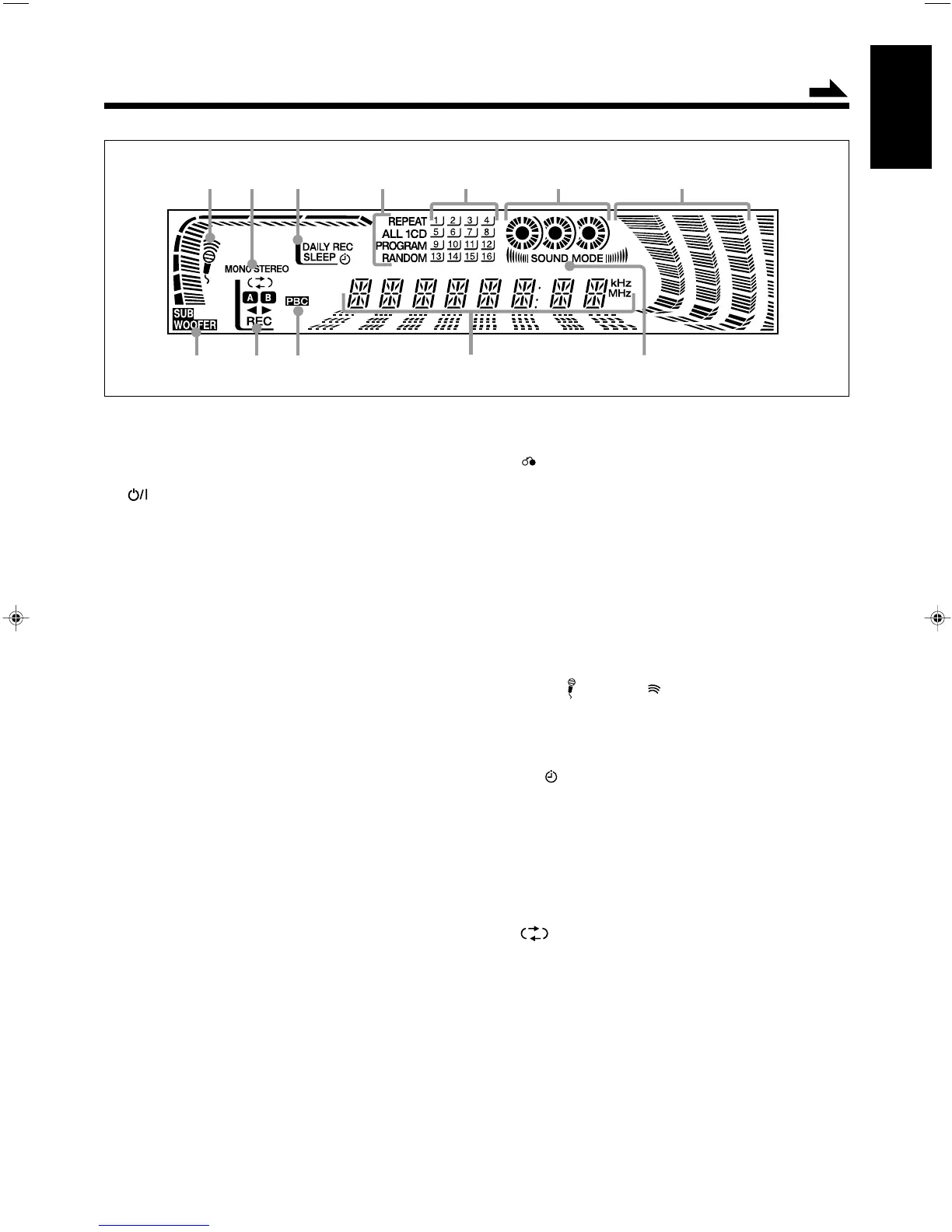

Display window
1 Karaoke ( ) and echo ( ) indicators
2 Tuner (FM) operation indicators
• MONO and STEREO indicators
3 Timer indicators
• DAILY (Daily Timer), REC (Recording Timer), SLEEP,
and (Timer) indicators
4 CD play mode indicators
• REPEAT (ALL/1CD/1), PROGRAM, and RANDOM
indicators
5 CD track number indicators
6 Disc indicators
7 Audio Level indicator
8 SUBWOOFER indicator (10)
9 Tape operation indicators
• (reverse mode), A/B (operating deck), 2 3 (tape
direction), and REC (recording) indicators
p Main display
• Shows the source name, frequency, etc.
q SOUND MODE indicator
w PBC indicator (16 – 19)
