– 7 –
English

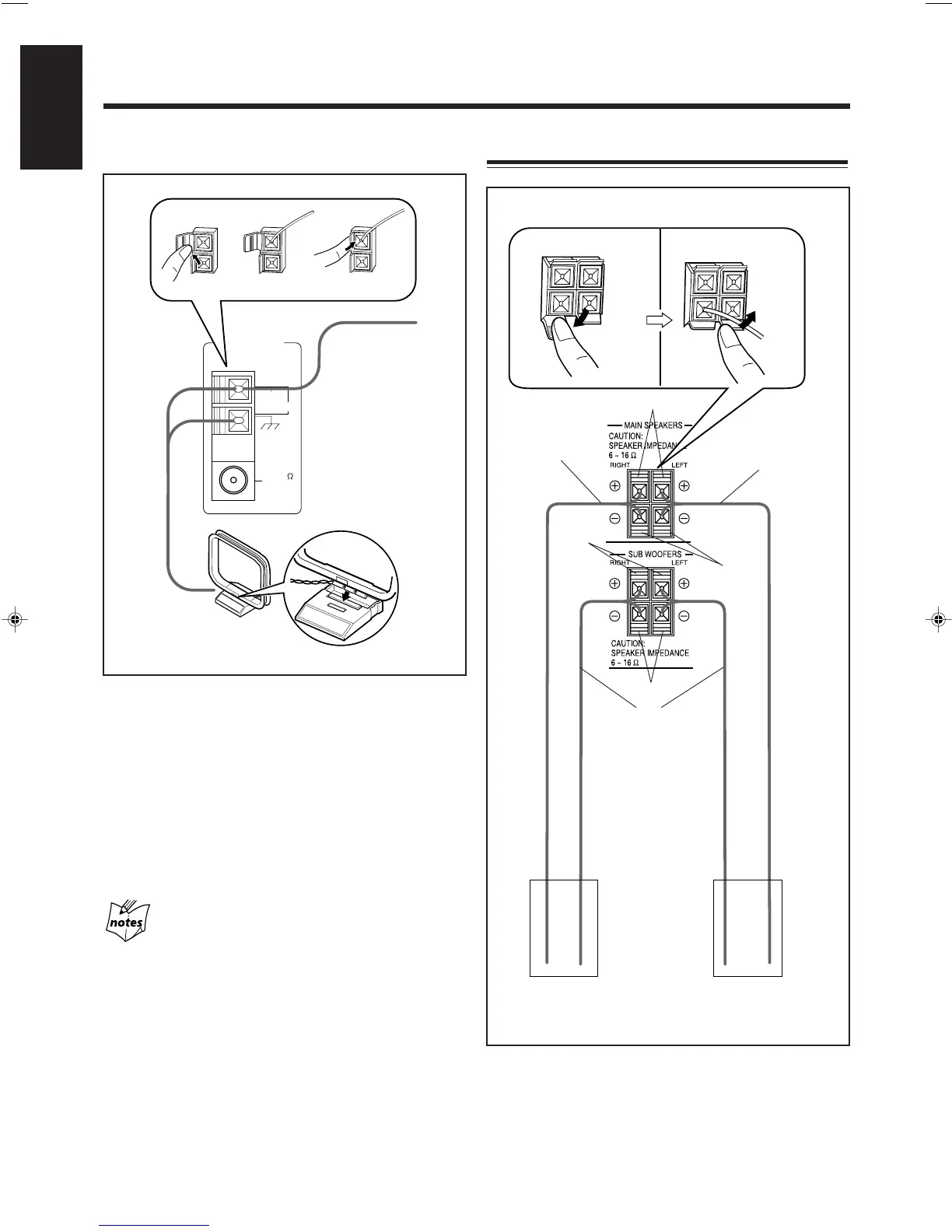

1 Connect the AM (LW/MW) loop antenna to
the AM LOOP terminals as illustrated.
2 Turn the AM (LW/MW) loop antenna until
you have the best reception.
To connect an outdoor AM (LW/MW) antenna
When reception is poor, connect a single vinyl-covered wire
to the AM EXT terminal and extend it horizontally. (The AM
(LW/MW) loop antenna must remain connected.)
For better reception of both FM and AM (LW/MW)
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
AM (LW/MW) antenna
Vinyl-covered wire
(not supplied)
AM (LW/MW) loop
antenna (supplied)
COAXIAL
ANTENNA
AM LOOP
FM 75
AM EXT
2
3
1
Connecting Speakers
Blue
Speaker
cord
(blue/black)
1
2, 3
To right
speaker
To left
speaker
Black
Black
Red
Speaker cord
(red/black)
Speaker
cord
(blue/black)
EN01-14.CA-MXJ950R[E]/f 00.2.1, 10:08 AM7
