JVC CA-MXK30 Service Manual

1-7
Fig.5

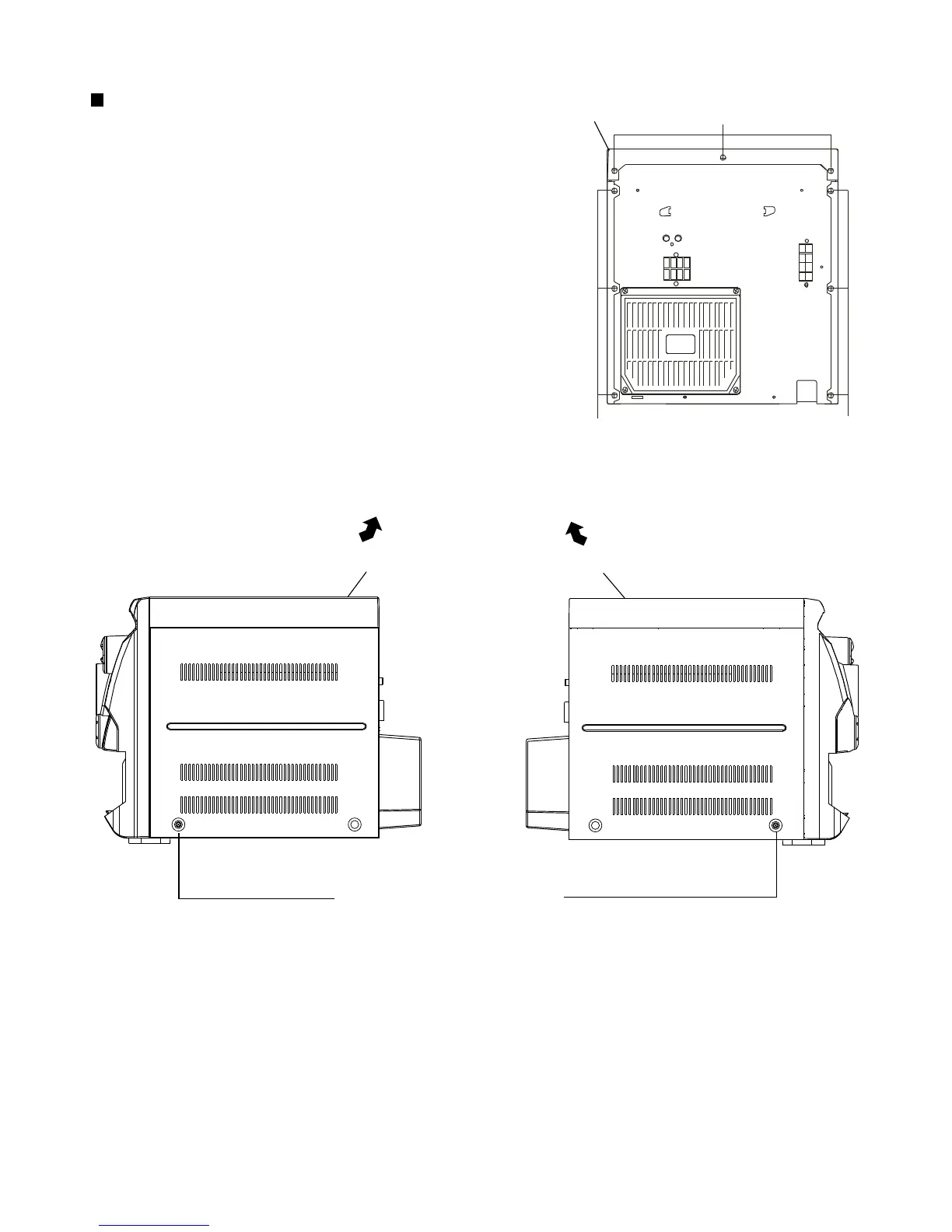

Removing the top cover and two sides BOARD
(See Fig.5 and 6)
1.
2.
3.
Remove the six screws "C" that retain the top cover
from the rear of the body.
Remove the eight screws "C" and "D" that retain the top
from the tw
o sides of the body.
Remove the top cover from the body by lifting it
toward the rear.
Fig.6
B
C
C
Top cover
Front panel assembly
Front panel assembly
D
D
