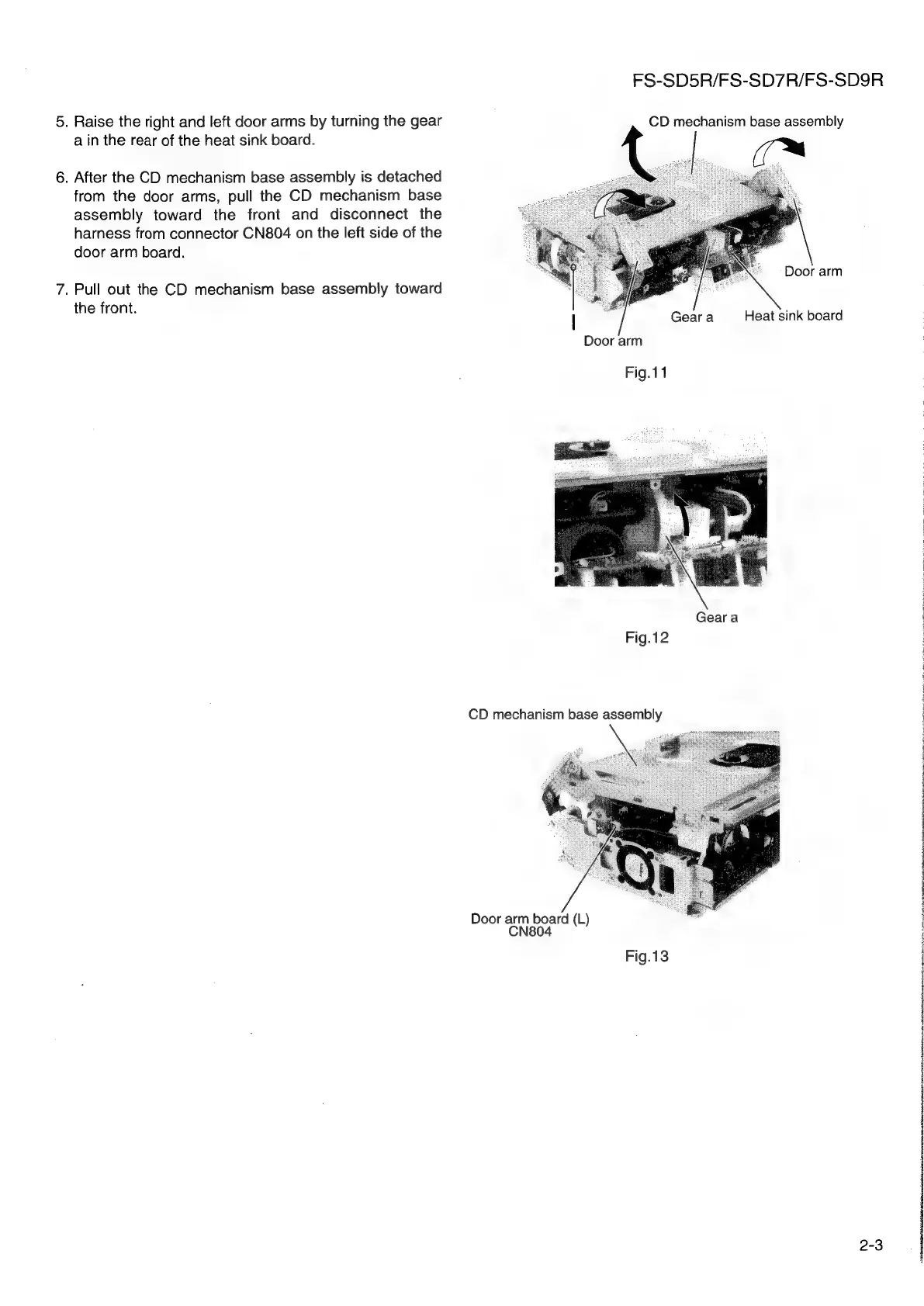

JVC FS-SD7R - Disassembly Method - CD Mechanism Base Continued; CD Mechanism Base Assembly Removal Steps

5. Raise the right and left door arms by turning the gear
ain the rear of the heat sink board.
6. After the CD mechanism base assembly is detached
from the door arms, pull the CD mechanism base
assembly toward the front and disconnect the
harness from connector CN804 on the left side of the
door arm board.
7. Pull out the CD mechanism base assembly toward
the front.
FS-SD5R/FS-SD7R/FS-SD9R
CD mechanism base assembly
Mi
Door arm
Heat sink board
Geara
Door arm
Fig.11
Gear a
Fig.12
CD mechanism base assembly
Door arm board (L)
CN804
Fig.13
