FS-SD5R/FS-SD7R/FS-SD9R

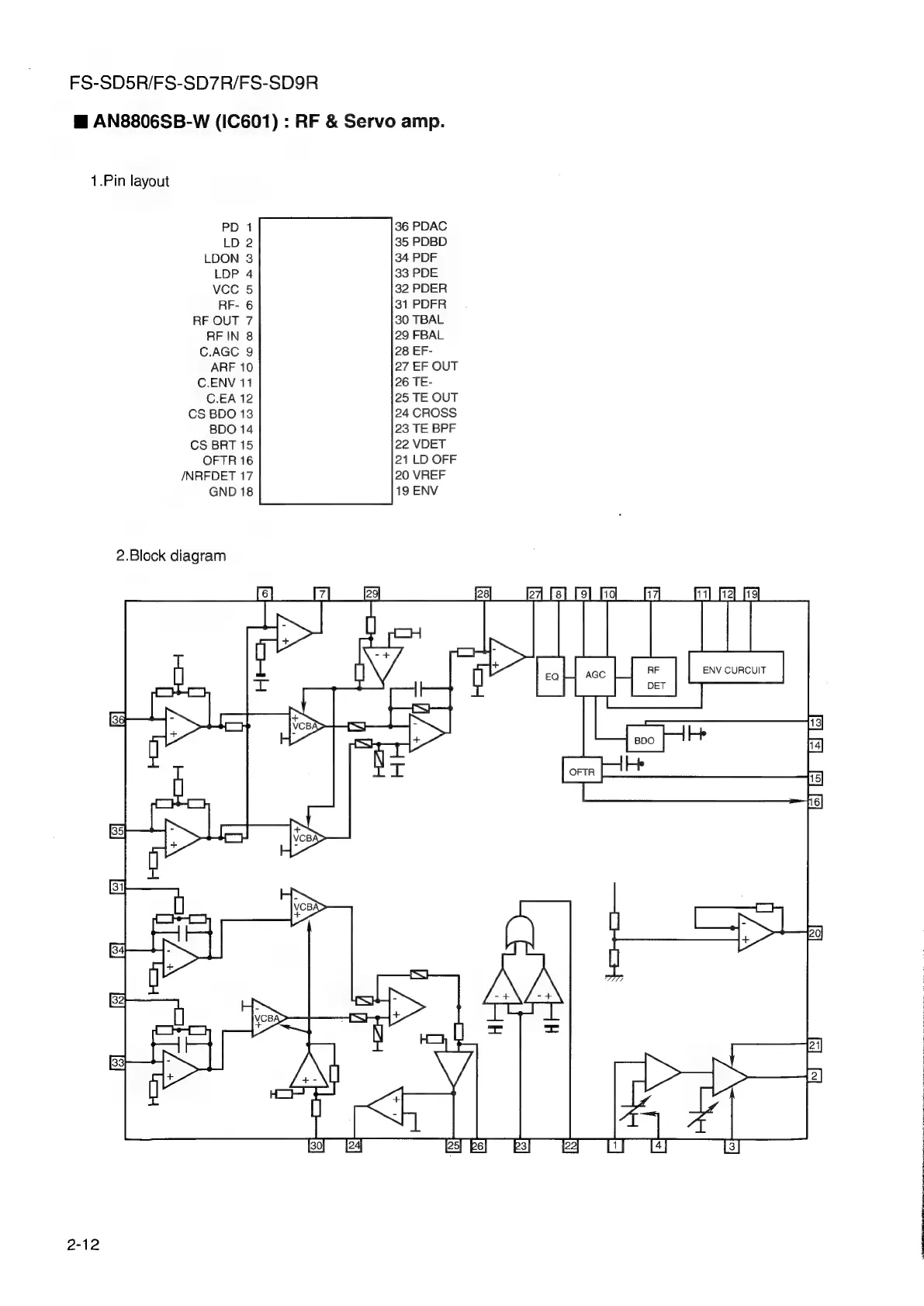

@ AN8806SB-W (IC601) : RF & Servo amp.
1.Pin layout
PD 1 36 PDAC
LD 2 35 PDBD
LDON 3 34 PDF
LDP 4 33 PDE
VCC 5 32 PDER
RF- 6 31 PDFR
RF OUT 7 30 TBAL
RF IN 8 29 FBAL
C.AGC 9 28 EF-
ARF 10 27 EF OUT
C.ENV 11 26 TE-
C.EA 12 25 TE OUT
CS BDO 13 24 CROSS
BDO 14 23 TE BPF
CS BRT 15 22 VDET
OFTR 16 21 LD OFF
/NRFDET 17 20 VREF
GND 18 19 ENV
2.Block diagram
AGC RF ENV CURCUIT
DET
2-12
