1. Display the menu: Press the button.
2. Move the cursor: Press the and button.
3. Confirm the setting item: Press the button.
4. Set the values: Press the and button.
5. Confirm the setting values: Press the button.
6. End of menu settings: Press the button.
Press once to return to the previous menu.
Turns On and Off (on standby) the monitor.
Picture is displayed by delay of a few seconds from power lamp ON.
*POWER ON : Green On *Standby: Off *Power saving mode : Orange blink
Operation of the power lamp
1
2
3
4
5
4

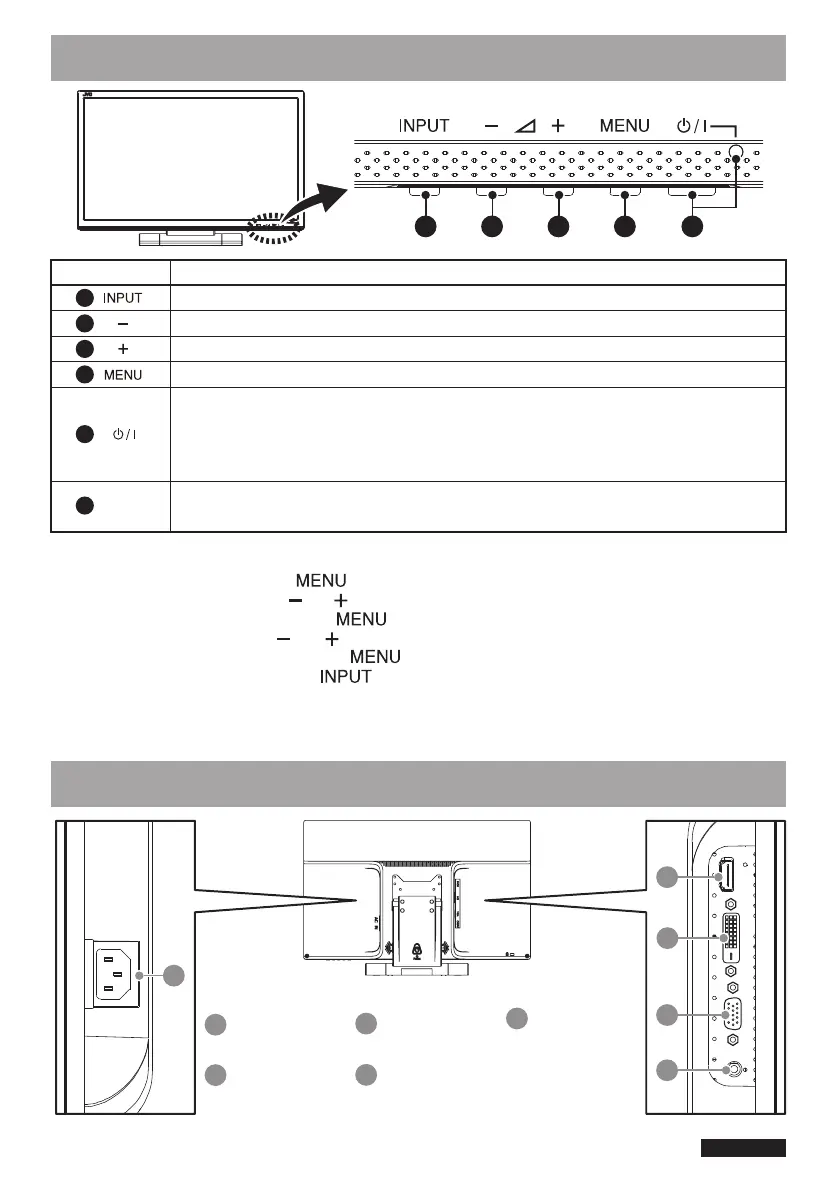

Button Function
Activates and exits the OSD.
Select input source.
Increase the level of volume.
Decrease the level of volume.
+
The MENU button is pressed for more than 10 seconds or more, you can turn
ON / OFF the key lock function.
10sec.
Controls
Connectors
B
HDMI
HDMI digital signal input
(*HDCP 1.1)
AC IN
AC power input
A
C
DVI
DVI-D digital signal input
(*HDCP 1.1)
AUDIO
Stereo audio input
for VGA , DVI and HDMI
E
D
VGA
PC RGB signal input
1
1
2
2
3
3
4
4
5
5
AA
BB
CC
DD
EE
Button operation procedure of MENU
*"Thepressingtimesofthebutton"and"thechangingnumberonthemenu"maynotmatch.
