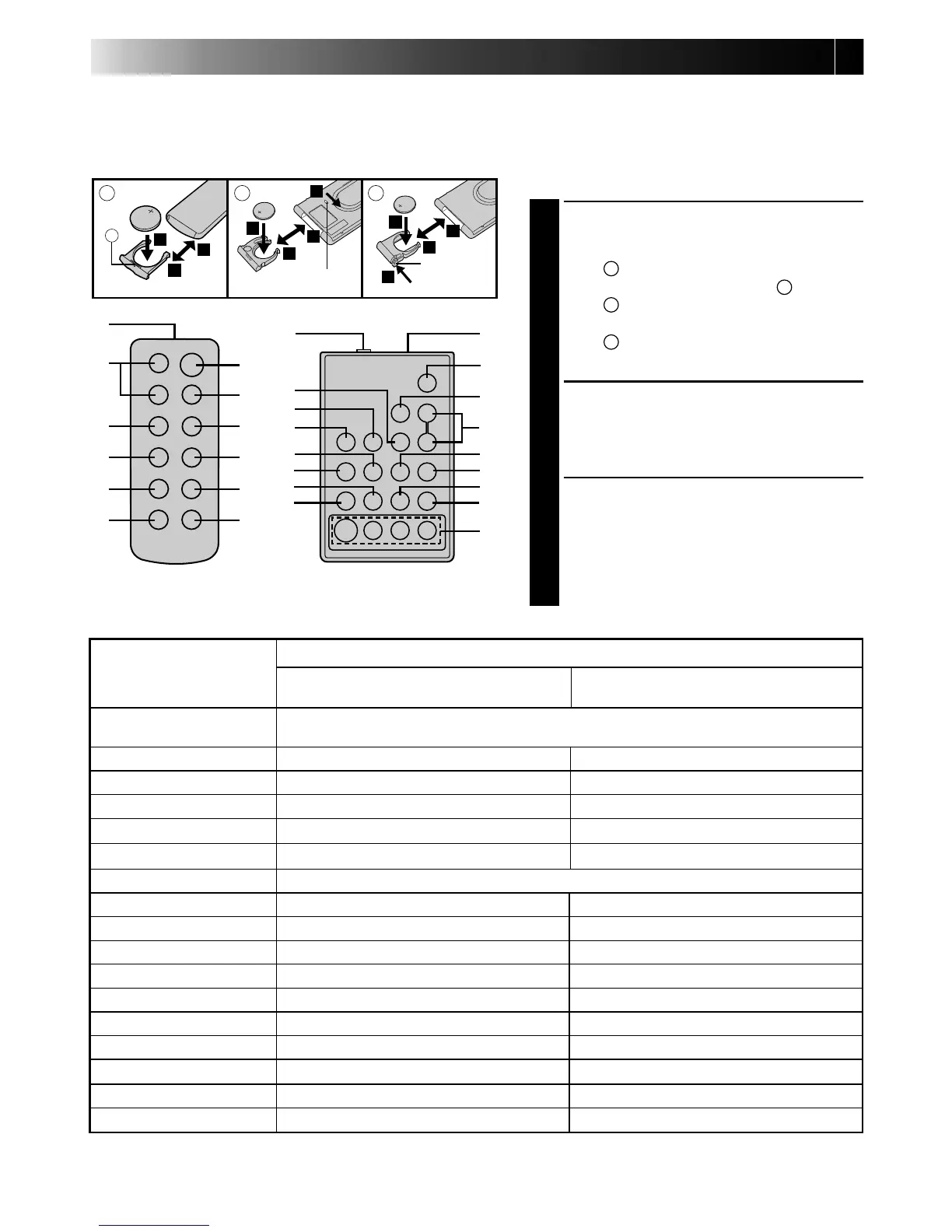

USING REMOTE CONTROL UNIT
The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic
operations (PLAY, STOP, PAUSE, FF, and REW) of your VCR. This remote control unit makes additional
recording functions possible.
A
C
B
a
2
1
3
4
5
6
7
8
9
0
!
@
#
1
$
8
9
!
5
0
3
7
%
^
2
@
4
6
&
1
2
3
1
1
2
3
1
2
3
1
BUTTONS
FUNCTIONS
With the camcorder’s power switch set With the camcorder’s power switch set
to “CAMERA”. to “PLAY”.
1 Infrared beam
Transmits the beam signal.
transmitting window
2 ZOOM (T/W) Buttons Zoom (invariable speed, Z pg. 15) —
3 PLAY Button — Playback start (Z pg. 34)
4 STOP Button — Stop (Z pg. 34)
5 REW Button Retake (rewind)/Quick Review (Z pg. 15) Rew/Rew Shuttle Search (Z pg. 34)
6 INSERT Button — Insert Editing (Z pg. 42)
7 START/STOP Button Functions same as the Recording Start/Stop button on the camcorder.
8 INT. TIME Button Self-Timer/Time-Lapse (Z pg. 41) —
9 REC TIME Button Animation/Time-Lapse (Z pg. 41) —
0 PAUSE Button — Pause (Z pg. 35)
! FF Button Retake (forward) (Z pg. 15) FF/FF Shuttle Search (Z pg. 34)
@ A.DUB Button — Audio dubbing (Z pg. 43)
# PAUSE IN Connector — Z pg. 38
$ MBR SET Button — Z pg. 37
% VISS Button Index Code marking (Z pg. 41) —
^ VCR CTL Button — Z pg. 37
& R.A.EDIT Buttons — Z pg. 38
Installing The Battery
PULL OUT BATTERY
HOLDER
1
Type
A
: Pull out by inserting a pointed
instrument into slot
a
.
Type
B
: Pull out while sliding the lock
hole.
Type
C
: Pinch the release tab and pull
out.
INSERT BATTERY
2
Making sure the plus (+) side is up, insert
the lithium battery (CR2025)* into the
battery holder.
REPLACE BATTERY HOLDER
3
Insert the battery holder into the remote
control unit, and push the holder until it
clicks into place.
* Read the caution concerning lithium
batteries (
Z pg. 2).
Release
tab
# — & : RM-V700U only.
Lock hole
RM-V705U
(provided)
RM-V700U
(optional)
To Next Page
