Connections To A TV/VCR
1) Make sure all units are turned off.
2) Connect the camcorder to a TV or VCR using
optional video and audio cables. If using both
TV and VCR, connect the VCR output to the TV
input.
3) Turn on all units. Set the VCR to its AUX input
mode, and set the TV to its VIDEO mode.
•Use the AC Adapter as the power supply.
•The S-Video cable connection can improve the
dubbed picture quality. (GR-SXM740/SXM340/
SXM240 only).
• For GR-SXM740/SXM340 Owners:
The S-Video cable is optional. Be sure to use the
YTU94146A S-Video cable. Consult the JVC
Service Center described on the sheet included
in the package for details on its availability. Make
sure to connect the end with a core filter to the
camcorder. The core filter reduces interference.
•Be sure to adjust the TV sound volume to its
minimum level to avoid a sudden burst of sound
when the camcorder is turned on.
•If you have a TV or speakers that are not
specially shielded, do not place the speakers
adjacent to the TV as interference will occur in the
camcorder playback picture.
Tape Dubbing
1) Connect the camcorder and the VCR
(
“Connections To A TV/VCR”). Set the Power
Switch
@ to “ ”, turn on the VCR’s power,
and insert the appropriate cassettes in the
camcorder and the VCR. Engage the VCR’s
AUX and Record-Pause modes.
2) Press
4
/6 ^ to find a spot just before the edit-
in point. Once it is reached, press
4
/6 ^ again.
3) Press
4
/6 ^ and engage the VCR’s Record
mode.
4) Engage the VCR’s Record-Pause mode and
press
4
/6 ^.
•Repeat steps 2) through 4) for additional editing,
then stop the VCR and camcorder when finished.

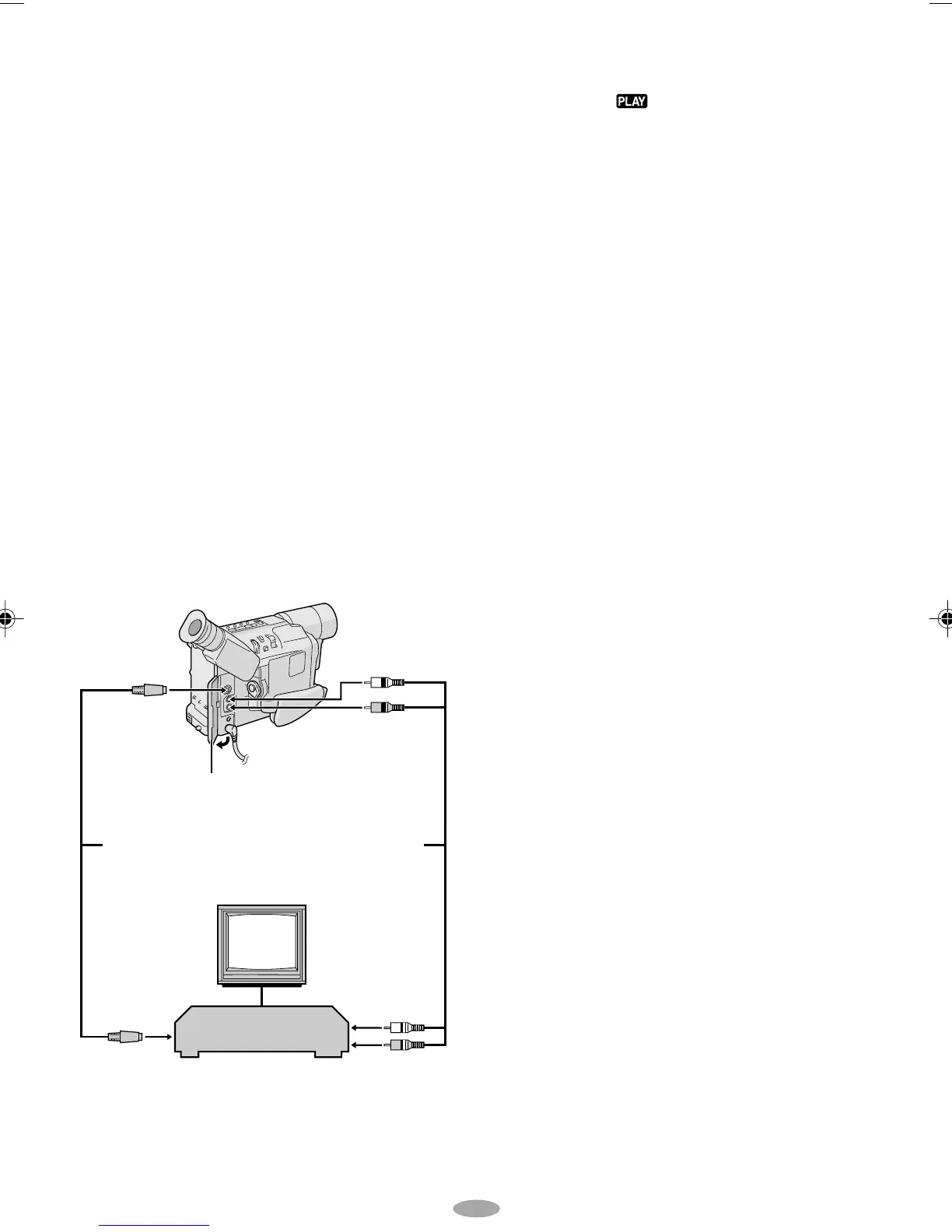

White to
Audio
Output 6
Yellow to
Video Output 7
Connector cover
S-Video cable
(optional)
To S-Video
Output 5
TV
A/V cable
VCR
To S-Video
Input
Yellow to
Video Input
White to
Audio Input
To TV or VCR
