JVC GR-D33US - VF Assembly Disassembly

(No.YF005)1-15
3.2.5 DISASSEMBLY/ASSEMBLY OF [13] VF ASSEMBLY
• When replacing the VF FPC ASSEMBLY, first remove the ex-
terior parts of the VF ASSEMBLY (UPPER CASE(VF) and
BOTTOM CASE(VF)). And then, remove the CONNECTOR
from the BOARD ASSEMBLY. If you remove the CONNEC-
TOR first, the FPC may be cut or the SWITCH may be dam-
aged.
NOTE :
There are two types of VF(COLOR) ASSEMBLY used for this
model: S type and K type.
For methods to distinguish the two types, see Cover Page.
zDisassembly of VF ASSEMBLY
(1) Remove the 2 screws (1 and 2), and remove the EYE
CUP.
(2) Remove the FPC attached to the BRACKET(VF).
(3) Remove the 3 screws (3-5). Pull the BRACKET(VF), and
remove the 2 screws (6 and 7). Then, remove the
BRACKET(VF) from the FPC.
NOTE13a:
During the procedure, be careful not to cut the FPC.
(4) Pull the UPPER CASE(VF)/BOTTOM CASE(VF) from
the HOLDER(VF) from FPC side, and remove the UP-
PER CASE(VF)/BOTTOM CASE(VF).
(5) Remove the 4 screws (8-11), and remove the BOTTOM
CASE(VF) so that the BOTTOM CASE(VF) is facing up-
ward.
NOTE13b:
During the operation, be careful of the LEVER (LENS).
Especially, during the attachment procedure, be care-
ful of the attachment position so that there is nothing
wrong with sliding operation of the LENS ASSEMBLY.
(6) Remove the GUIDE LENS/LENS ASSEMBLY and the
LCD UNIT from the UPPER CASE(VF) if necessary.
zDisassembly of GUIDE LENS/LENS ASSEMBLY
(1) Remove the SHEET (LENS) from the GUIDE LENS(VF).
(2) Remove the LENS ASSEMBLY from the GUIDE
LENS(VF).
NOTE13c:
During the procedure, be careful not to damage or soil
the LENS.
NOTE13d:
Be careful not to lose the SPRING (LENS).

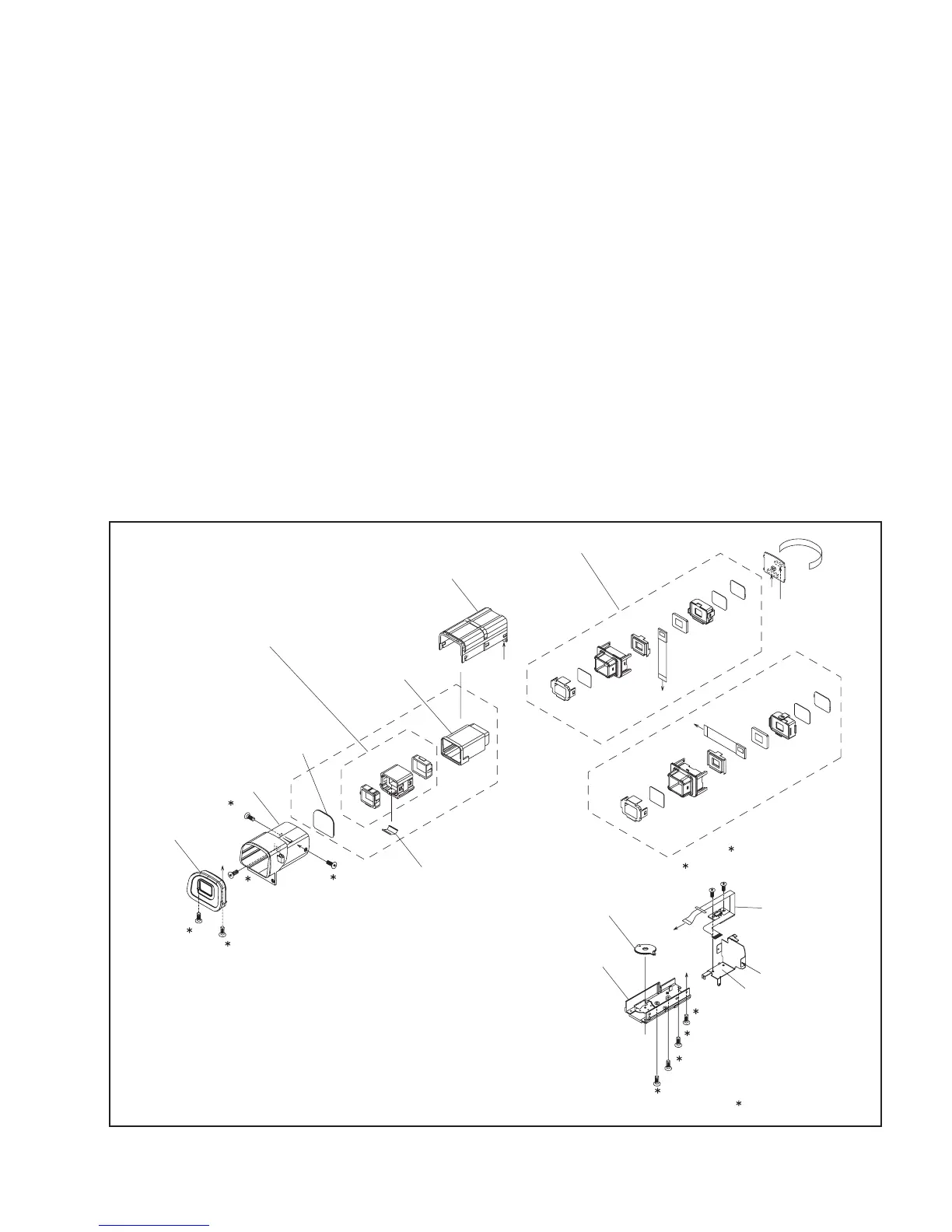

Fig.3-2-5
:0.068N
.
m (0.7kgf
.
cm)
4
(S13b)
<NO TE 13a>
<NO TE 13b>
<NO TE 13d>
<NO TE 13c>
5
(S13c)
1
(S13a)
2
(S13a)
3
(S13b)
6
(S13b)
11
(S13d)
9 (S13d)
8 (S13d)
10 (S13e)
7
(S13b)
BRACKET(VF)
FPC
LCD UNIT(COVER)ASSEMBLY
LENS ASSEMBLY
HOLDER(VF)
LEVER(LENS)
GUIDE LENS(VF)
UPPER CASE(VF)
BOTTOM CASE(VF)
EYE CUP
SHEET(LENS)
SPRING(LENS)
a
c
b
F1
c
b
a
C-VF
BOARD
ASSEMBLY
[0][7]
F2
F2
F1
(S TYPE)
F2
(K TYPE)
