JVC GR-DVM55 Service Manual

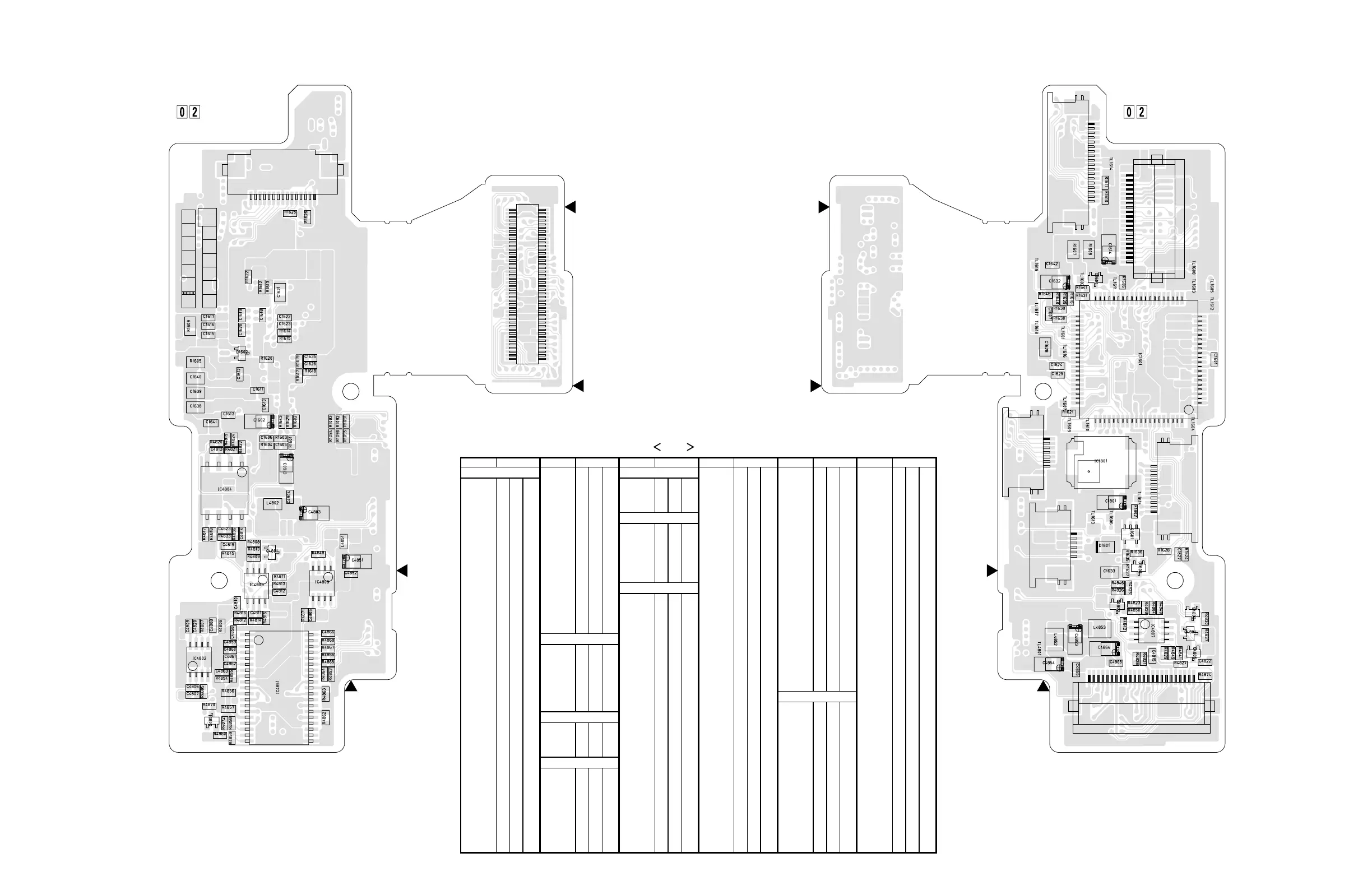

4.38 MDA CIRCUIT BOARD
4-83 4-84
38
1
20 19
8 5
1 4
8 5
4
1
1
8
5
4
1
8
5
4
80 40
41
1
CN206
1 15
CN204
241
CN205
5 41
8
16
CN201
111
CN202
71
CN207
1
80 61
60
40 21
41 20
120
CN208
181
CN203
FOIL SIDE
(
B
)
COMPONENT SIDE
(
A
)
COMPONENT PARTS LOCATION GUIDE MDA
YB10320-01-01
MDA PWB MDA PWB
YB10320-01-01
D
C
2
B
A
1
D
C
2
B
A
1
REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION
CAPACITOR
C1601 A C 1C
C1602 B C 1B
C1603 B C 1B
C1605 B C 1B
C1606 B C 1B
C1607 A C 1C
C1610 B C 1B
C1611 B C 1C
C1612 B C 1C
C1613 B C 1B
C1614 A C 1C
C1615 B C 1C
C1616 B C 1C
C1617 B C 1C
C1618 B C 1C
C1619 B C 1C
C1620 B C 1C
C1621 B C 1C
C1622 B C 1C
C1623 B C 1C
C1624 A C 1C
C1625 A C 1C
C1626 B C 1C
C1627 A C 1B
C1628 A C 1C
C1632 A C 1C
C1633 A C 1B
C1635 B C 1C
C1638 B C 1B
C1639 B C 1C
C1640 B C 1C
C1641 B C 1B
C1642 A C 1C
C1801 A C 1B
C4803 B C 1B
C4804 B C 1B
C4805 B C 1A
C4806 B C 1A
C4807 B C 1A
C4808 B C 1A
C4809 B C 1A
C4810 B C 1A
C4811 B C 1A
C4812 B C 1A
C4813 B C 1B
C4814 B C 1B
C4815 A C 1A
C4819 B C 1B
C4820 B C 1A
C4822 A C 1A
C4823 B C 1B
C4851 B C 2B
C4852 B C 2B
C4853 A C 1A
C4854 A C 1A
C4855 A C 1A
C4858 B C 1A
C4859 B C 1A
C4860 B C 1A
C4861 B C 1A
C4862 B C 1A
C4863 B C 1A
C4864 A C 1A
C4865 A C 1A
C4866 B C 1A
CONNECTOR
CN201 A C 1B
CN202 A C 1B
CN203 A C 1D
CN204 B C 1D
CN205 A C 1A
CN206 B C 2C
CN207 A C 2B
CN208 A C 1C
DIODE
D1602 B C 1C
D1603 A C 1B
D1604 A C 1C
D1801 A C 1B
IC
IC1601 A C 1C
IC1801 A C 1B
IC4802 B C 1A
IC4803 B C 1A
IC4804 B C 1B
IC4806 B C 1A
IC4807 A C 1A
IC4851 B C 1A
COIL
L4802 B C 1B
L4851 B C 1B
L4852 A C 1A
L4853 A C 1A
TRANSISTOR
Q1601 A C 1B
Q4801 B C 1B
Q4802 A C 1A
Q4803 A C 1A
Q4804 A C 1A
Q4805 A C 1A
Q4851 B C 1A
RESISTOR
R1091 B C 1B
R1092 B C 1B
R1093 B C 1B
R1094 B C 1B
R1095 B C 1B
R1096 B C 1B
R1601 B C 1B
R1602 B C 1B
R1603 B C 1B
R1604 B C 1B
R1605 B C 1C
R1606 A C 1C
R1607 A C 1C
R1608 A C 1C
R1609 B C 1C
R1610 A C 1D
R1611 A C 1D
R1612 B C 1C
R1613 B C 1C
R1614 B C 1C
R1615 B C 1C
R1616 A C 1C
R1617 B C 1C
R1618 B C 1C
R1619 B C 1C
R1620 B C 1C
R1621 A C 1B
R1622 B C 1C
R1624 A C 1B
R1625 B C 1D
R1626 B C 1C
R1628 A C 1B
R1629 B C 1B
R1630 A C 1C
R1631 A C 1C
R1635 A C 1B
R1636 A C 1B
R1637 A C 1B
R1638 A C 1C
R1639 A C 1C
R1640 A C 1C
R1641 A C 1C
R1643 B C 1B
R1646 A C 1C
R1802 A C 1B
R4804 A C 1A
R4805 B C 1A
R4806 B C 1A
R4807 B C 1A
R4808 B C 1B
R4809 B C 1B
R4810 B C 1B
R4811 B C 1B
R4812 B C 1A
R4813 B C 1A
R4814 B C 1A
R4815 B C 1A
R4816 B C 1A
R4817 B C 1B
R4818 B C 1B
R4819 B C 1B
R4820 B C 1B
R4821 B C 1B
R4822 B C 1B
R4823 A C 1A
R4824 B C 1B
R4825 A C 1A
R4826 A C 1A
R4827 A C 1A
R4828 A C 1A
R4829 A C 1A
R4830 A C 1A
R4831 A C 1A
R4833 B C 1B
R4836 B C 1B
R4837 A C 1A
R4839 A C 1A
R4840 A C 1A
R4841 A C 1A
R4842 A C 1A
R4845 B C 1B
R4846 A C 1A
R4848 B C 1B
R4849 A C 1A
R4850 A C 1A
R4852 B C 1A
R4854 B C 1A
R4855 B C 1A
R4856 B C 1A
R4857 B C 1A
R4858 B C 1A
R4859 B C 1A
R4860 B C 1A
R4862 B C 1A
R4863 B C 1A
R4864 B C 1A
R4865 B C 1A
R4866 B C 1A
R4867 B C 1A
R4868 B C 1A
R4870 B C 1A
R4871 B C 1A
R4872 B C 1A
R4874 A C 1A
OTHER
TL1601 A C 1C
TL1602 A C 1C
TL1603 A C 1C
TL1604 A C 1B
TL1605 A C 1C
TL1606 A C 1B
TL1607 A C 1B
TL1608 A C 1C
TL1609 A C 1B
TL1610 A C 1B
TL1611 A C 1C
TL1612 A C 1C
TL1613 A C 1B
TL1614 A C 1D
TL1615 A C 1B
TL1616 A C 1C
TL1617 A C 2C
TL1618 A C 2C
TL1619 A C 2C
TL4801 A C 2A
