JVC GR-DVM55 Service Manual

# REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- -----------------------------------------------------
SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.
******************************
PACKING AND ACCESSORY ASSEMBLY <M1>
1 LY31717-022A PACKING CASE,D
LY31717-023A PACKING CASE,B
LY32032-007A PACKING CASE,C,E
LY32032-008A PACKING CASE,A
2 LY20588-001A CUSHION
3 LY30023-003A POLY BAG
4 QPA02003006 POLY BAG,A,C,E
YQM30061-3 POLY BAG,B,D
! 5 LYT0757-001A INST.BOOK(EN),B,D
! LYT0757-002A INST.BOOK(GE),A,C,E
! LYT0757-003A INST.BOOK(FR),A,C,E
! LYT0757-004A INST.BOOK(DU),A,C,E
! LYT0757-005A INST.BOOK(SP),A,C,E
! LYT0757-006A INST.BOOK(IT),A,C,E
! LYT0757-007A INST.BOOK(DA),A,C,E
! LYT0757-008A INST.BOOK(FI),A,C,E
! LYT0757-009A INST.BOOK(SW),A,C,E
! LYT0757-010A INST.BOOK(NO),A,C,E
! LYT0757-011A INST.BOOK(RU),A,C,E
! LYT0757-012A INST.BOOK(CZ),A,C,E
! LYT0757-013A INST.BOOK(PO),A,C,E
! LYT0757-014A INST.BOOK(HU),A,C,E
! 6 LYT0501-001A INST.BOOK(SOFT.SETUP),B
! 7 LYT0378-003A SHEET(AGREMENT)
8 LYT0194-001B Q.CARD(JUK),B,D
9 BT-54008-2 GUARANTY CARD,B,D
BT-54013-2 WARRANTY CARD,A,C,E
10 QQR0490-002 CORE FILTER
11 LY32210-002B CD ROM,A,B
LY32210-004A CD ROM,C,D,E
! 12 LY20688-013A AC ADAPTER,AP-V10EG
! 13 LY31174-006A BATTERY PACK,BN-V507U
14 LY32142-001A JACK BOX,CU-V506,C,D,E
LY32142-002A JACK BOX,CU-V505,A,B
15 LY20750-001A REMOTE CONTROL UNIT,RM-V717U
16 – BATTERY,AAA(R03),X2
17 QPA01703005 POLY BAG,A,B
18 QAM0347-001 CABLE ASSY,AUDIO/VIDEO CABLE
19 QQR0918-002 CORE FILTER,A,B
20 PEAC0428-150 CABLE ASSY,EDITING CABLE,C,D,E
QAM0214-001 RM(EDITING)CABLE,A,B
21 QQR0491-002 CORE FILTER,A,B
22 QAM0084-001 PC CONNECTION CABLE,A,B
23 QQR0918-002 CORE FILTER,A,B
24 QQR0491-002 CORE FILTER,A,B
! 25 LYT0760-001A INST.BOOK(SOFT.5LANG),C,E
! LYT0760-002A INST.BOOK(SOFT.5LANG),C,E
! LYT0760-003A INST.BOOK(SOFT.RU),C,E
! LYT0761-001A INST.BOOK(SOFT.EN),D
! LYT0737-001A INST.BOOK(SOFT.5LANG),A
! LYT0737-002A INST.BOOK(SOFT.5LANG),A
! LYT0737-003A INST.BOOK(SOFT.RU),A
26 QAM0322-001 USB CABLE,C,D,E
27 QAM0262-002 MEMORY CARD,C,D,E
! 28 QMPL120-190-JR POWER CORD,A,C,E
! QMPP110-190-JR POWER CORD,B,D
29 QAM0302-001 ADAPTOR PLUG,CABLE ADAPTER
30 LYT0760-004A SHEET(ATT.),C,D,E

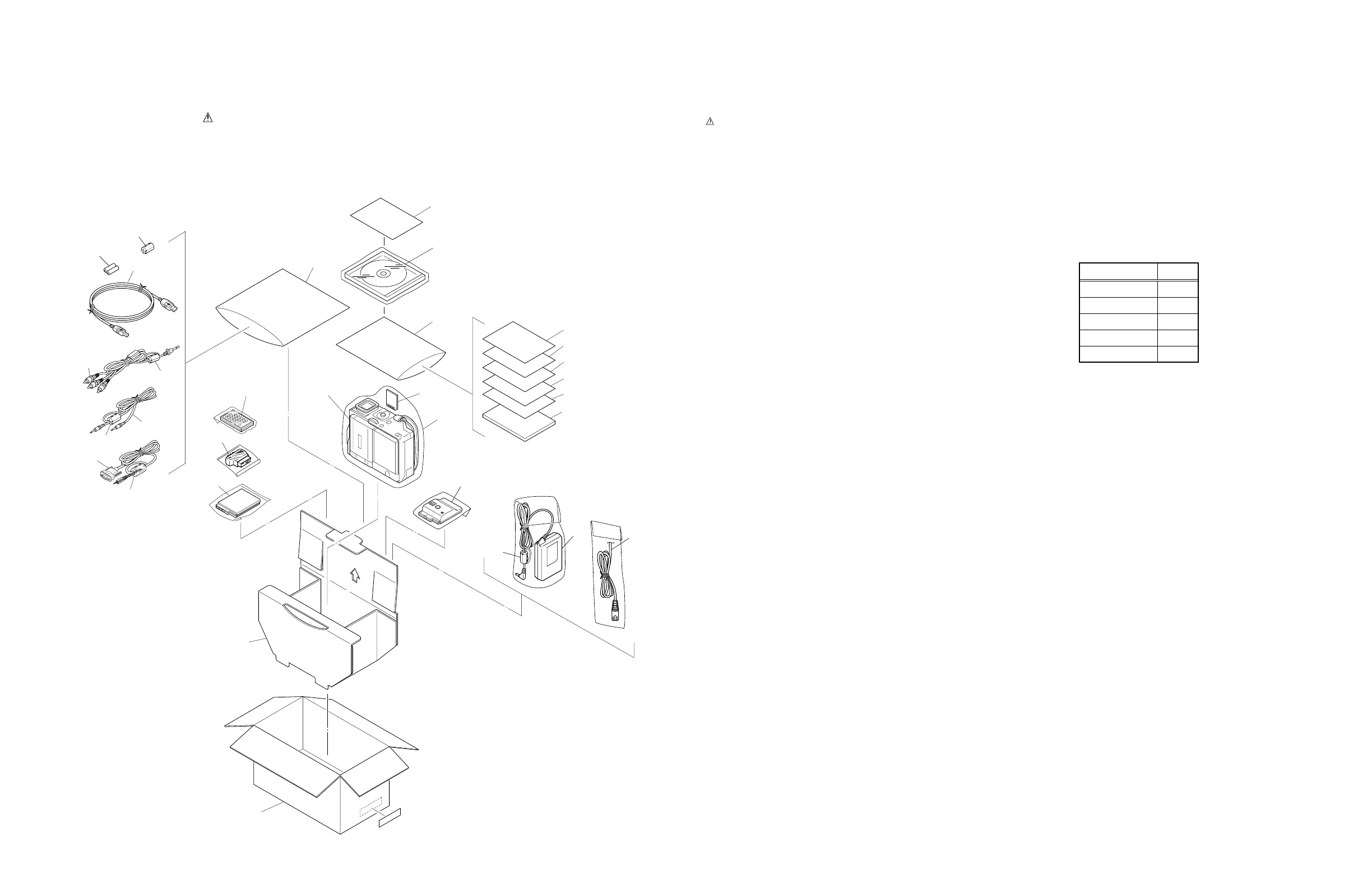

5.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
5-1 5-2
5
1
2
4
FINAL ASSY
<M2>
6
25
7
8
30
9
LABEL
(SERIAL)
27
3
17
20
21
23
22
26
13
15
16
11
14
28
29
24
19
18
12
10
• INSTRUCTIONS
EN ....... ENGLISH
GE ...... GERMAN
FR ....... FRENCH
DU ...... DUTCH
SP ....... SPANISH
IT ........ ITALIAN
DA ....... DANISH
FI ........ FINNISH
SW ...... SWEDISH
NO ...... NORWEGIAN
RU ....... RUSSIAN
CZ ....... CZECH
PO ...... POLISH
HU ...... HUNGARIAN
MODEL MARK
GR-DVX44EG A
GR-DVX44EK B
GR-DVX77EG C
GR-DVX77EK D
GR-DVX88EG E
