EN 5
CONNECT RECORDER TO
TV
1
a– Connect the aerial, recorder and TV as per "RF
CONNECTION" ( pg. 4).
b– Connect the recorder's S VIDEO OUT connector to
the TV's S-VIDEO IN connector.
c– Connect the recorder's AUDIO OUT connectors to
the TV's AUDIO IN connectors.
CONNECT RECORDER TO
MAINS
2
Plug the end of the mains power cord into a mains
outlet.
●

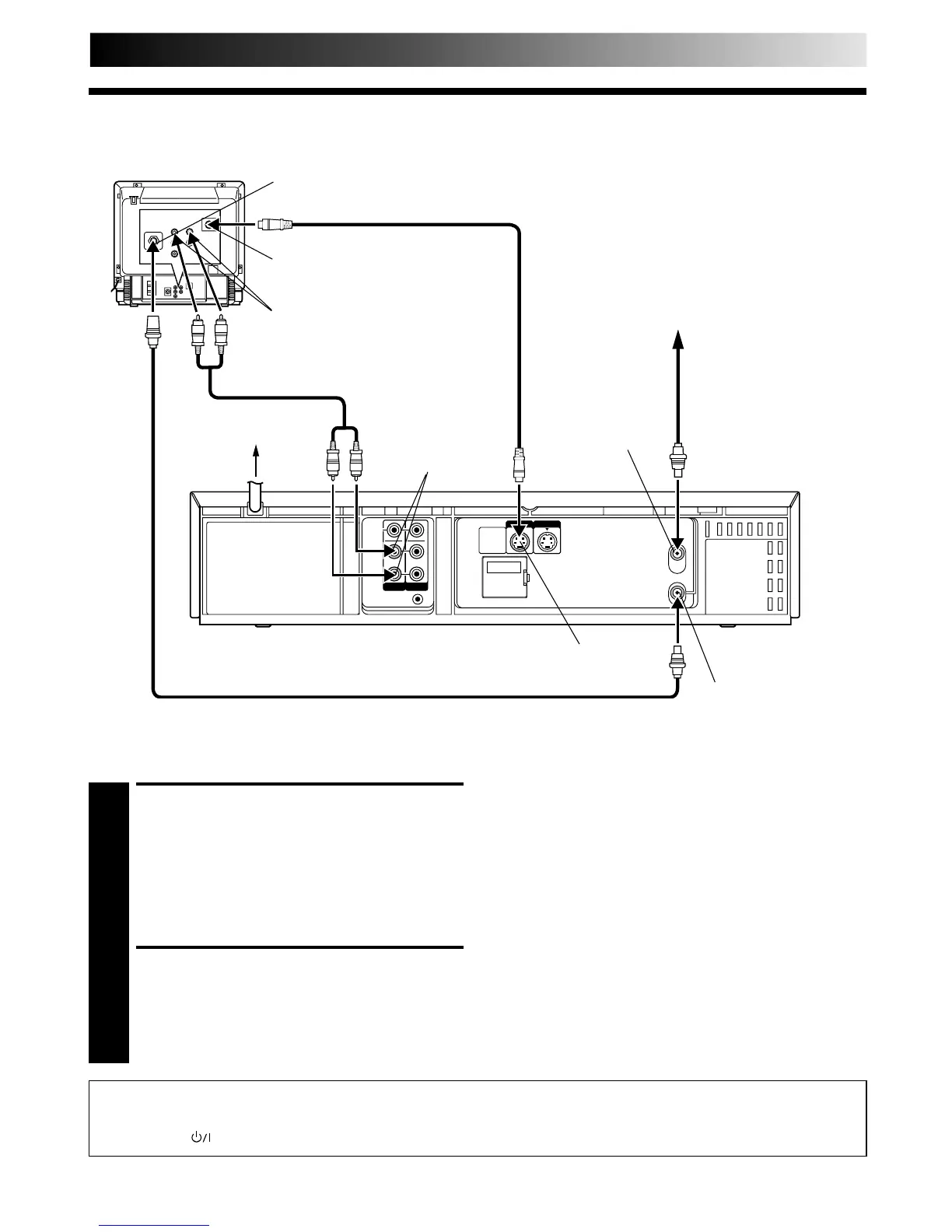

To Connect to A TV With S-VIDEO/AUDIO IN Connectors . . .
S-VIDEO Connection
Mains outlet
Mains Power
Cord
AUDIO OUT
ANT. IN
RF OUT
Aerial or Cable
RF Cable (provided)
Back of TV
S-Video cable (provided)
Audio cable (not provided)
S VIDEO OUT
NOTES:
●
You can obtain high-quality S-VHS pictures.
●
If your television is not stereo-capable, use the recorder's
AUDIO OUT connectors to connect to an audio amplifier for
Hi-Fi stereo sound reproduction. (
pg. 38)
●
To operate the recorder with your TV using the S-VIDEO
connection, set your TV to the VIDEO (or AV mode).
●
For switching the TV's mode, refer to the instruction manual
of your television.
AUDIO IN
connectors
S-VIDEO IN
connector
Aerial terminal
ATTENTION
If you have finished all the necessary connections, go to "Video Channel Set" on page 6, then perform Auto Set Up on page 8; do
NOT press the button on the recorder/remote control to turn on the recorder's power before you start Auto Set Up.
Back of Recorder
