JVC HX-C6 Service Manual

1-10 (No.MB366)
3.1.3 Removing the tuner
(See Figs.8 and 9.)
• Remove the metal cover.
(1) From the left side of the main body, disconnect the card
wire from the connector on the tuner. (See Fig.8.)
(2) From the back side of the main body, remove the two
screws D attaching the tuner to the rear panel. (See Fig.9.)

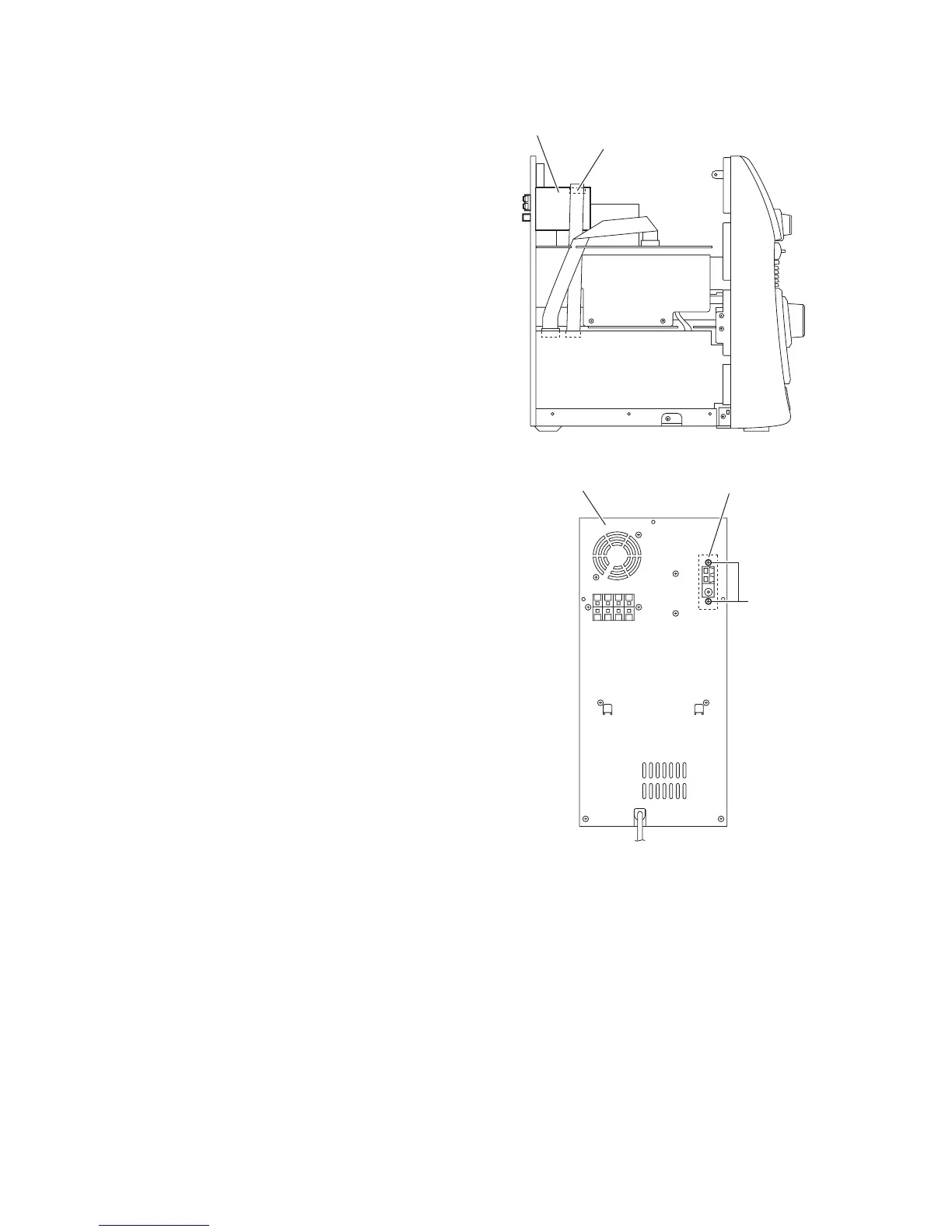

Fig.8
Fig.9
Tuner
Connector
Rear panel
D
Tuner
