3.2 Speaker section
3.2.1 Removing the side panel assembly
(See Fig.1)
(1) From the side of the speaker main body, remove the four
screws A attaching the side panel assembly.
(2) Insert the tip of a flat-bladed screwdriver or similar tool into
the space between the speaker main body and side panel
assembly, and lift the side panel assembly little by little to
remove the joint sections a.
Note:
To prevent damaging the side panel assembly and speaker
main body, insert cushioning plates etc. into the space be-
tween the speaker main body and side panel assembly.

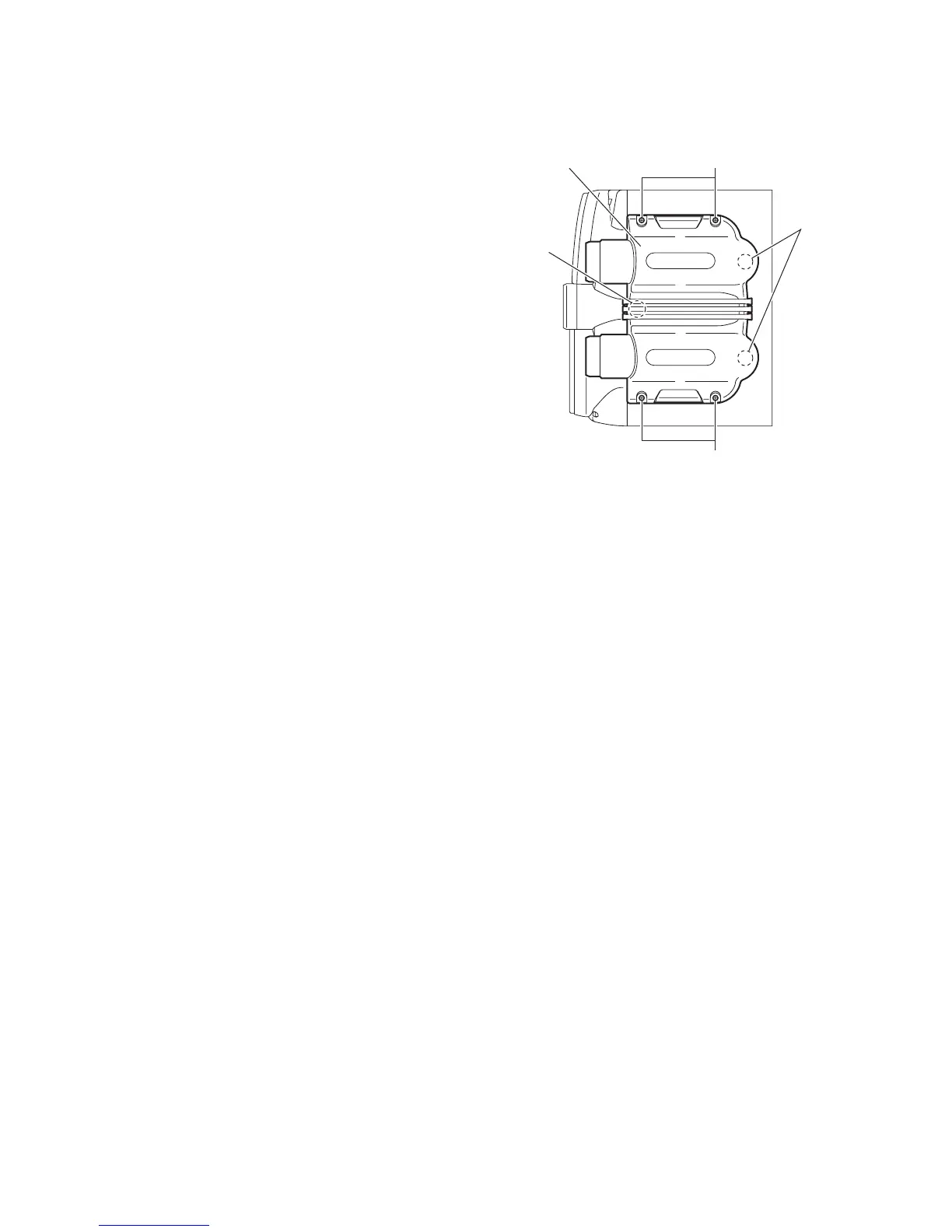

Fig.1
A
A
a
a
Side panel assembly
