JVC HX-C6

1-20 (No.MB366)
3.2.4 Removing the top woofer
(See Fig.4)
• Remove the front panel assembly.
Reference:
Remove the side panel assembly as required.
(1) Remove the four screws C attaching the top woofer.
(2) Take out the top woofer from the speaker main body and
disconnect the wires (blue/black and black wires) from the
terminal on the back side of the top woofer.
3.2.5 Removing the bottom woofer
(See Fig.4)
• Remove the front panel assembly.
Reference:
Remove the side panel assembly as required.
(1) Remove the four screws C attaching the bottom woofer.
(2) Take out the bottom woofer from the speaker main body
and disconnect the wires (red and black wires) from the ter-
minal on the back side of the bottom woofer.

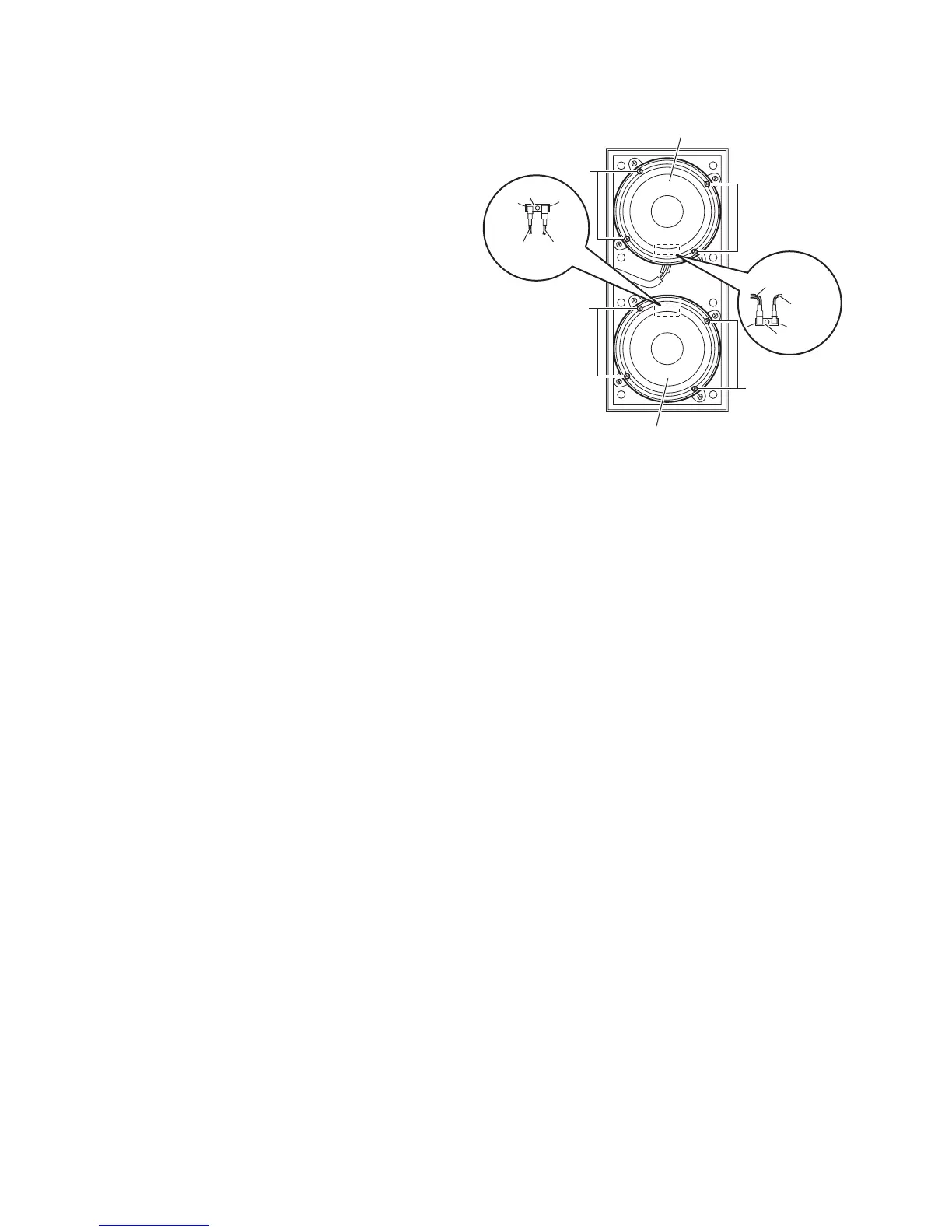

Fig.4
Blue/black
wire
Black
wire
Terminal
Terminal
Black
wire
Red
wire
C
C
C
C
Top woofer
Bottom woofer
