1-12
HX-Z1R

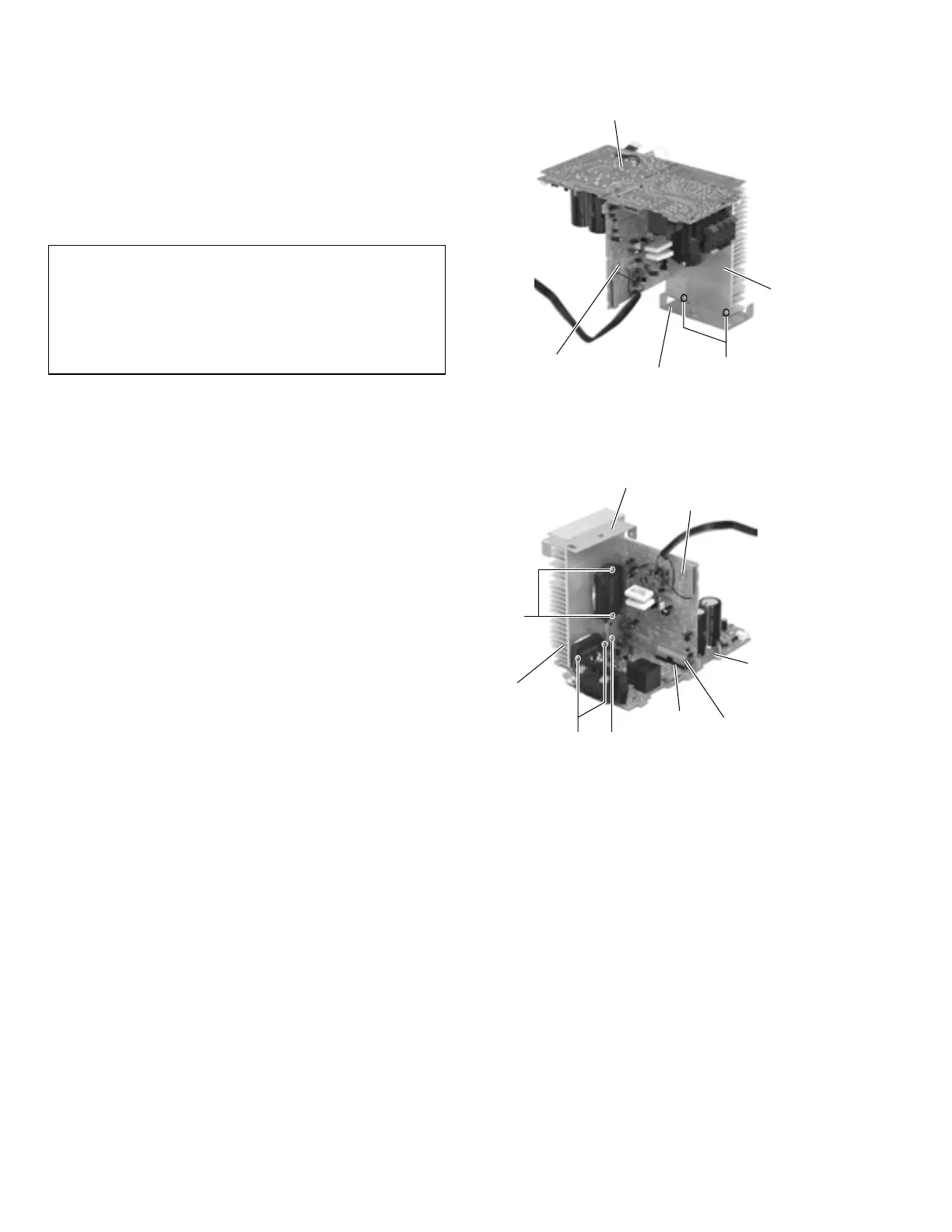

Remove the two screws J attaching the heat sink
bracket.
Remove the two screws M, detach bridge board from
regulator board by disconnect connector CN205.
Remove the screws K and L to detach regulator
board from heat sink.
7.
8.
9.
As assembly back the regulator board and
bridge board to heat sink.
Regulator board MUST be assembly to heat
sink first and screw K and L MUST be
screwed before bridge board attach to
regulator board.
CAUTION:
Heat sink bracket
Heat sink bracket
Fig.26
Fig.27
Heat sink
Heat sink
Bridge board
Bridge board
Regulator board
Regulator board
J
K
ML
CN215
CN205
