HX-Z1R
Prior to performing the following procedure, remove
the metal cover.
Disconnect the card wire from connector CN1 on the
antenna board on the right side of the body.
Remove the band attaching the antenna board.
Remove the two screws F on the rear panel on the
back of the body.
1.
2.
3.

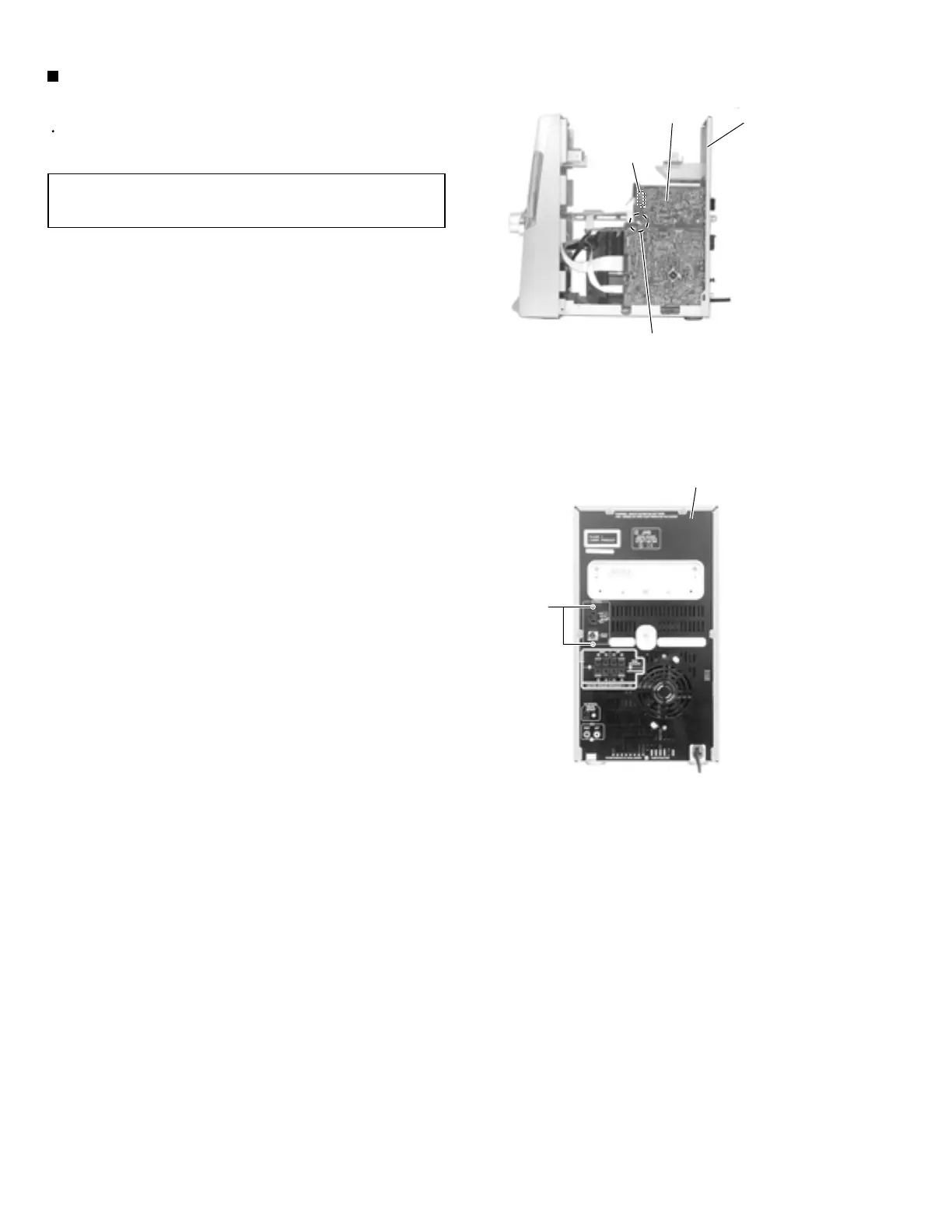

Removing the antenna board
(See Fig.10, 11)
There is no need to remove the CD
changer mechanism assembly.
REFERENCE:
Fig.10
Fig.11
Rear panel
Rear panel
CN1
Antenna board
Band
F
