JVC KD-AR260

1-28 (No.MA111)

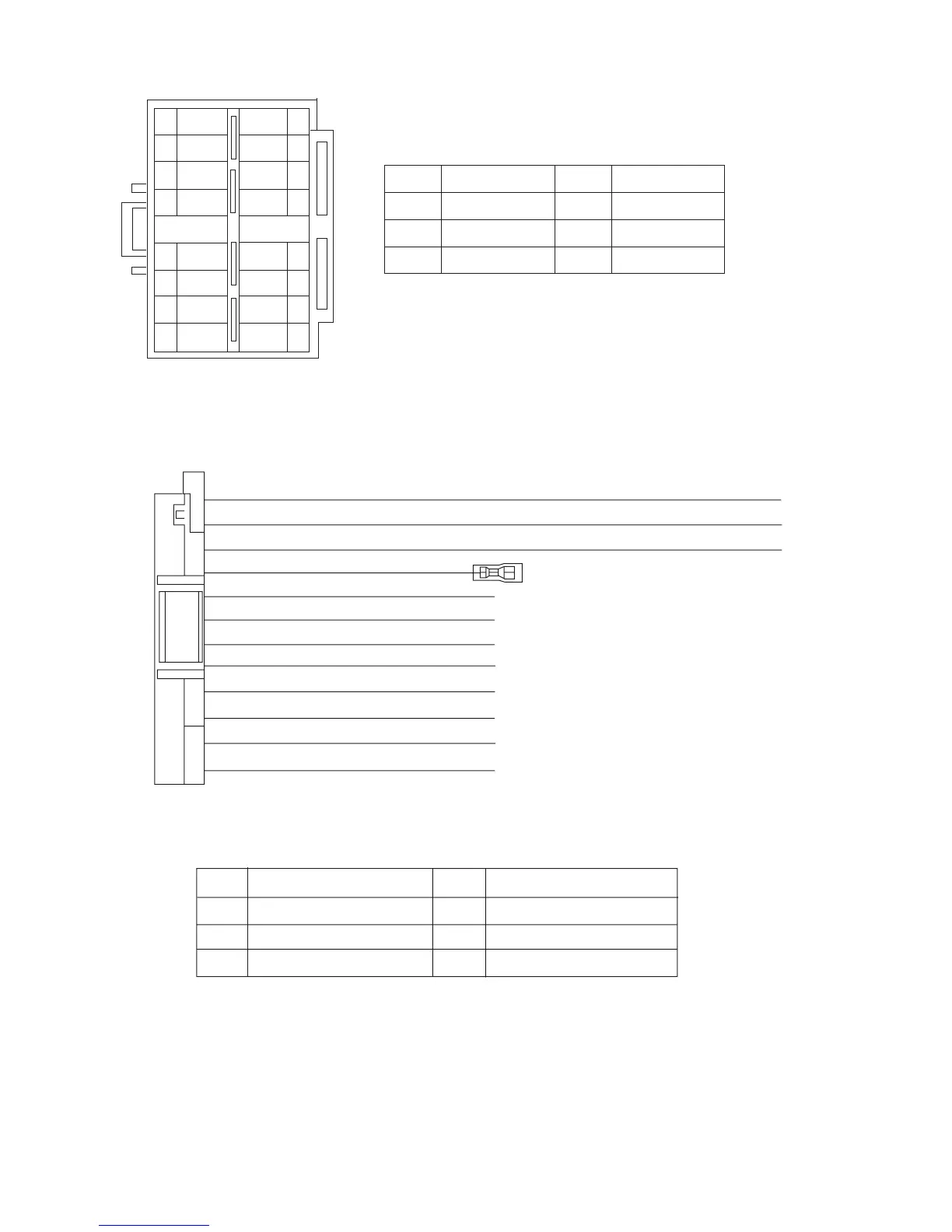

5.8 16 PIN CORD DIAGRAM
8
7
6
5
4
3
2
1
GY
VI
GN
WH
BL/WH
NC
RD
BK
16
15
14
13
12
11
10
9
YL
GY/BK
VI/BK
GN/BK
WH/BK
NC
NC
NC
Black
RD
BK
Red
BL
Blue
WH
White
GN
Green
VI
Violet
GY
Gray
Yellow
RR
FR
FL
RL
REMOTE
ACC
GND
MEMORY
Rear Right
Front Right
Front Left
Rear Left
Remote out
ACC Line
Ground
Memory Backup Battery +
16 YL
MEMORY
8 BK
GND
7 RD
ACC
5 BL/WH REMOTE
4 WH
FL+
12 WH/BK
FL-
3 GN
RL+
11 GN/BK RL-
2 VI RR+
10 VI/BK
RR-
1 GY FR+
9 GY/BK
FR-
YL
