1-14 (No.MA046)
3.2.5 Reattaching the clamper unit
(See Figs.5 to 9)
(1) From the bottom of the mechanism section, attach the
clamper spring2 to the clamper unit. (See Figs.5 and 7)
(2) Move the clamper unit to set the side joints f and g to each
boss of the chassis base. (See Fig.5)
(3) Make sure that part h is inserted to the notch of the chassis
base. (See Figs.5 and 8)
(4) Move the clamper spring to the outside of the bending part
of the chassis base. (See Fig.9)
Caution:
When reattaching the clamper unit, temporarily hook the end
of the clamper spring as shown in the figure to make the work
easy. (See Fig.9)

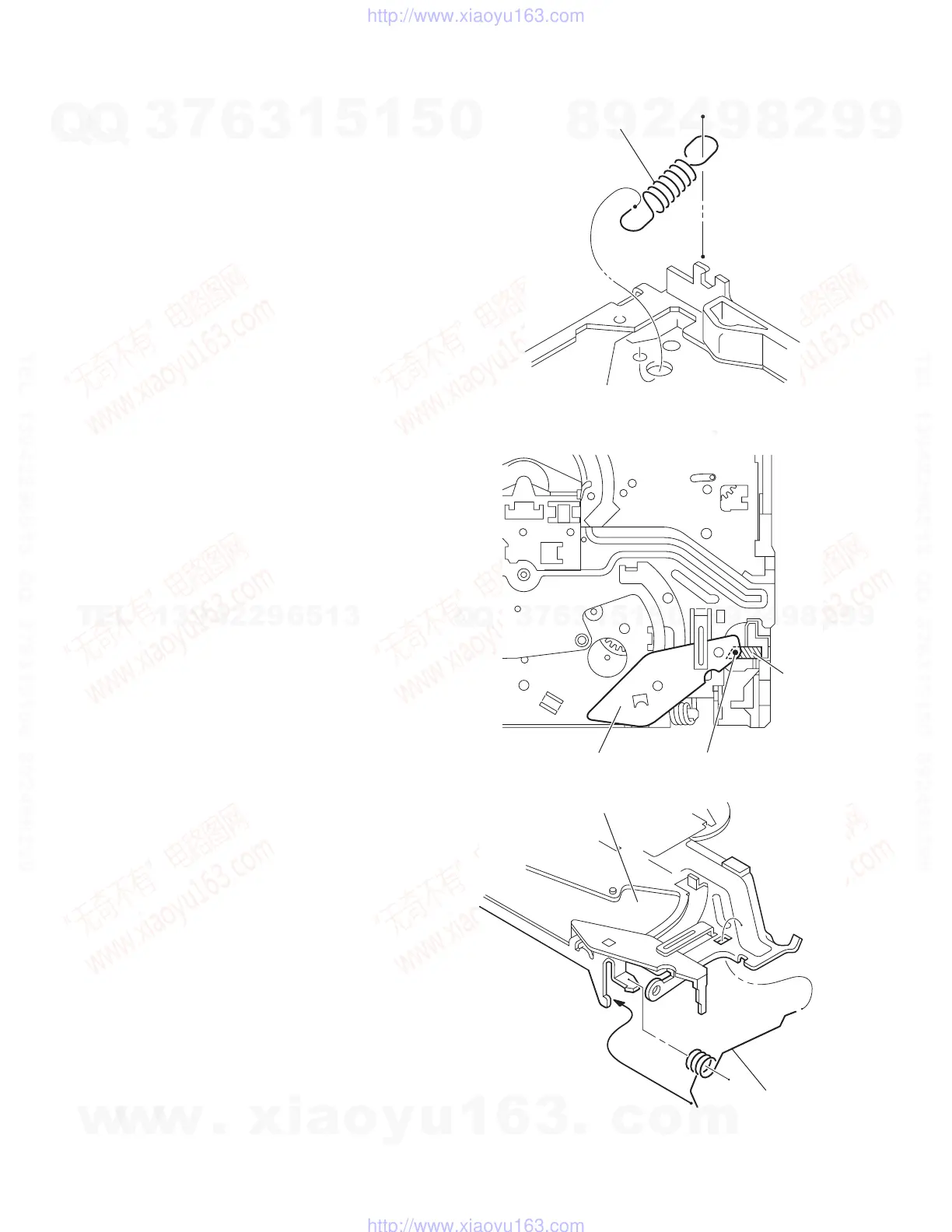

Fig.7
Fig.8
Fig.9
Chassis base
Clamper2 spring
Notch
Part h
Clamper unit
Clamper unit
Clamper spring
