(No.MA046)1-17
3.2.8 Removing the rod (L)(R) and roller assembly
(See Figs.15 and 16)
• Prior to performing the following procedures, remove the top
cover, mechanism section, front unit and loading arm S.A.
(1) From the bottom side of the loading arm S.A., release the
rod (L) and (R) from the joints r. (See Fig.15)
(2) Remove the roller assembly from the loading assembly.
(See Fig.16)
(3) Remove the two collars and washer from the roller assem-
bly. (See Fig.16)
Caution:
After attaching the roller assembly to the loading arm S.A., at-
tach the rod (L) and (R). Attach the rods to the right and left col-
lars of the roller. (See Fig.15)

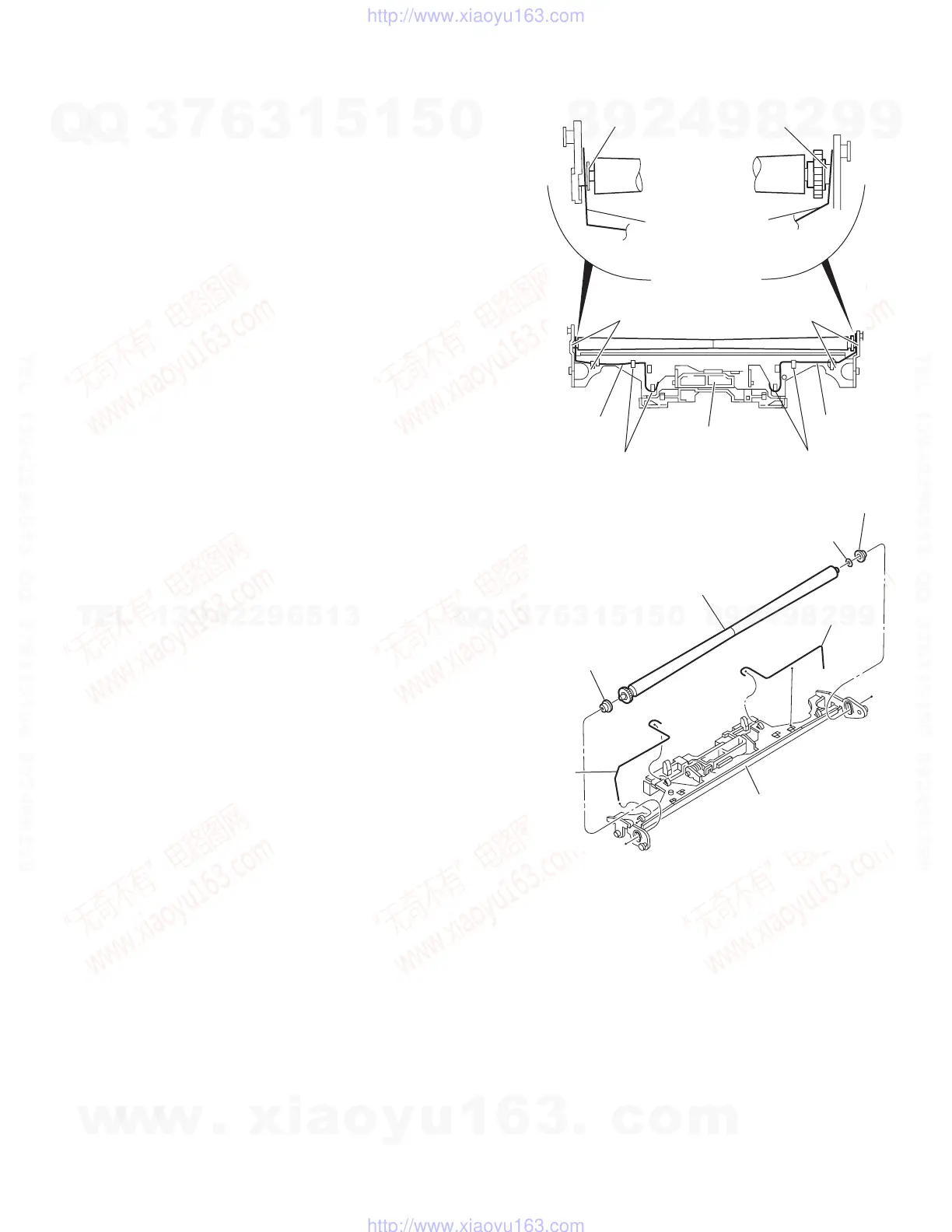

Fig.15
Fig.16
Joints r
Joints r
Joints r
Joints r
Rod(R)
Loading arm S.A.
Rod(L)
Collar
Collar
Rod(R) Rod(L)
Roller assembly
Washer
Collar
Collar
Rod(L)
Loading arm S.A.
Rod(R)
