VIDEO IN
LINE IN
KD-AVX11
DIGITAL OUT
VIDEO OUT
Connections for external component playback
A
Video cord (not supplied)
External component
Camcorder, rear view
camera, etc.

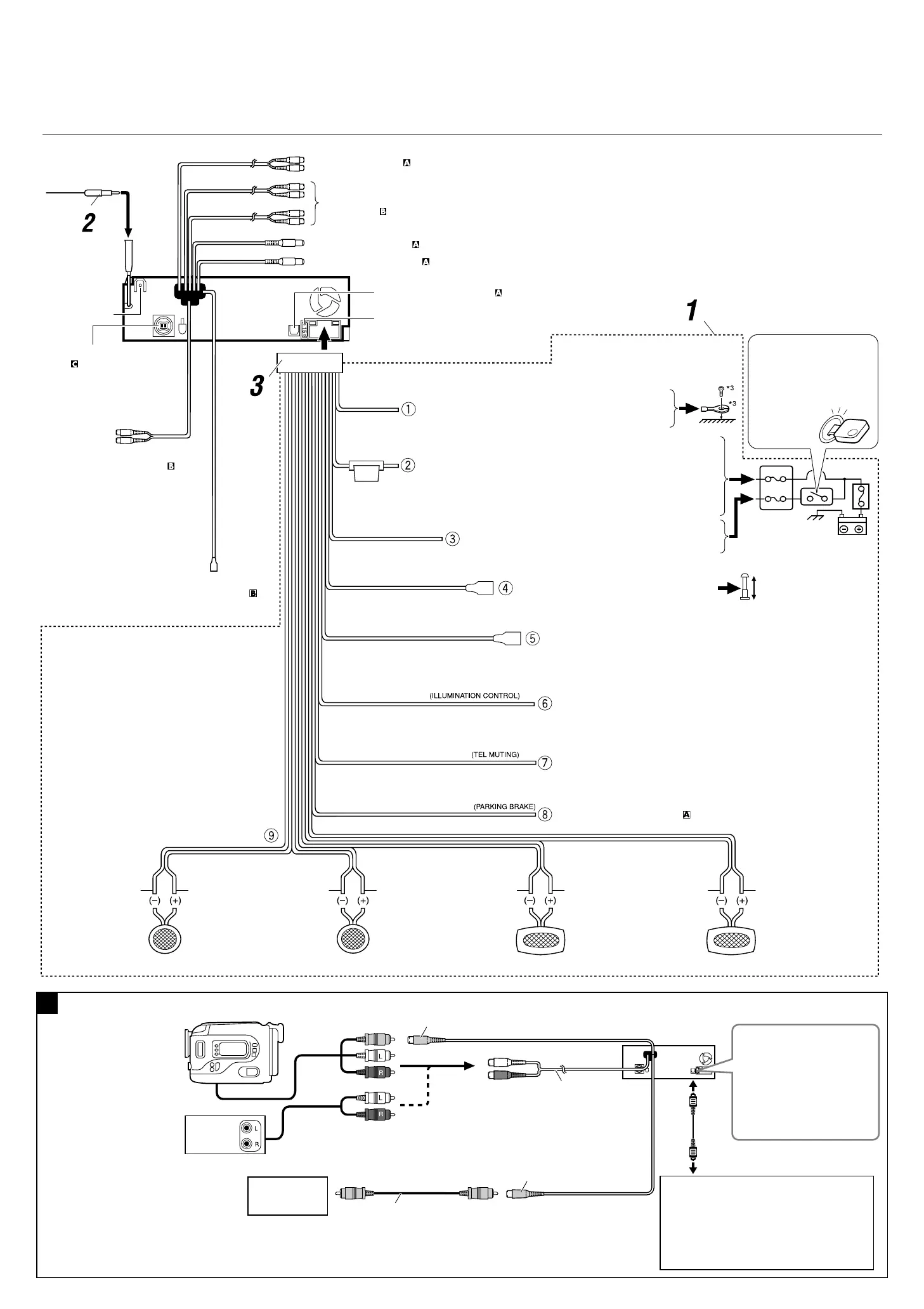

Typical connections
Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this unit.
The leads of the power cord and those of the connector from the car body may be different in color.
1 Connect the colored leads of the power cord in the order specified in the illustration below.
2 Connect the antenna cord.
3 Finally connect the wiring harness to the unit.
3
External monitor
Audio/video control amplifier or the decoder
compatible with the multichannel digital sources
See page 49 of the
INSTRUCTIONS.
SUBWOOFER
(see diagram
)
15 A fuse
Rear ground
terminal
LINE OUT (FRONT/REAR)
(see diagram
)
To an external component (see
diagram
)
*
3
Not included for this unit
Ignition switch
Fuse block
To metallic body or chassis of the car
To a live terminal in the fuse block connecting to the car battery (bypassing
the ignition switch) (constant 12 V)
To an accessory terminal in the fuse block
To car light control switch
To cellular phone system
To parking brake (see diagram
)
Black
Yellow *
4
Red
Blue with white stripe
Orange with white stripe
Brown
Light green
LINE IN (see diagram
)
VIDEO IN (see diagram
)
REVERSE GEAR SIGNAL
(see diagram
)
VIDEO OUT (see diagram
)
To the remote lead of other equipment (200 mA max.)
*
4
Before checking the operation of this unit prior to
installation, this lead must be connected, otherwise power
cannot be turned on.
DIGITAL OUT (see diagram )
To automatic antenna if any (250 mA max.)
Blue
White with black
stripe
White Gray with black stripe Gray Green with black stripe
Green Purple with black stripe Purple
Left speaker (front) Right speaker (front)
Left speaker (rear) Right speaker (rear)
