KS-U58*
9
KD-AVX11
LINE OUT (REAR)
SUBWOOFER
LINE OUT (FRONT)
B

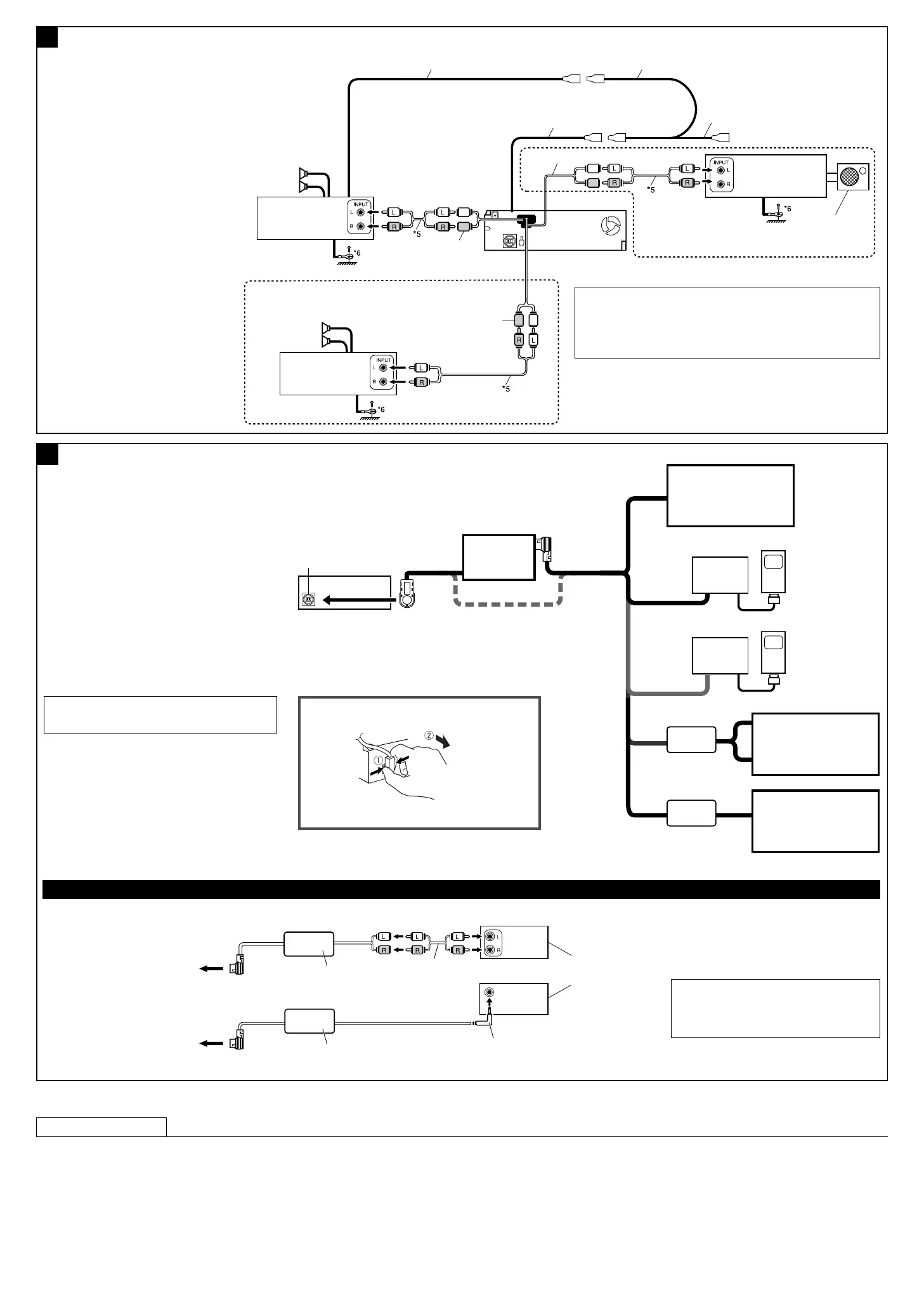

Connecting the external amplifiers
You can connect amplifiers to upgrade your car
stereo system.
• Connect the remote lead (blue with white
stripe) to the remote lead of the other
equipment so that it can be controlled through
this unit.
• For amplifier only:
– Disconnect the speakers from this unit,
connect them to the amplifier. Leave the
speaker leads of this unit unused.
– You can switch off the built-in amplifier
and send the audio signals only to the
external amplifier(s) to get clear sounds and
to prevent internal heat built-up inside the
unit. See page 40 of the INSTRUCTIONS
(separate volume).
*
5
Audio cord (not supplied)
*
6
Firmly attach the ground lead to the metallic body or to the chassis of the
car—to the place uncoated with paint (if coated with paint, remove the paint
before attaching the lead). Failure to do so may cause damage to the unit.
C
Other external component
External component
Connecting external components
Remote lead
JVC Amplifier
Remote lead (Blue with white stripe)
To the remote lead of other equipment
Y-connector (not supplied for this unit)
Subwoofer
Rear speakers
Front speakers
3.5 mm stereo mini plug
To disconnect the connector
Hold the connector top tightly (1), then pull it out (2).
4
iPod is a trademark of Apple Computer, Inc., registered
in the U.S. and other countries.
JVC Amplifier
JVC Amplifier
JVC CD changer
*
8
Line Input Adapter KS-U57 (separately purchased)
*
9
Aux Input Adapter KS-U58 (separately purchased)
*
10
Audio cord (not supplied)
You can connect external components in series
as shown in the diagram below.
• All the components, adapters or signal cords
need to be purchased separately.
CAUTION:
Before connecting the external components,
make sure that the unit is turned off.
• To use JVC CD changer, Apple iPod or
JVC D. player, set “External Input” to
“Changer/iPod/D. Player” (see page 39 of
the INSTRUCTIONS).
• To use other external components via
KS-U57 or KS-U58, set “External Input”
to “External Input” (see page 39 of the
INSTRUCTIONS)
External component
KS-U57
KS-U58
KS-BTA200*
7
KS-PD100
KS-PD500
To KS-BTA200 or KD-AVX11
KS-U57*
8
or
or
or
CD changer jack
• The fuse blows.
* Are the red and black leads connected correctly?
• Power cannot be turned on.
* Is the yellow lead connected?
• No sound from the speakers.
* Is the speaker output lead short-circuited?
• Sound is distorted.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?
Apple iPod
JVC D. Player
*
10
*
7
Bluetooth Adapter KS-BTA200
(separately purchased)
External component
TROUBLESHOOTING
• Noise interfere with sounds.
* Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?
• Unit becomes hot.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?
• This unit does not work at all.
* Have you reset your unit?
or
