JVC KD-AVX2J - Page 9

(No.MA254)1-9

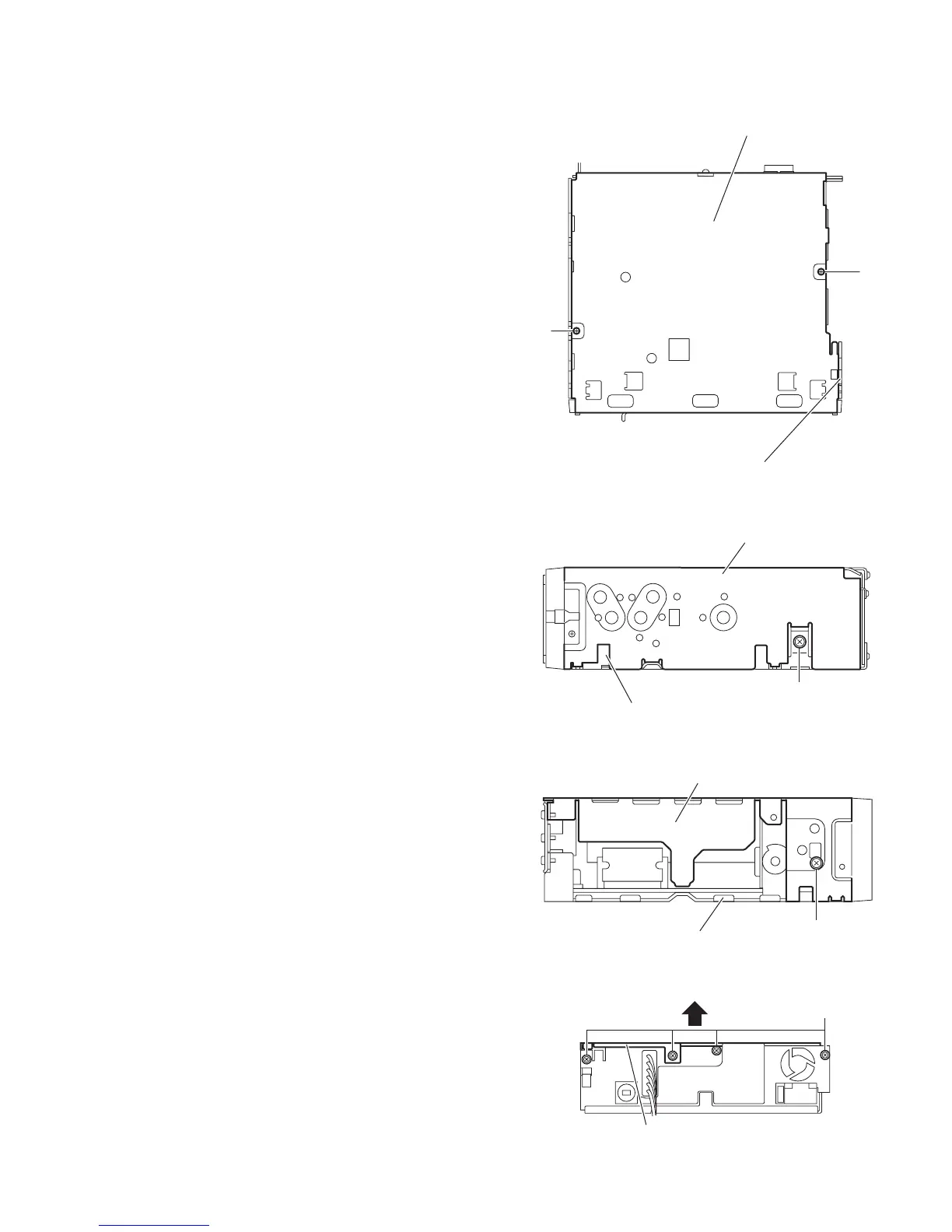

3.1.3 Removing the top chassis assembly
(See Figs.3 to 6)
• Remove the panel assembly and side heat sink.
(1) From the top side of the main body, remove the two screws
C attaching the top chassis assembly. (See Fig.3.)
(2) From the both sides of the main body, remove the two
screws D attaching the top chassis assembly. (See Figs.4
and 5.)
(3) From the back side of the main body, remove the four
screws E attaching the top chassis assembly. (See Fig.6.)
(4) Lift the top chassis assembly in the direction of the arrow.
(See Fig.6.)
(5) Take out the top chassis assembly from the main body.
Fig.3
Fig.4
Fig.5
Fig.6
Top chassis assembly
C
C
Bottom chassis assembly
Bottom chassis assembly
Top chassis assembly
D
Bottom chassis assembly
Top chassis assembly
D
Top chassis assembly
E
