JVC KD-AVX2J - Top Chassis Assembly Fig

1-10 (No.MA254)
3.1.4 Removing the front chassis assembly
(See Fig.7 and 8)
• Remove the panel assembly, side heat sink and top chassis
assembly.
(1) From the both sides of the top chassis assembly, remove
the two screws E attaching the front chassis assembly.
(See Fig.7 and 8.)
(2) Remove the front chassis assembly from the top chassis
assembly.

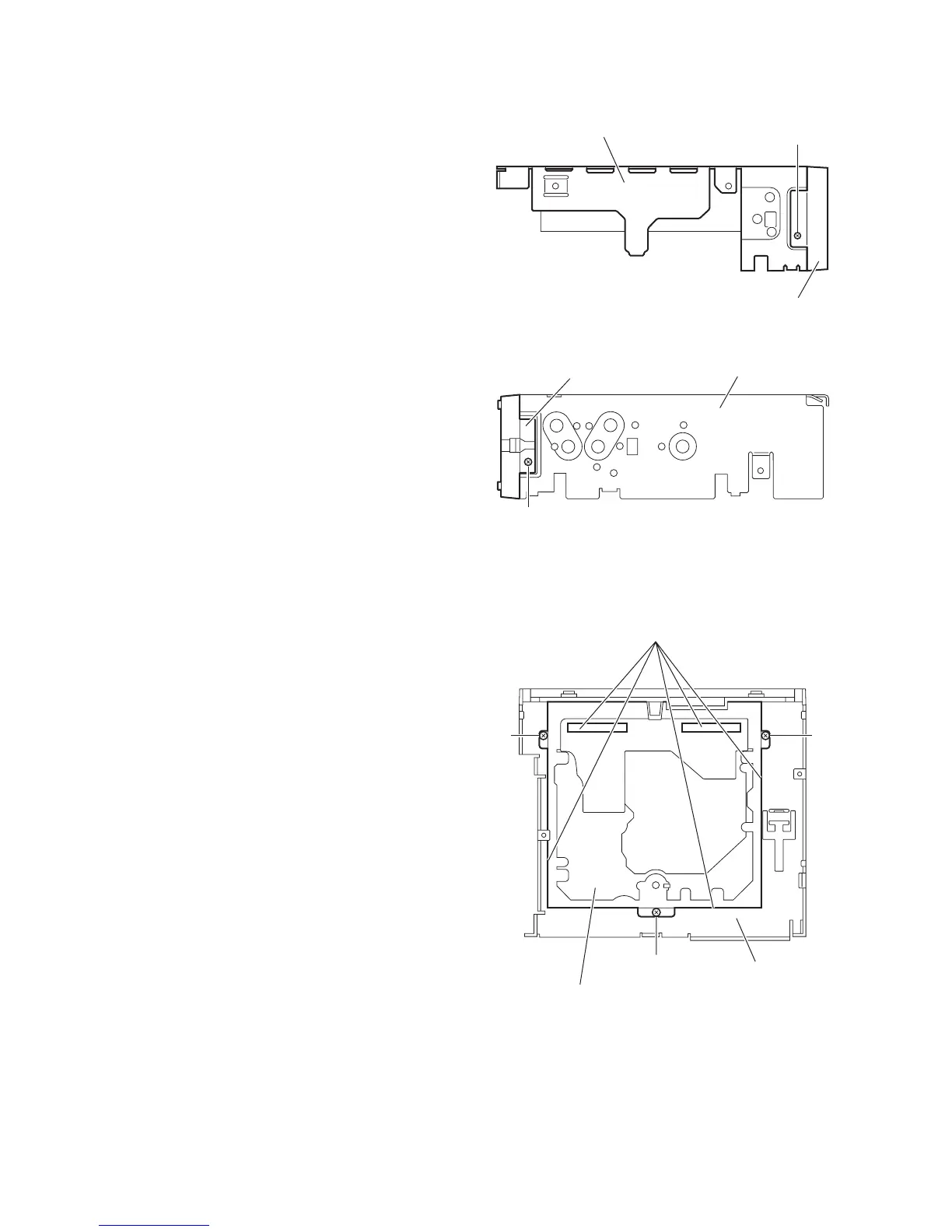

Fig.7
Fig.8
3.1.5 Removing the DVD mechanism assembly
(See Figs.9)
• Remove the panel assembly, side heat sink and top chassis
assembly.
Reference:
Remove the front chassis assembly as required.
(1) From the inside of the top chassis assembly, remove the
three screws G attaching the DVD mechanism assembly
and take out the DVD mechanism assembly.
(2) From the side of the DVD mechanism assembly, remove
the double-stick tape fixing the insulator.
(3) Remove the insulator from the top chassis assembly.
Fig.9
F
Front chassis assembly
Top chassis assembly
Top chassis assembly
Front chassis assembly
F
DVD mechanism assembly
Top chassis assembly
Double stick tape
G
G
G
