JVC KD-AVX2J - Page 11

(No.MA254)1-11
3.1.6 Removing the connection control board
(See Fig.10)
• Remove the panel assembly, side heat sink, top chassis as-
sembly and DVD mechanism assembly.
(1) From the top side of the DVD mechanism assembly, re-
lease the lock of the connector CN965
on the connection
control board and disconnect the card wire.
(2) Remove the two screws H attaching the connection control
board on the DVD mechanism assembly and remove the
connection control board.

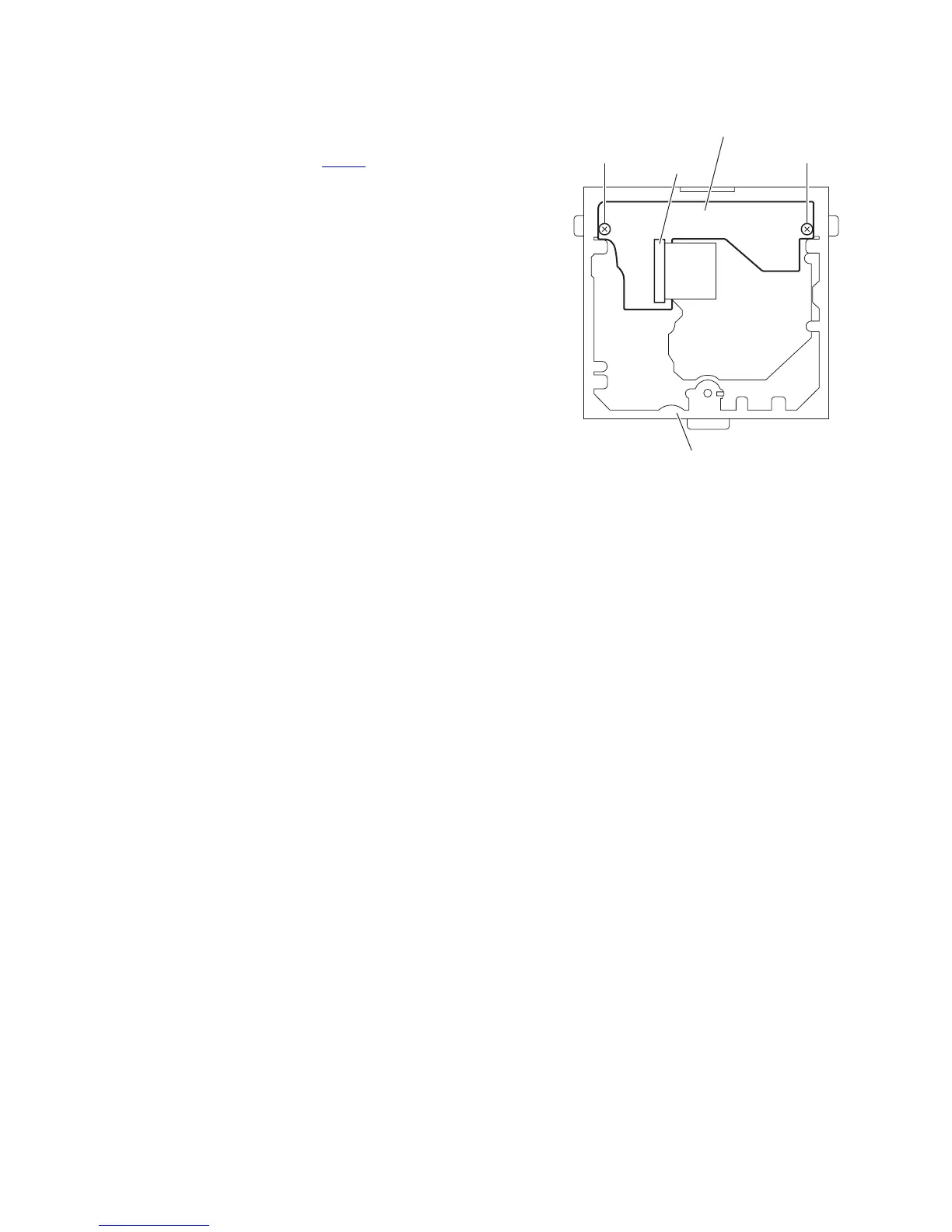

Fig.10
DVD mechanism assembly
CN965
Connection control board
HH
