JVC KD-AVX77 Specifications

2010 JVC Product Tech Guide

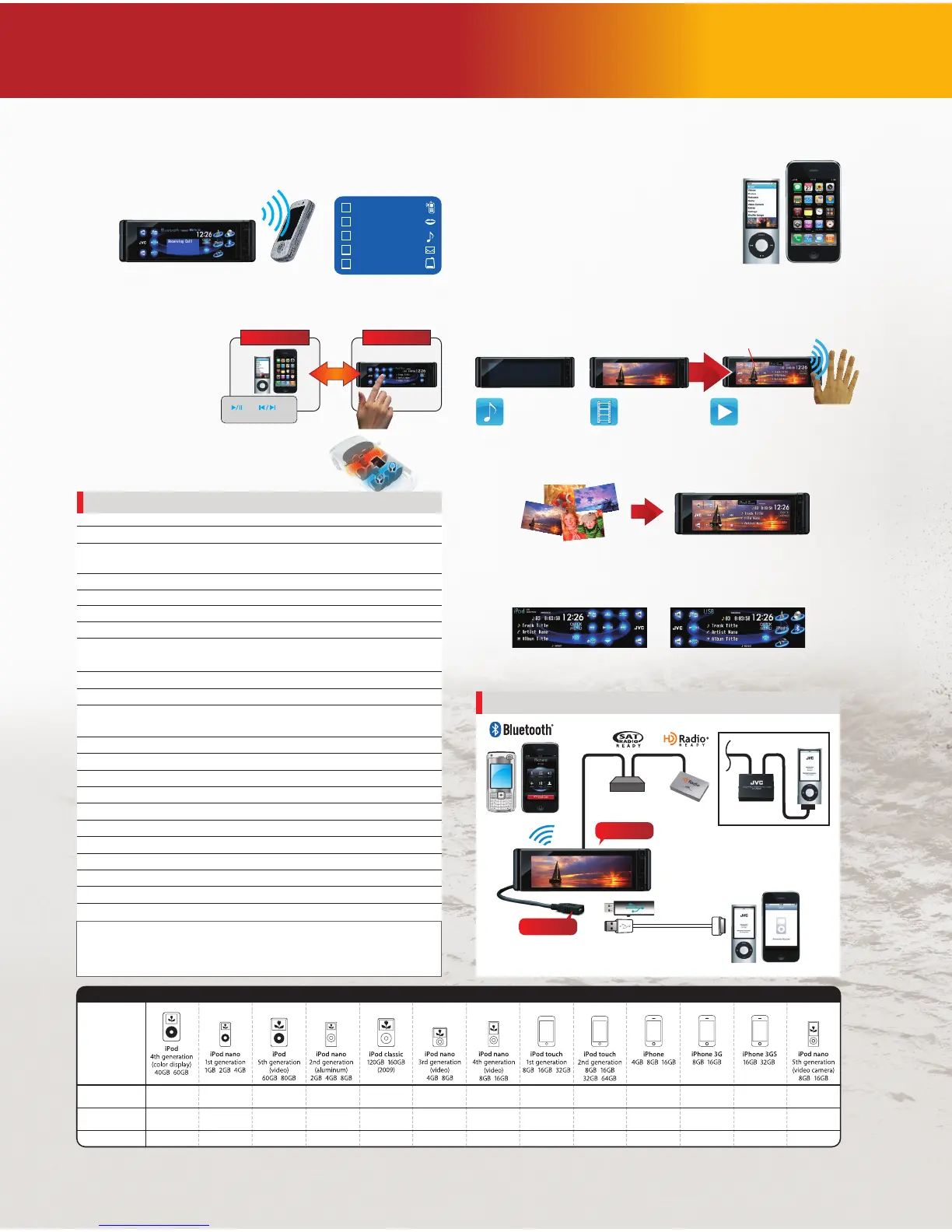

C M Y K
KD-AVX77
✹Dual-Zone
The front and rear passengers can enjoy separate
entertainment at the same time, such as radio and DVD.
KD-AVX77
Bluetooth
®
Wireless Technology DVD/CD/USB Receiver
with Ultra-Widescreen Monitor and Proximity Sensor
NTK-0673-05
✹USB Connection (G3 iPod/iPhone Audio)
Enjoy digital audio/video from your iPod, iPhone, or USB
devices at full-speed transfer (USB 2.0).
You can also charge your iPod/iPhone.
* USB playback not supported for NTFS formatted devices. When partitions are
created, only the first partition can be read. (Maximum current supply 0.5A)
** DivX
®
files must be less than 2Mbps for playback on USB
*** For iPod/iPhone video playback, KS-U30 cables are required. Please visit
www.jvc.co.jp/english/car/ for iPod/iPhone compatibility details.
✹2-Way Control for iPod/iPhone
The 2-way control for iPod/iPhone lets you easily operate on your iPod/iPhone or
the headunit. The basic functions can be controlled on the headunit even during
iPod/iPhone mode. The song
information is shown on the
display for both modes.
* Compatibility with 2-way control for
iPod/iPhone differs by model. Please visit
www.jvc.co.jp/english/car/ for details.
Headunit ModeiPod/iPhone Mode
•Headunit Direct Control
PLAY/PAUSE SKIP/FORWARD
Switchable
Connections
KT-HD300
USB Memory
J-BUS
Rear USB
KS-PD100
iPod
iPod iPhone
Cell phone iPhone
✹Layout Selectable GUI
You can choose to have they keys on the left, right, or split on both sides of
the widescreen.
Single-Side Layout Symmetric Layout
✹Customizable Wallpaper Capture
JPEG pictures or video scenes can be captured for your wallpaper.
✹Proximity Sensor
Keys appear when your hand approaches. You can turn the screen on/off depending
on the setting.
Keys Appears
LCD Monitor Off LCD Monitor On
Lets you concentrate
on the music
Enjoy videos on
the screen
Motion sensor
detects approaching
hand
✹Bluetooth
®
Compatible Functions
In addition to hands-free calling, voice recognition dialing, and audio streaming,
you can transfer up to 100 contact
numbers to the headunit.
Hands-Free Calls
Voice Dialing
Audio Streaming
Text Message Display
Phonebook Transfer
✔
✔
✔
✔
✔
So Many Features!
Cell phone
Maximum Power Output 50W x 4
Continuous Power Output (RMS) 20W RMS X 4CH at 4Ω
* Total Harmonic Distortion ; 1.0% THD* + N
HPF** (Front/Rear) off / 80 / 120 / 150Hz (-12dB/oct)
LPF (Subwoofer) off / 80 / 120 / 150Hz (-12dB/oct)
AV Input ✔ (Gold-Plated)
Video Input (Camera) -
Line Pre-Output Terminals 5 (Front + Rear + Subwoofer +
2nd Audio for Dual Zone)
Center Channel Output ✔ (Gold-Plated)
Second Audio Output ✔ (Gold-Plated)
Subwoofer Output with
Level/Frequency Control
✔ (Gold-Plated)
Subwoofer Output Level 5V
Subwoofer Gain Control 0 - 16dB
Composite Video Output ✔ (Gold-Plated)
Digital Output -
Load Impedance 4Ω (4 - 8Ω allowable)
Pre-Output Level/Impedance 5.0V/20kΩ
Video Output 1.0Vp-p/75Ω
2nd Audio Output 2.5V/20kΩ
Video Input 1.0Vp-p/75Ω
Audio Input 1.5V/20kΩ
Dimentions (W x H x D)
Installation Size 7
3/16”
x 2
1/16”
x 6
5/16”
182 x 52 x 160 mm
Panel Size 7
7/16”
x 2
5/16”
x
1/2”
188 x 58 x 12 mm
Detachable Face Plate 6
11/16”
x 2
5/16”
x
7/8”
169 x 58 x 22 mm
Key Specifications
** Set according to LPF figures.
*1 Please visit http://www.jvc-victor.co.jp/english/car/ipod/ipod_models.html for iPod/iPhone compatibility details. *2 Same compatibility applies for the following 4th generation and earlier iPod models: iPod mini 4GB 6GB, iPod 4th
generation 40GB, and iPod 4th generation (color display) 40GB 60GB. (Playback only for iPod 3rd generation) *3 With J-BUS connection, KS-PD100 may hang up while using iPod nano 2nd generation.
*4 Same compatibility applies for iPod classic 160GB (2007). *5 iPod battery will not be charged via connection with KS-PD100.
Requires
KS-PD100
N/A N/A N/A
✔
USB
✔
USB
✔
USB
✔
USB
✔
USB
✔
USB
✔
USB
✔
USB
✔
USB
✔
USB
✔
USB
✔
USB
✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
✔✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
*
2
*
3
*
4
*
5
Quick Reference for iPod/iPhone Compatibility*
1
Playback
Connection
Battery Charge
2-Way Control
for iPod/iPhone

JVC KD-AVX77 Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WAV, WMA
Tuner type	HS-IV
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Preset stations quantity	24
Product color	Black
Signal-to-Noise Ratio (SNR)	95 dB
Display type	TFT
Display diagonal	5.4 \
RMS rated power	20 W

Weight and Dimensions

Weight	2200 g
Dimensions (WxDxH)	182 x 160 x 52 mm
