1-18 (No.MA158)
3.2.8 Removing the rod (L)(R)/roller assembly
(See Fig.15 and 16)
• Remove the top cover, the mechanism section, the front unit
and the loading arm assembly.
(1) Release the rod (L) and (R) from the joints q at the bottom
of the loading arm assembly (See Fig.15.)
(2) Remove the roller assembly from the loading arm assem-
bly. (See Fig.16.)
(3) Remove the two collars and washer from the roller assem-
bly. (See Fig.16.)
Caution:
After attaching the loading arm assembly to the roller assem-
bly, attach the rod (L) and (R). Attach the rods to the right and
left collars of the roller. (See Fig.15.)
When reattaching the rod (L) and (R) to the loading arm as-
sembly, engage each joint as shown in Fig.15. As joints q of
the rod (L), let the rod through q before reattaching it.

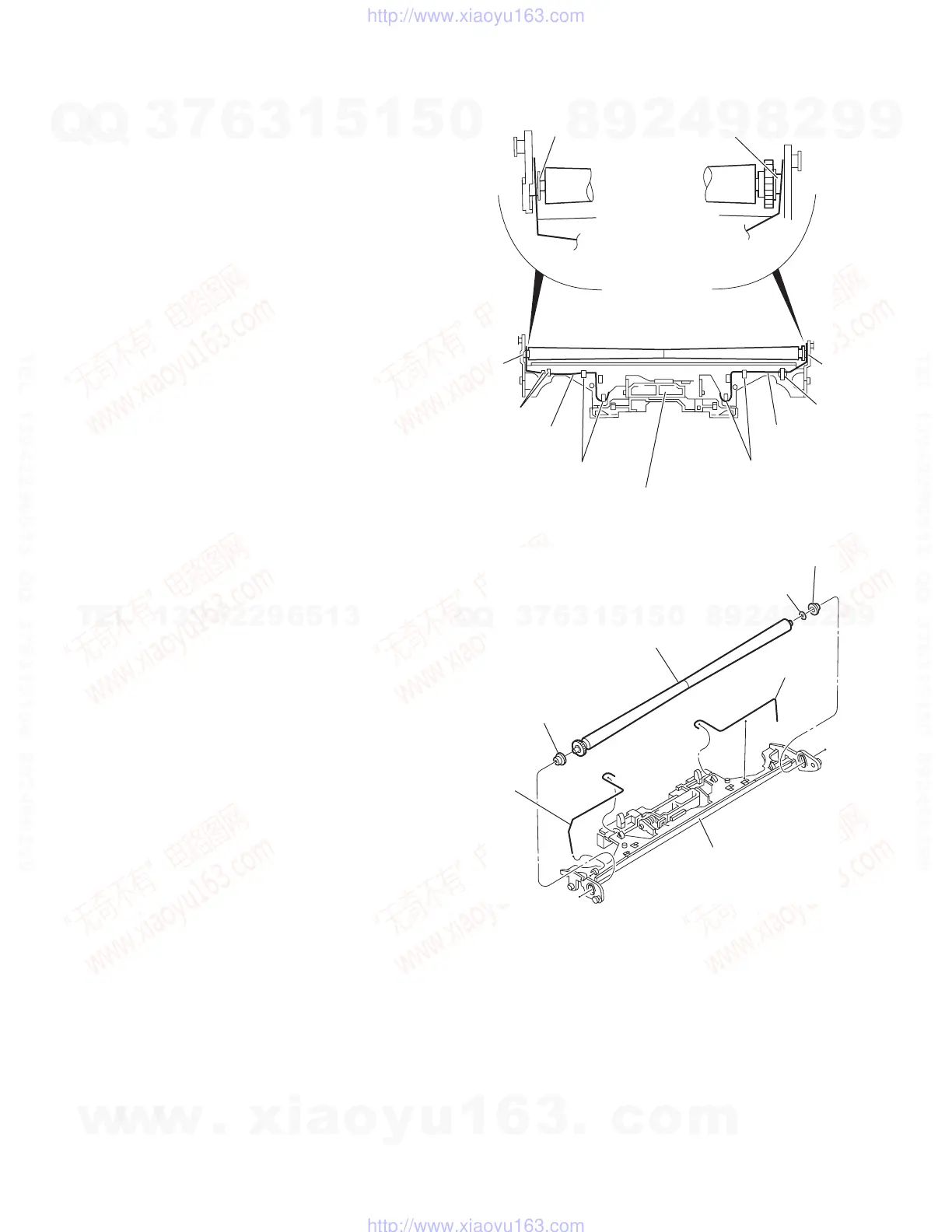

Fig.15
Fig.16
q
q
q
q
q
q
Rod(R)
Loading arm assembly
Rod(L)
Collar
Collar
Rod(R) Rod(L)
Roller assembly
Washer
Collar
Collar
Rod(L)
Loading arm assembly
Rod(R)
