3.1.4 Removing the side panel

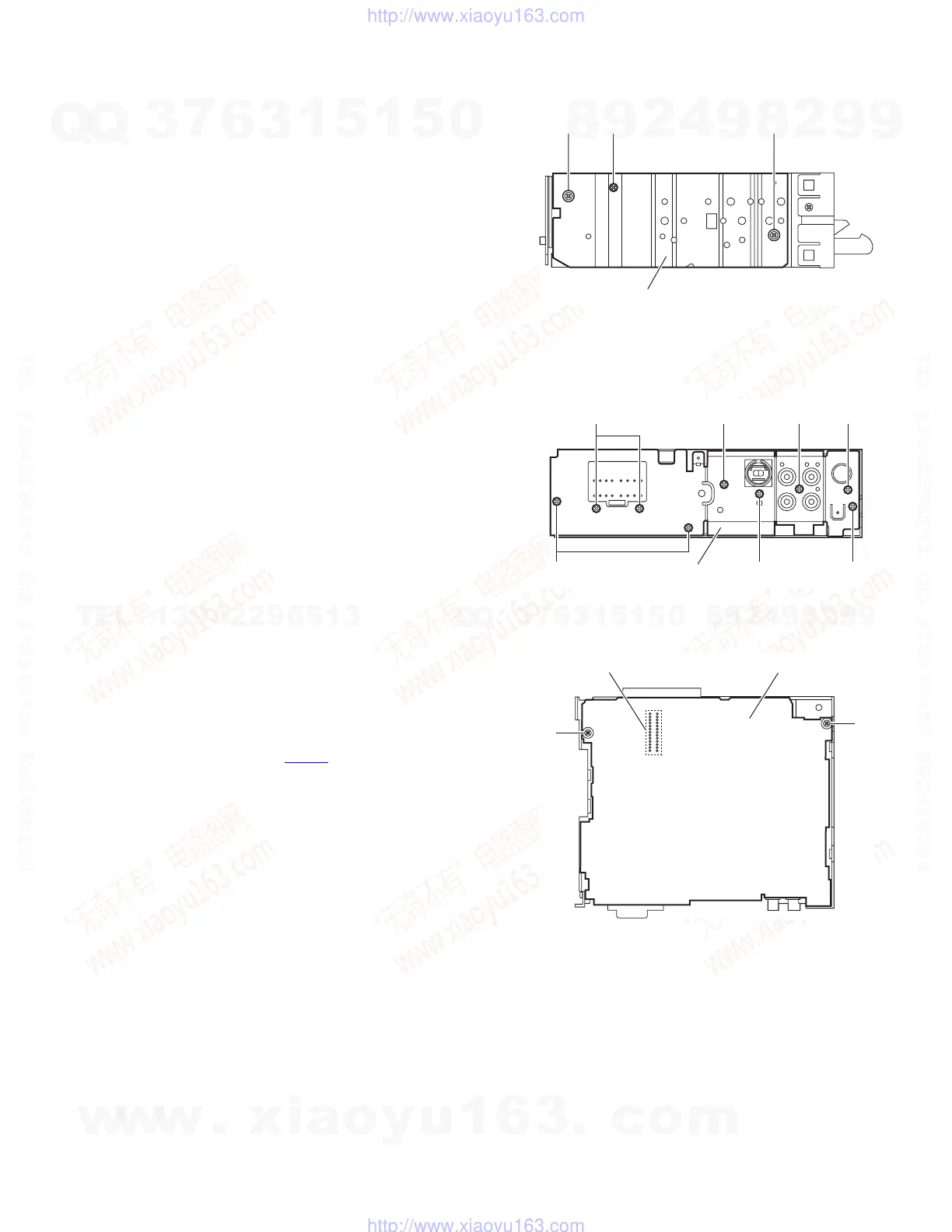

(See Fig.5)
• Prior to performing the following procedure, remove the front
panel assembly as required.
(1) From the left side of the main body, remove the two screws
C and screw D attaching the side panel.
Fig.5
3.1.5 Removing the rear bracket
(See Fig.6)
• Prior to performing the following procedure, remove the bottom
cover.
(1) From back side of the main body, remove the three screws
E, three screws F and three screws G attaching the rear
bracket.
Fig.6
3.1.6 Removing the main board
(See Fig.7)
• Prior to performing the following procedures, remove the front
panel assembly, bottom cover, front chassis assembly and
side panel.
• Remove the rear bracket as required.
(1) From the bottom side of the main body, remove the two
screws H attaching the main board.
(2) Disconnect the connector CN501
from the CD mechanism
assembly and remove the main board.
Fig.7
Side panel
CCD
G
E
G
Rear bracket
G
F
E
F
Main board
H
H
CN501
