(No.MA057B)1-7
SECTION 3
DISASSEMBLY

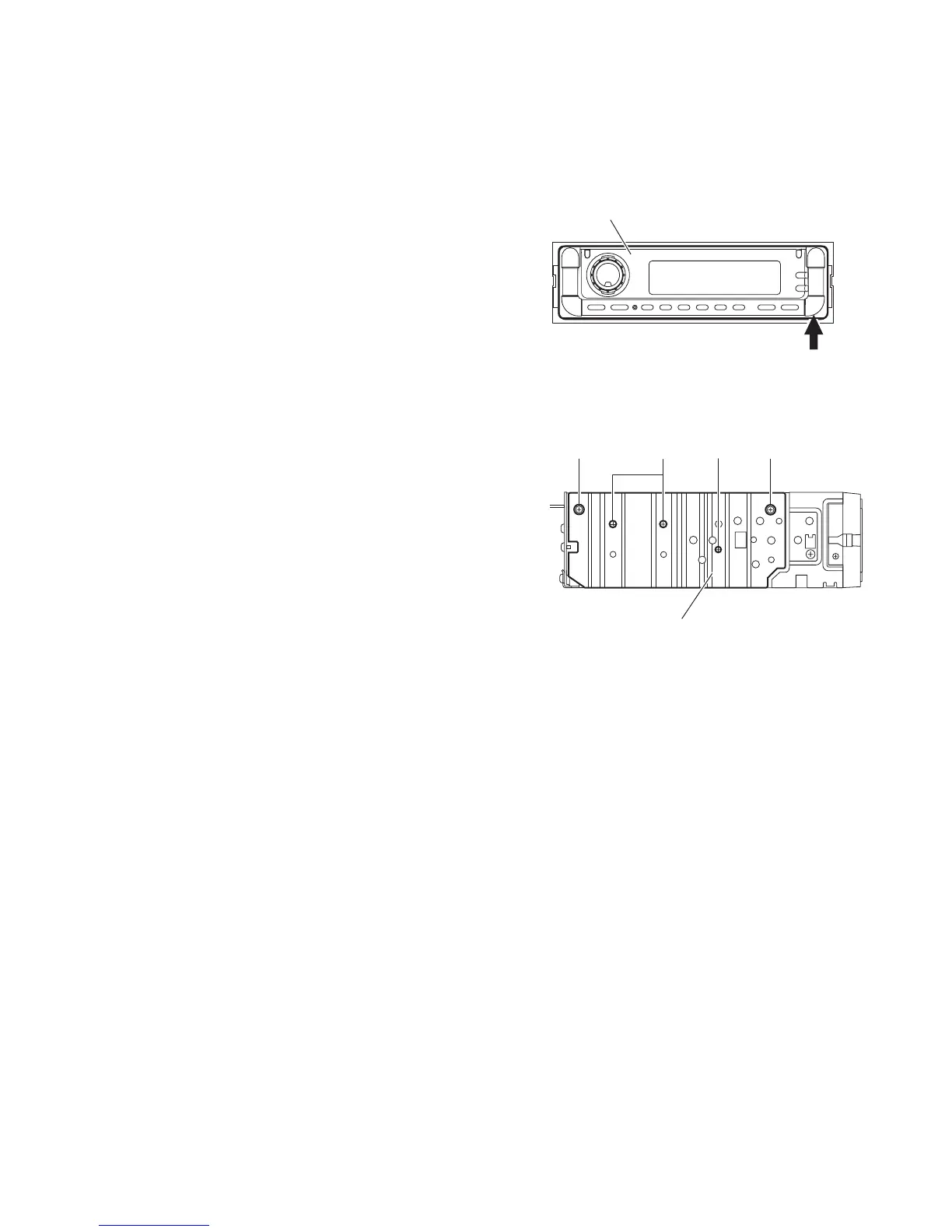

3.1 Main body section
3.1.1 Removing the front panel assembly
(See Fig.1)
(1) Push the detach button in the lower right part of the front
panel assembly.
(2) Remove the front panel assembly.
Fig.1
3.1.2 Removing the heat sink
(See Fig.2)
(1) From the left side of the main body, remove the two screws
A, two screws B and screw C attaching the heat sink.
Fig.2
Front panel assembly
Detach button
Heat sink
AA
C
B
