JVC KD-R885BTS

ENGLISH
36
Car fuse block
Ignition switch
Light blue/yellow
Blue/white:
To amplifier
Blue:
To power antenna
Make this connection if your vehicle factory wiring
harness does not have “12V ignition switch” wire.
Separate red wire

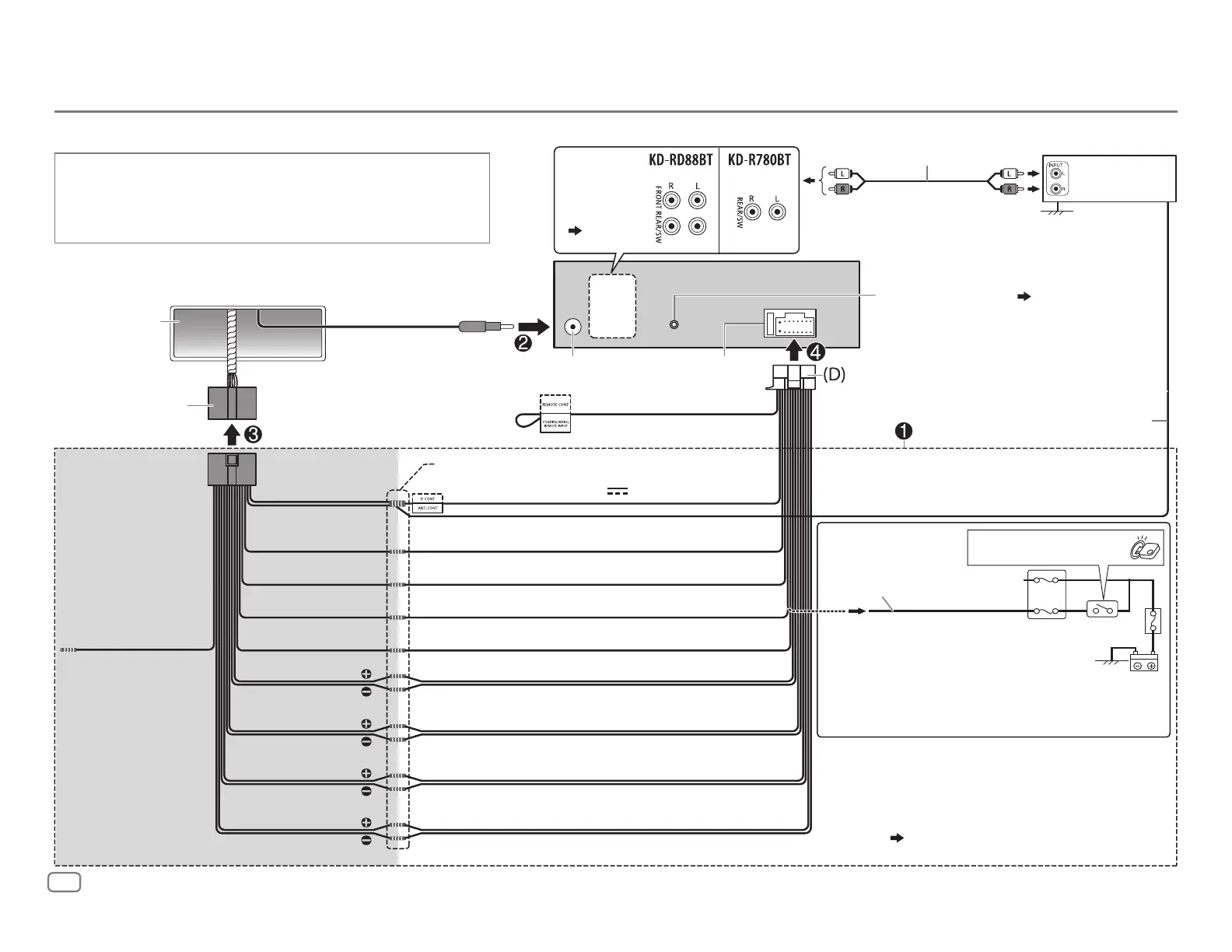

Wiring connection (for KD-R780BT/KD-RD88BT)
Signal cord (not supplied)
Remote wire (not supplied)
To the steering wheel
remote control adapter
Fuse (10A)Antenna terminal
JVC Amplifier
*
1
Factory wiring
harness (vehicle)
Black: Ground
Yellow: Battery 12V
White: Front speaker/3-way crossover: Mid range speaker (left)
White/black
Gray: Front speaker/3-way crossover: Mid range speaker (right)
Gray/black
Purple: Rear speaker/3-way crossover: Tweeter (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white: Remote (12 V
350mA)
Microphone input jack
( 14)
Output
terminals
( 34)
Brown (not used)
Green: Rear speaker
*
2
/3-way crossover: Tweeter (left)
Green/black
*
2
*
1
Firmly connect the ground wire of the amplifier to the
car’s chassis to avoid damaging the unit.
*
2
You can also connect a subwoofer speaker directly using
this lead without an external subwoofer amplifier. For
setting,
24 .
Custom wiring harness
(separately purchased)
Vehicle
dashboard
Recommended connection
INSTALLATION/CONNECTION
IMPORTANT
We recommend installing the unit with a commercially available custom
wiring harness specific for your car and leave this job to professionals for
your safety. Consult your car audio dealer.
