Part list for
installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
STEERING
WHEEL
REMOTE

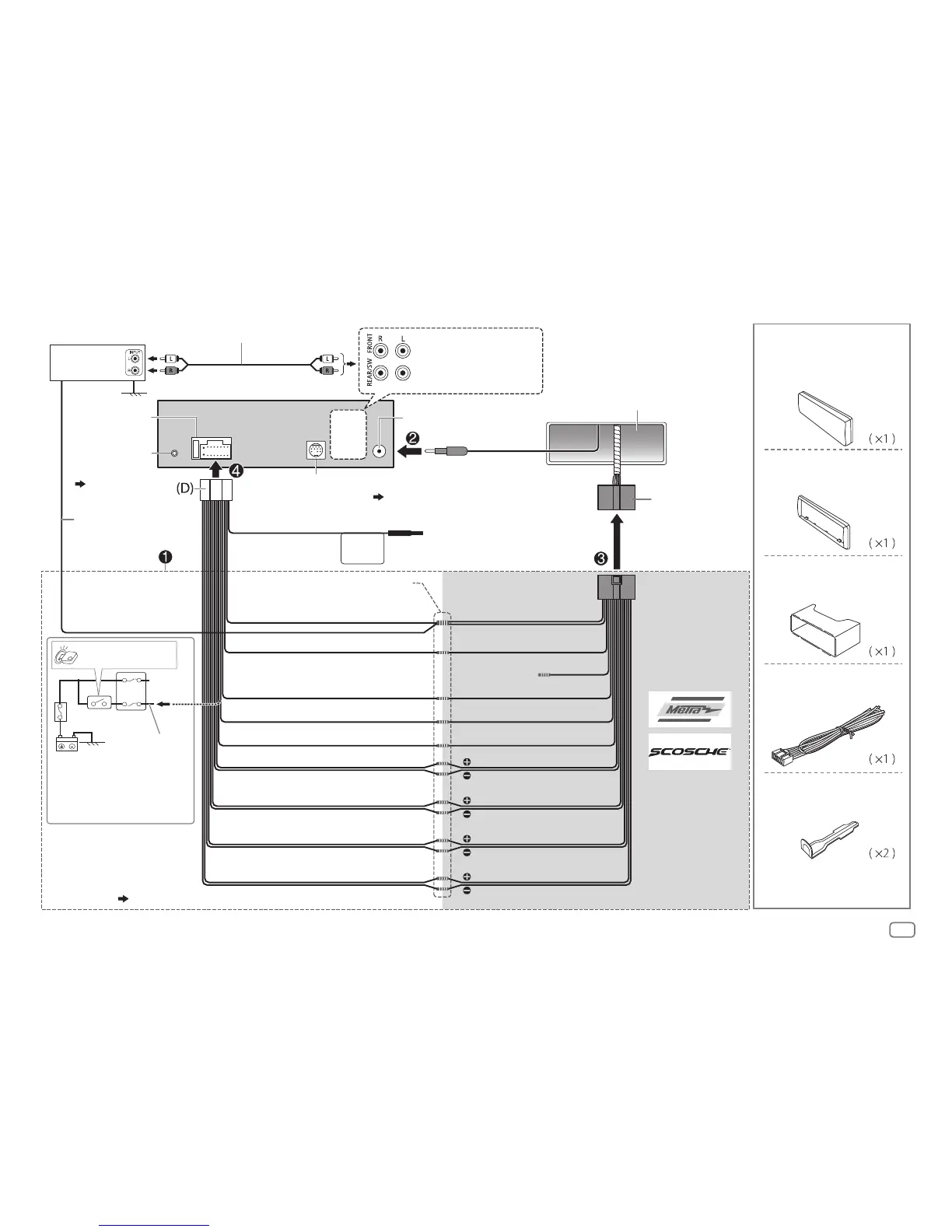

Wiring connection
Car fuse block
Ignition switch
Recommended
connection
Vehicle-specific Wiring
Harness (separately
purchased)
For more information:
Metra Electronics:
www.metraonline.com
Scosche Industries:
www.scosche.com
Blue/white: To amplifier
Blue: To power antenna
Make this connection if
your vehicle factory wiring
harness does not have
“12V ignition switch” wire.
Separate red wire
Signal cord (not supplied)
Remote wire
(not supplied)
Fuse (10A)
Antenna terminal
Factory wiring
harness (vehicle)
Vehicle dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Green: Rear speaker (left)
*
2
Green/black *
2
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white: Remote (200mA max.)
Light blue/yellow
To the steering wheel
remote control adapter
*
2
You can also connect a
subwoofer speaker directly
using this lead without an
external subwoofer amplifier.
For setting,
 21 .
JVC Amplifier
*
1
*
1
Firmly connect the ground wire of
the amplifier to the car’s chassis to
avoid damaging the unit.
Front output
Rear/subwoofer output
(Not used)
Brown
To the optional SiriusXM Vehicle Tuner
(commercially available)
( 11)
MIC (Microphone
input terminal)
( 14)
