30
ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

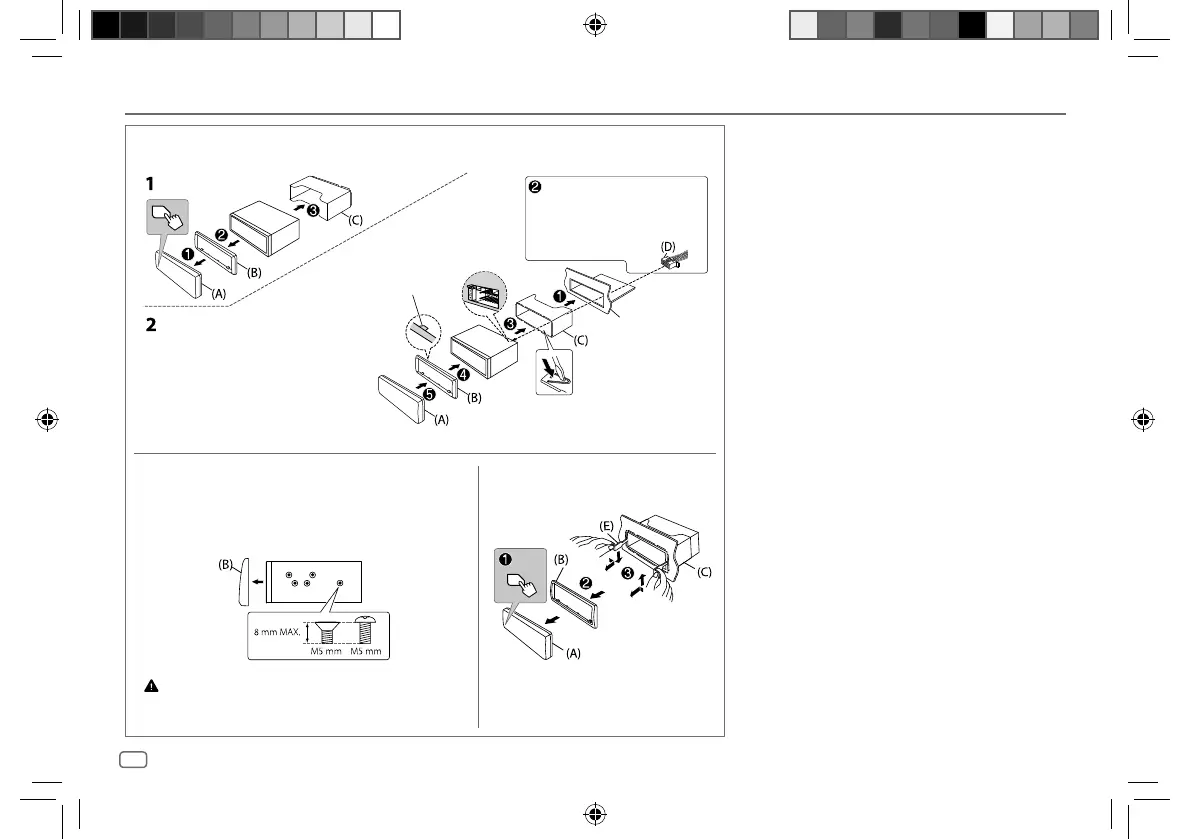

Installation/Connection
Installing the unit (in-dash mounting)
Removing the unit Installing the unit (without mounting sleeve)
1
Remove the mounting sleeve and trim plate from the unit.
2
Align the holes in the unit (on both sides) with the
vehicle mounting bracket and secure the unit with screws
(commercially available).
Use only the specified screws. Using wrong screws might damage
the unit.
Do the required wiring.
(Page 31)
Bend the appropriate tabs to hold the
sleeve firmly in place.
Hook on the top side
Orientate the trim
plate as illustrated
before fitting.
Dashboard of
your car
KD-X382BT_E_B5A-3841-00_EN_1st Draft.indd 30KD-X382BT_E_B5A-3841-00_EN_1st Draft.indd 30 17/9/2021 11:32:09 PM17/9/2021 11:32:09 PM
