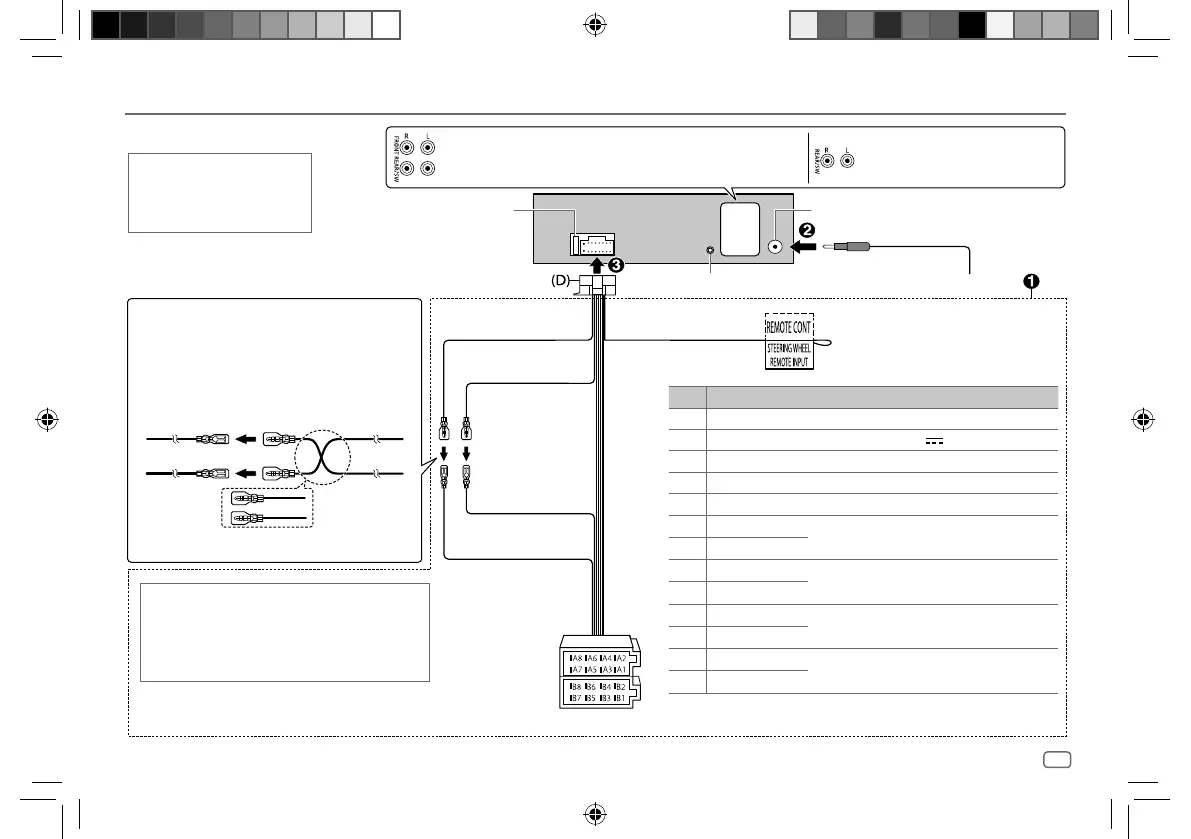

Installation/Connection
ISO connectors
Wiring connection
When connecting to an external
amplifier, connect its ground wire to
the car’s chassis to avoid damaging
the unit.
Fuse (10 A) Antenna terminal
To the steering wheel remote control adapter
Yellow (A4)
Red (A7)
Yellow (Battery wire)
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control (12 V
350 mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
For 3-way crossover: Tweeter (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
For 3-way crossover: Mid range speaker (right)
B4
Gray/black
[
B5
White
]
: Front speaker (left)
For 3-way crossover: Mid range speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)*
For 3-way crossover: Tweeter (left)
B8
Green/black
[
* You can also connect a subwoofer speaker directly without an external subwoofer
amplifier. For setting, see page 21.
Unit
Connecting the ISO connectors on some VW/
Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied wiring
harness as illustrated below.
Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
If your car does not have an ISO terminal
We recommend installing the unit with a commercially
available custom wiring harness specific for your car and
leave this job to professionals for your safety. Consult your
car audio dealer.
Red (Ignition wire)
Light blue/yellow
(Steering remote control wire)
Microphone input jack (page 11)
KD-X382BT:
Front output/3-way crossover: Mid Range output
Rear/subwoofer output/3-way crossover: Woofer output
KD-X282BT:
Rear/subwoofer output/
3-way crossover: Woofer output
