KT-DB1000
3
SECTION 2
Disassembly method
2.1 Main body

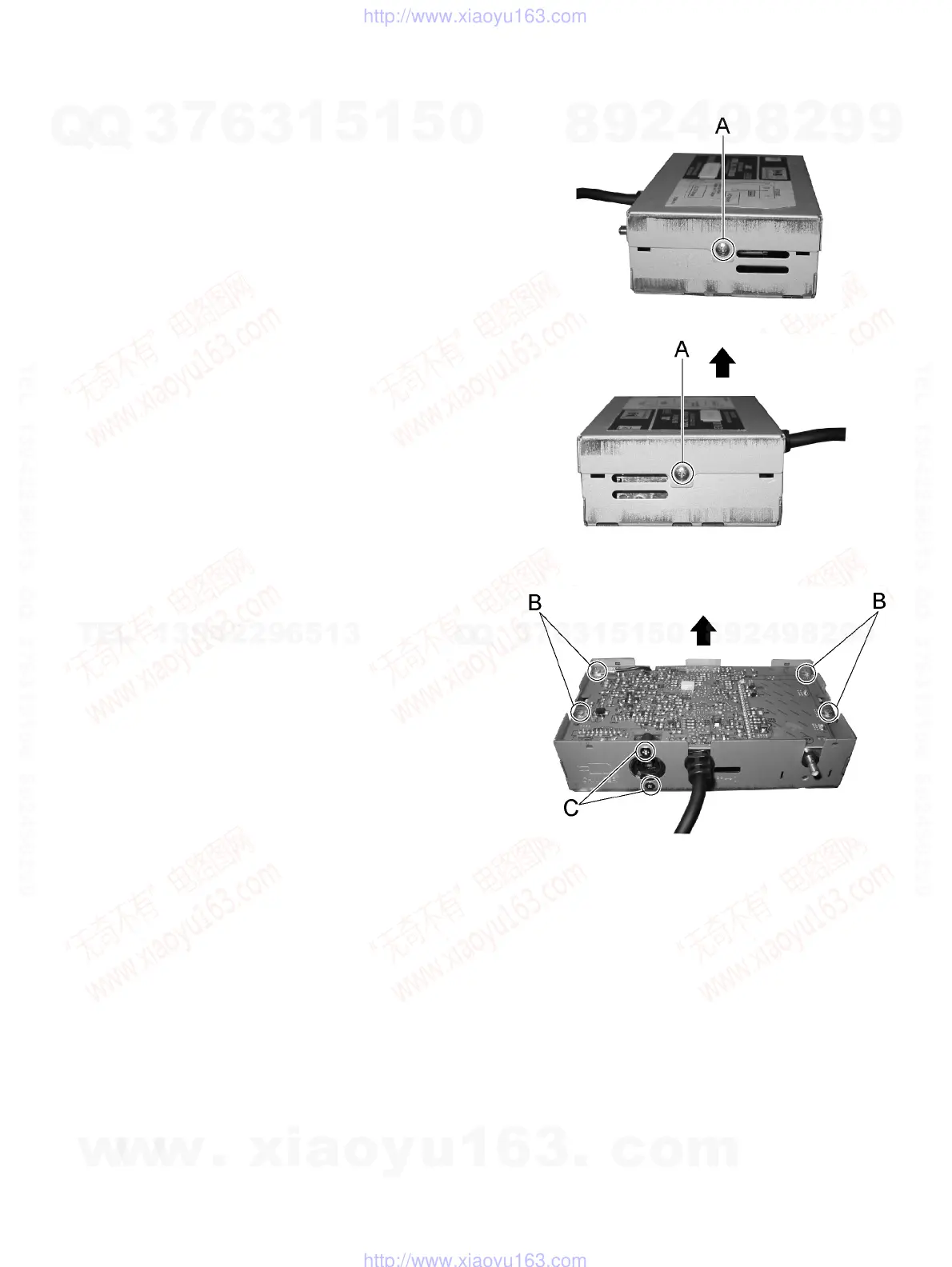

2.1.1 How to remove a top cover (See Figure 1 and 2.)
(1) Screw A attaches a top cover to the main body. Remove
the two screws A from the both sides of the main body.
(2) Raise the top cover in a direction that the arrow indicates.
And the top cover will be removed.
Fig.1
Fig.2
2.1.2 How to remove a main board (See Figure 3.)
(1) Remove the four screws B and the two screws C that at-
tach the main board to the main body.
(2) Raise the main board in a direction that the arrow indi-
cates. And the main board will be removed.
Fig.3
