MX-GT98V/MX-GT95V/MX-GT88V
MX-GT85V/MX-G78V/MX-G75V
1-18

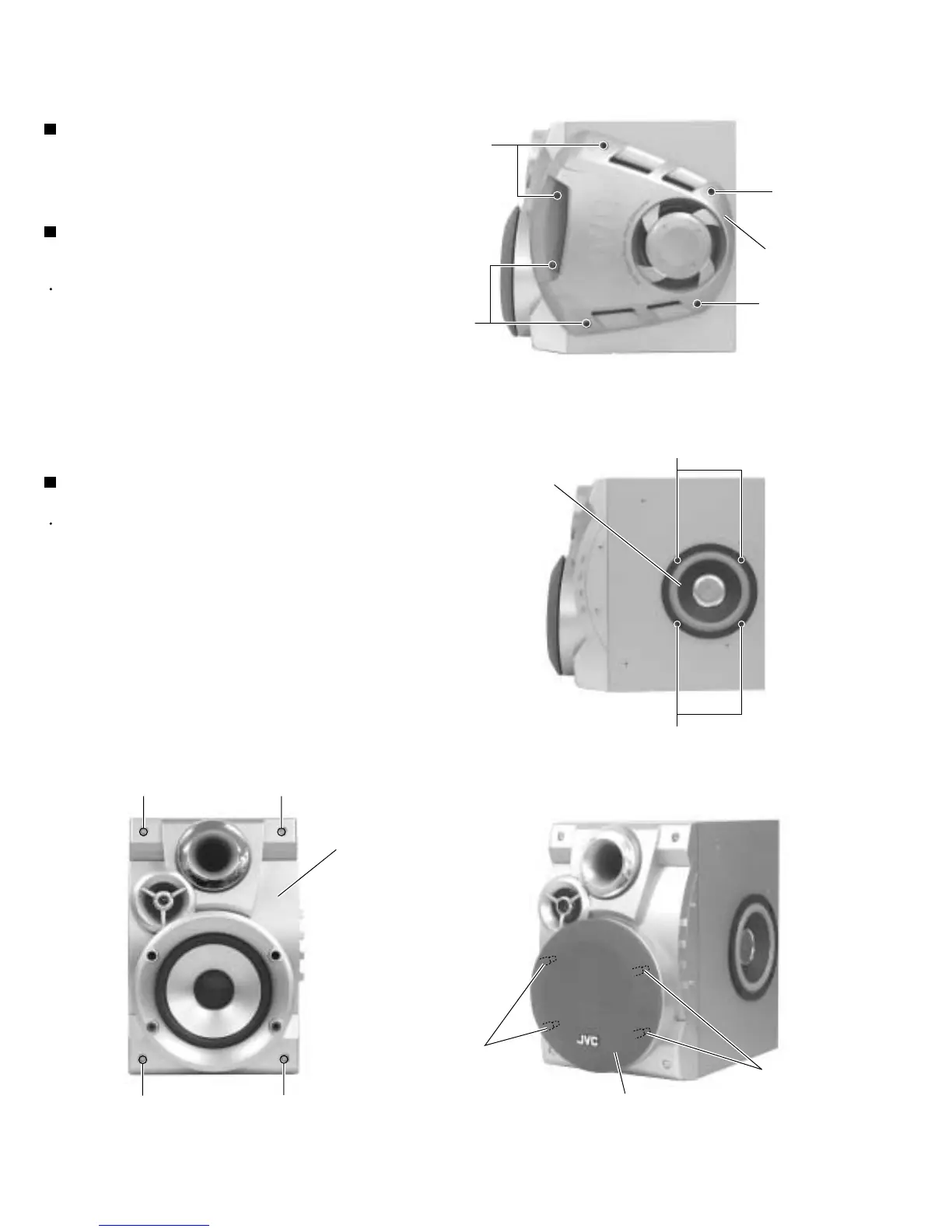

Remove the six screws A on the side of the body.
1.
Removing the side cover (See Fig.1)
Prior to performing the following procedure, remove
the side cover.
Remove the four screws B on the side of the body.
Disconnect the red and black wires from the speaker
terminals on the squawker speaker.
1.
2.
Removing the squawker speaker
(See Fig.2)
Prior to performing the following procedure, remove
the side cover.
Pull out the saran net toward the front while
disengaging the four joints a.
Remove the two screws C and D respectively.
Remove the front cover toward the front and
disconnect the yellow and black wires from the two
tweeter speaker terminals.
1.
2.
3.
Removing the front cover (See Fig.3 to 5)
[for MX-G78V/MX-G75V]
Fig.1
Fig.2
Fig.3
A
A
A
A
Side cover
B
Squawker speaker
B
Joints a
Joints a
Saran net
Fig.4
Front cover
CC
DD
To Next Page
