JVC MX-G78V - Disassembly Procedures; Main Unit and Panel Disassembly

MX-GT98V/MX-GT95V/MX-GT88V
MX-GT85V/MX-G78V/MX-G75V
1-5

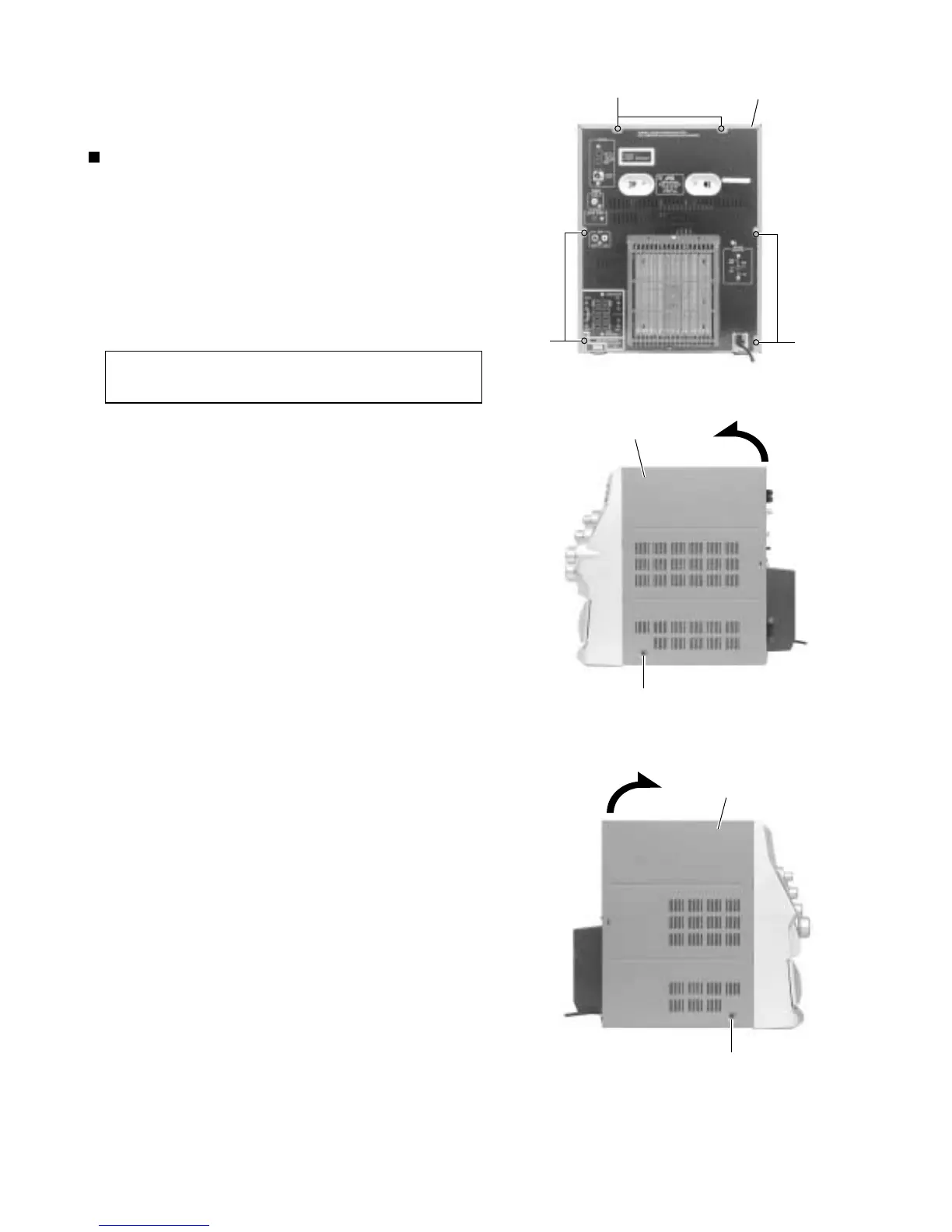

Remove the six screws A on the back of the body.
Remove the two screws B on both sides of the
body.
Remove the metal cover from the body by lifting the
rear part of the cover.
1.
2.
3.
Disassembly method
<Main body>
Removing the metal cover
(See Fig.1 to 3)
Do not break the front panel tab fitted to
the metal cover.
CAUTION:
Fig.1
Fig.2
Fig.3
A
A
A
Metal cover
Metal cover
B
Metal cover
B
