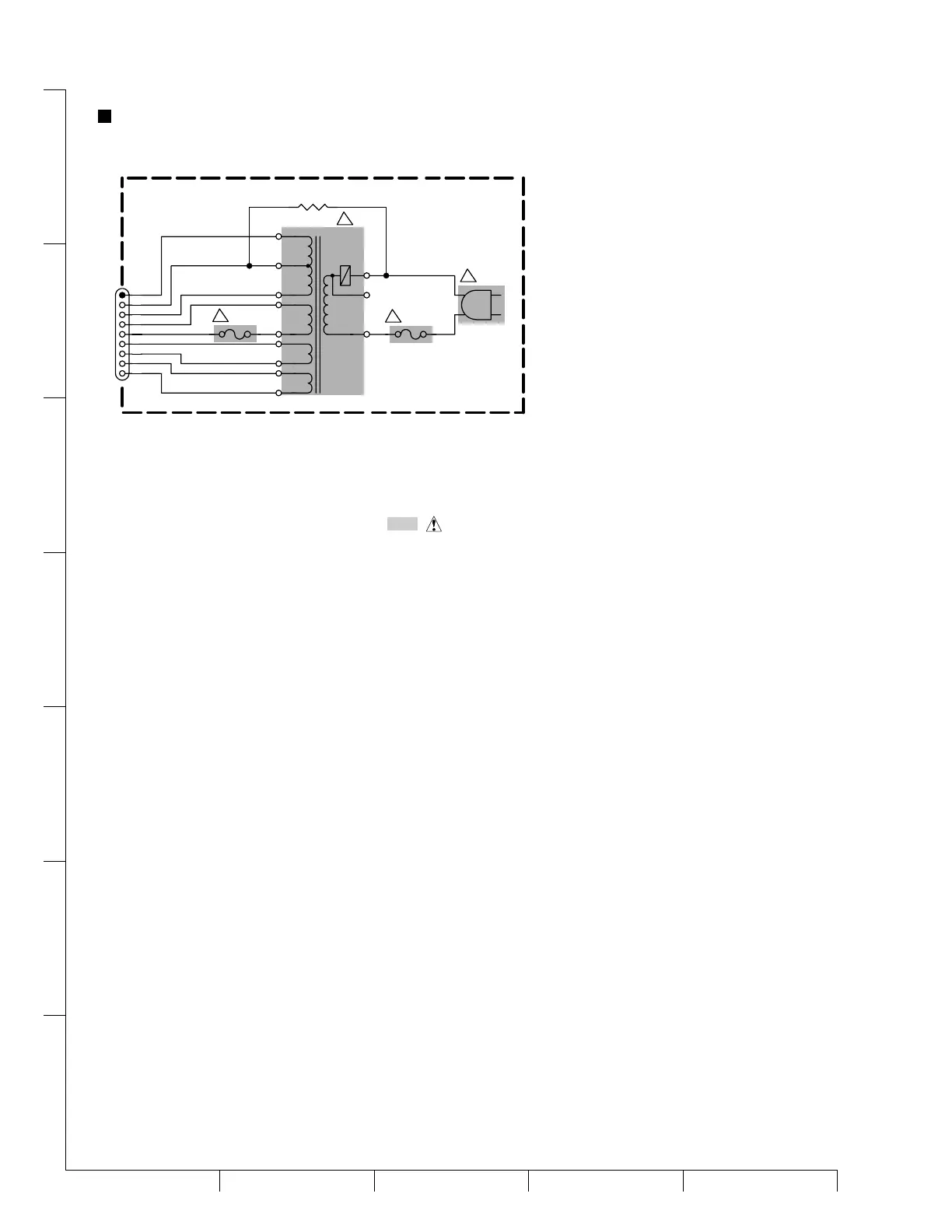

JVC MX-J200 - Standard Schematic Diagrams; Power Transformer Section

MX-J200/J206
2-2
F951
2A 250V
F952
1.6A 250V
1
2
3
4
5
6
7
8
9
FW951
AC-PLUG
R951
3.3M 1/2W
J/C Version 120V 60Hz
11
5
13
14
15
8
10
2
9
12
16
6
T951
EI-66
!
!
!
!
Power Transformer section
SHEET 1/5
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified.
Standard schematic diagrams
