3.4.3 Removing the front woofer
(See Figs.4 and 5)
• Prior to performing the following procedures, remove the front
panel assembly.
(1) From the front side of the subwoofer main body, remove
the four screws A attaching the front woofer. (See Fig.4.)
(2) Take out the front woofer from the subwoofer main body
and disconnect the wires (red and black wires) from the ter-
minal of the front woofer. (See Fig.5.)
3.4.4 Removing the rear woofer
(See Figs.5 and 6)
(1) From the back side of the subwoofer main body, remove
the four screws B attaching the rear woofer and woofer
grille. (See Fig.6.)
(2) Take out the rear woofer from the subwoofer main body
and disconnect the wires (red and black wires) from the ter-
minal of the rear woofer. (See Fig.5.)

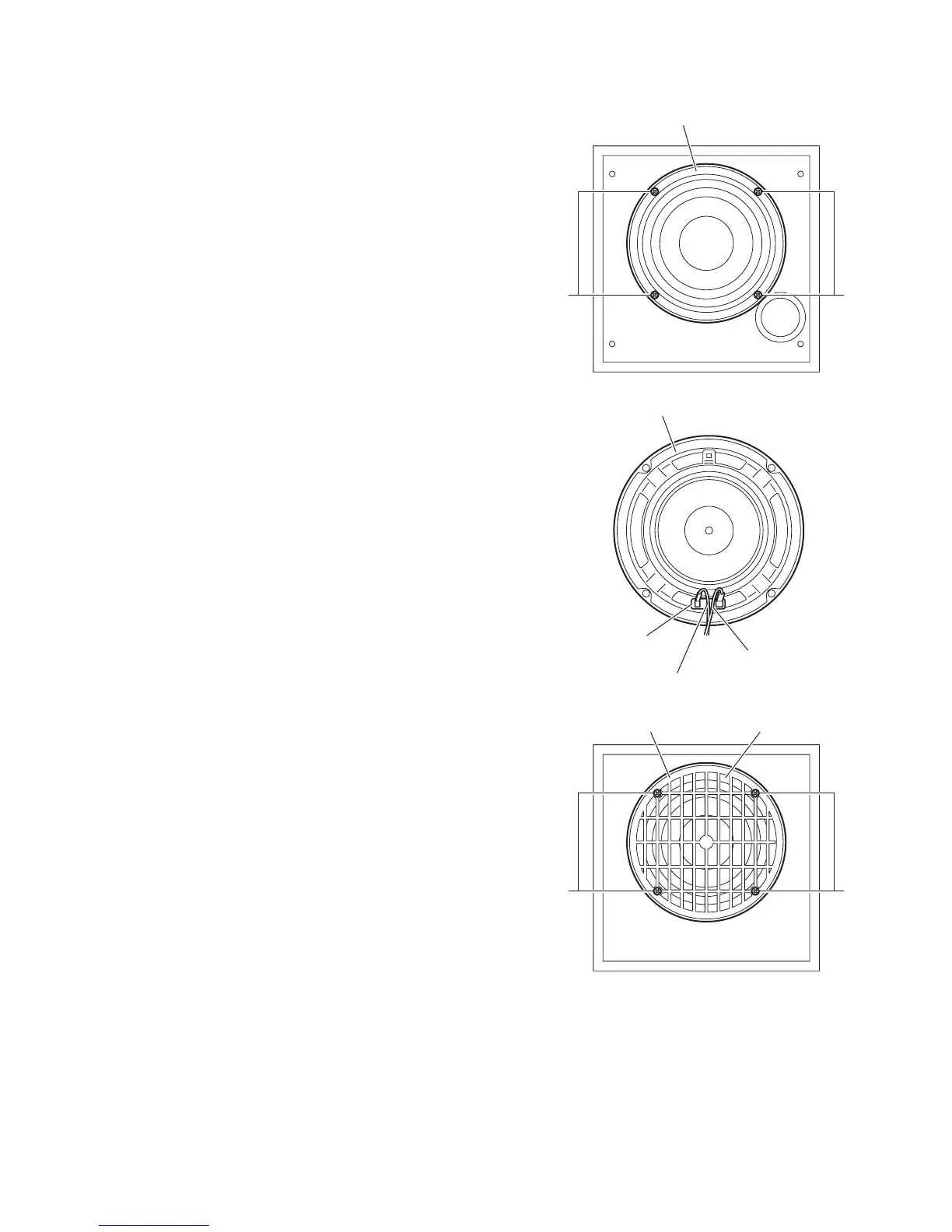

Fig.4
Fig.5
Fig.6
Woofer
A A
Rear Woofer
Terminal
Wire(black)
Wire(red)
Woofer grille Rear woofer
B B
