3.5.4 Removing the speaker
(See Figs.4 and 5)
• Prior to performing the following procedures, remove the front
panel assembly.
(1) From the front side of the front speaker main body, remove
the four screws B attaching the speaker. (See Fig.4.)
(2) Take out the speaker from the front speaker main body and
disconnect the wires (red/black and yellow/black wires)
from the terminal of the speaker. (See Fig.5.)

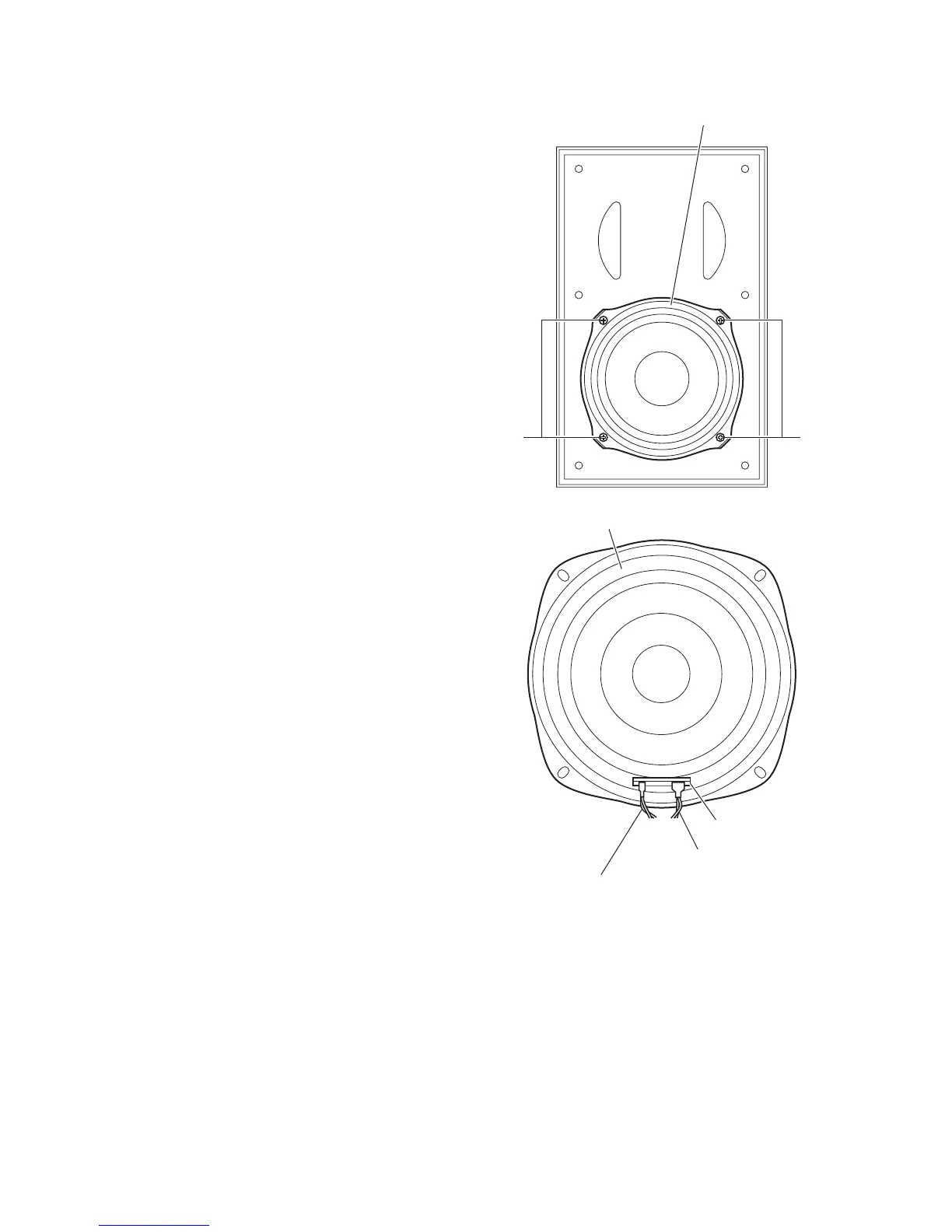

Fig.4
Fig.5
Speaker
BB
Speaker
Wires (Red/Black)
Wires (Blue/Black)
Terminal
