1-10
n Removing the front panel assembly

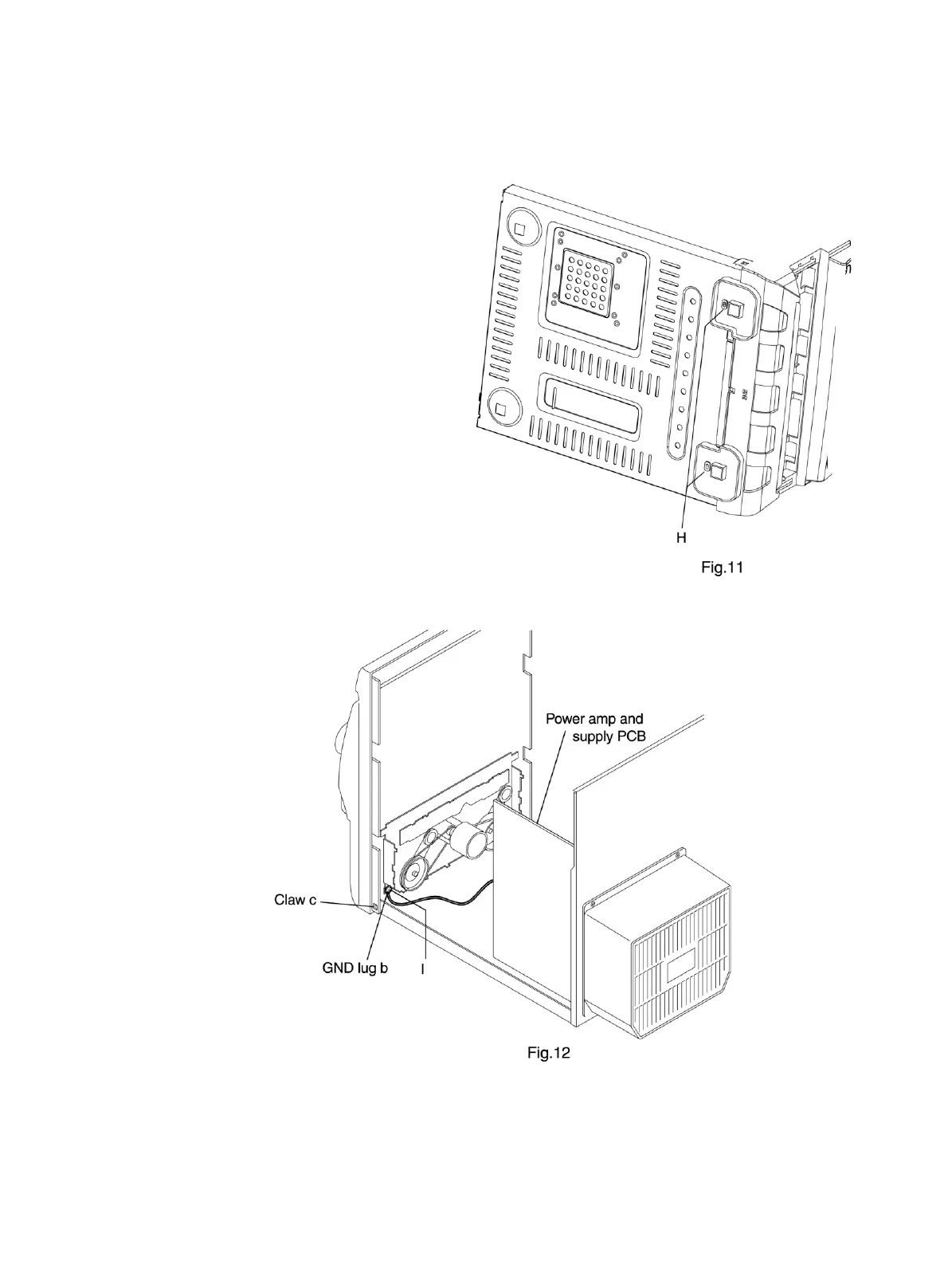

(See Fig.11 and 12)
n
Prior to performing the following procedures, remove
the top cover and both sides board.
n
Also remove the CD changer unit.
1. Disconnect the parallel wire and card wire from the
connectors CN702,CN701,CN101on the power amp
and supply PCB.
2. Remove the two screws "H" retaining the front panel
assembly onto the bottom of the body.
3. Remove the screw "I" retaining the cassette deck
mechanism and then remove then GND lug "b" that
comes from the power amp and supply PCB.
4. Disengage the claws "c" on both sides at the bottom
of the front panel assembly and then remove the
assembly.
