1-12

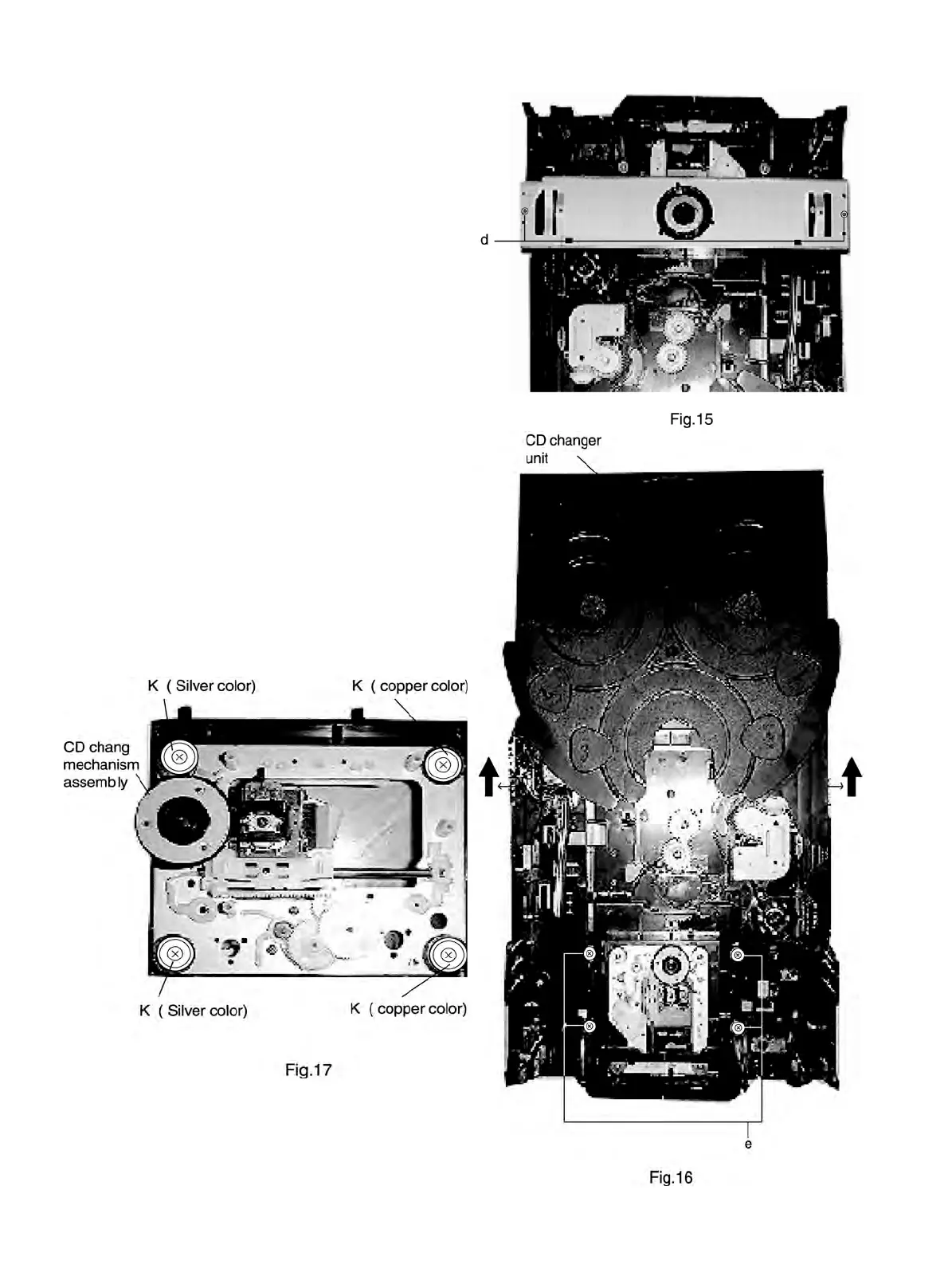

n Removing the CD changer mechanism
assembly
(See Fig.15 to 17)
n
Prior to performing the following procedures, remove
the top cover and both sides board.
n
Also remove the CD changer unit.
1. Remove the screws "d" from the front chuch base of
the CD changer mechanism unit.
2. Turn the CD changer mechanism cover base and
remove the screws "e" connecting the unit to the CD
changer mechanism assembly.
3. Removing the four screws "k" retaining the CD
mechanism holder assembly.
[Caution] When replacing the CD changer mechanism
assembly, be sure not to mistake the
positions of the silver color and copper color
spring.
