1-24

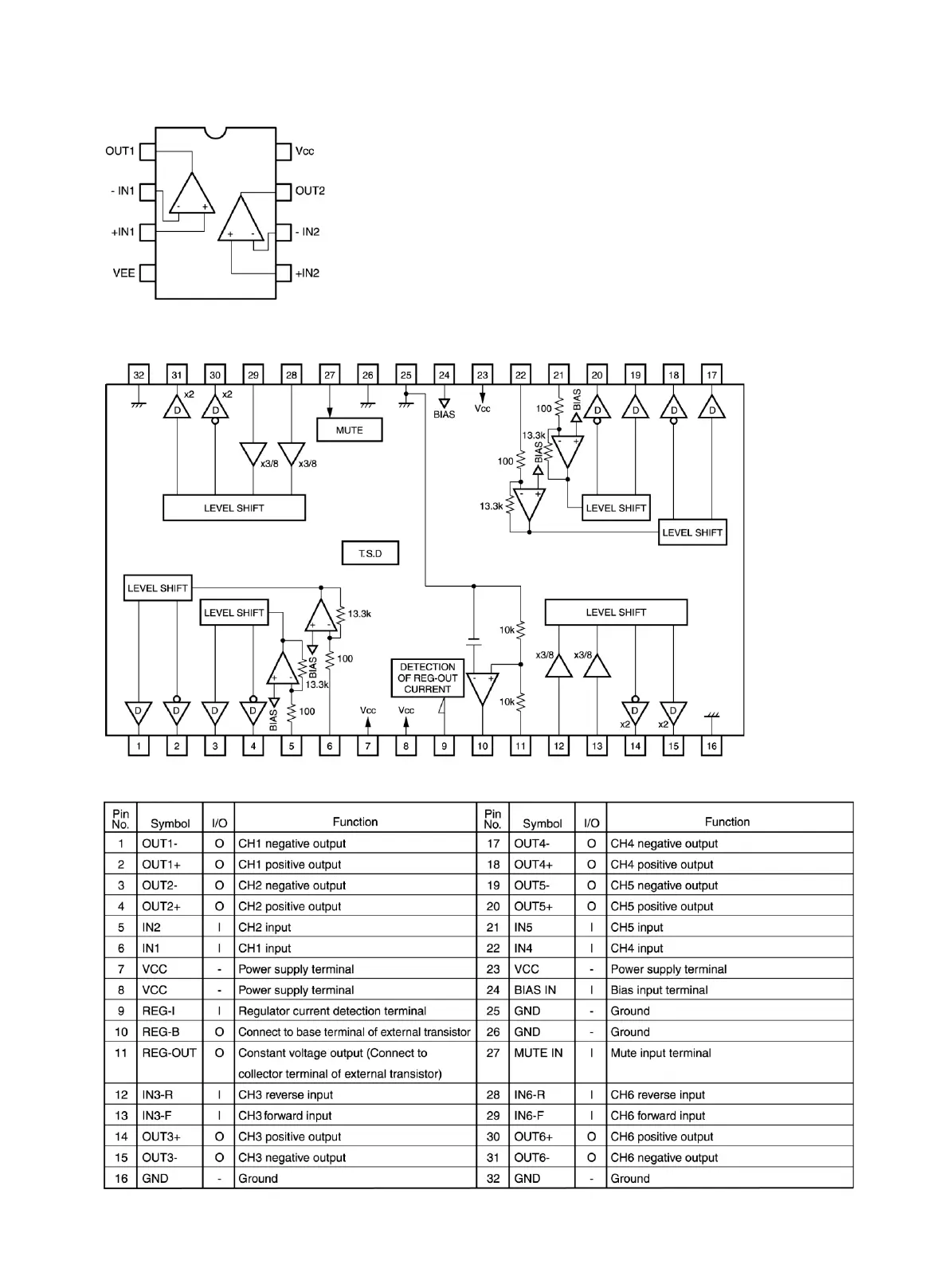

n BA15218DIP (IC102) : Dual low noise operational amp.
1. Terminal layout
n BA5936S (IC621) : 6 channel BTL driver
1. Block diagram
2. Pin function
