– 4 –
English
See pages in the parentheses for details.
Front Panel
1 Carrousel
2 STANDBY/ON button and STANDBY lamp
(9, 26, 27)
3 7 (stop) button (13 – 23)
4 SET button (9, 12, 14, 25 – 27)
5 CANCEL button (9, 15, 25, 26)
DEMO button (8)
6 Display window
7 TAPE 3 button and lamp (10, 20, 22)
Pressing this button also turns on the unit.
8 CD 6 (play/pause) button and lamp (10, 13 – 15)
Pressing this button also turns on the unit.
SELECT button (18, 19)
9 FM/AM button and lamp (10, 12)
Pressing this button also turns on the unit.
p AUX button and lamp (10)
Pressing this button also turns on the unit.
q PHONES jack (10)
w CLOCK/TIMER button (9, 25 – 27)
e DISPLAY button (9)
r PBC button (18, 19)
RETURN button (18, 19)
VCD NUMBER + / – buttons (18, 19)
t REPEAT button (15)
PROGRAM button (14)
RANDOM button (15)
y Deck A cassette holder (20, 22)
• Pressing the 0 EJECT portion opens the holder.
u 0 (Carrousel open/close) button (13 – 16)
Pressing this button also turns on the unit.
i Disc number buttons and lamps (CD1, CD2, and CD3)
(13, 14, 17 – 19, 22)
Pressing one of these buttons also turns on the unit.
o DISC CHANGE button (13, 14)
; Remote sensor
a SOUND MODE control (11)
Continued
s PRESET + / – buttons (12)
4 / ¢ (reverse search/forward search) buttons
(9, 14, 16, 25 – 27)
PREV. (previous) / NEXT buttons (18, 19)
d ACTIVE BASS EX. LEVEL control (11)
f VOLUME control (10)
g TUNING + / – buttons (12)
1 / ¡ (fast rewind/fast forward) buttons
(10, 14, 16, 20)
h MIC LEVEL control (23)
j MIC jack (23)
k TAPE A button (16, 20)
• This button also functions as NTSC/PAL button.
TAPE B button (20)
l REC START/STOP button (21)
CD REC START button (22)
DUBBING button (22)
/ Deck B cassette holder (20 – 22)
• Pressing the EJECT 0 portion opens the holder.

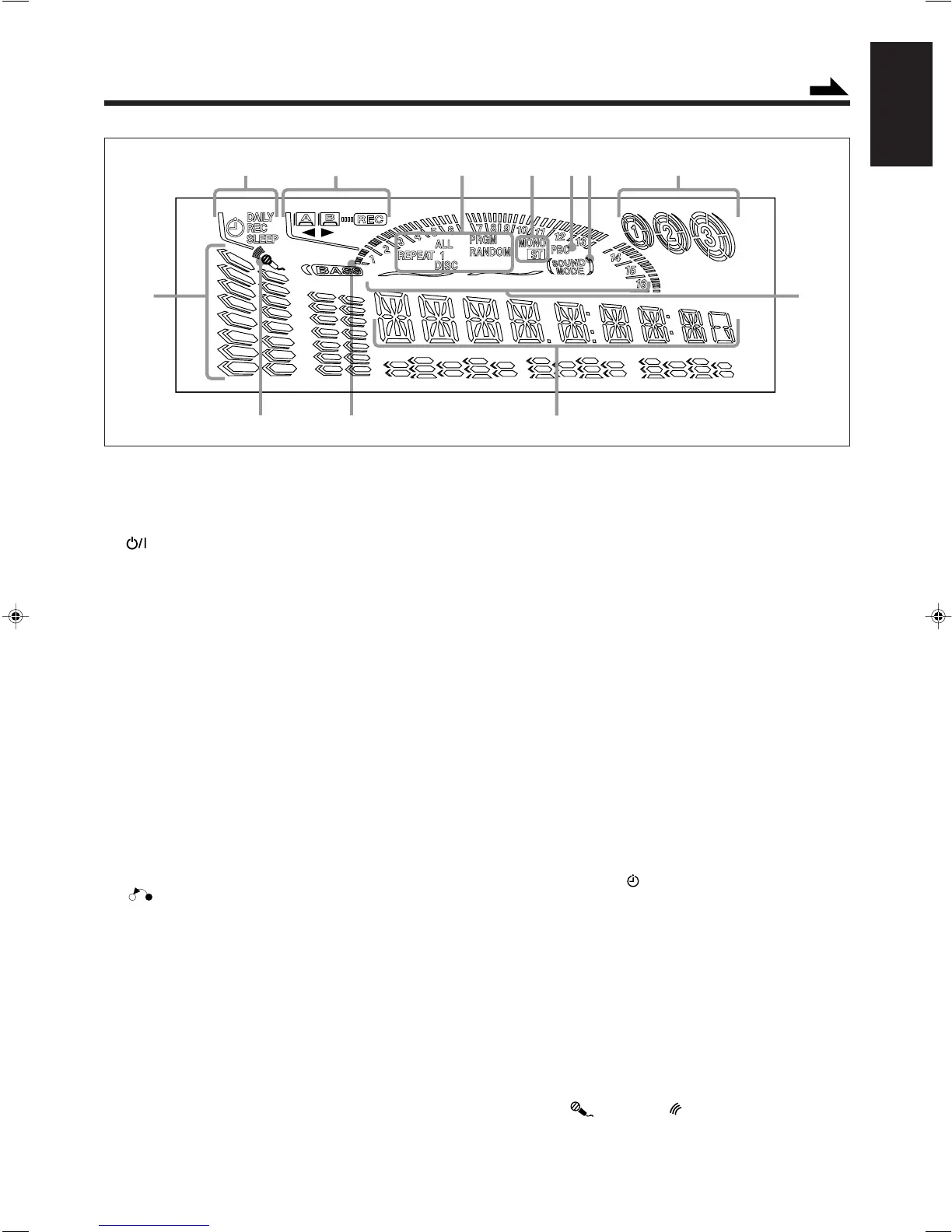

Display window
1 Timer indicators
• DAILY (daily timer), REC (recording timer), SLEEP
(sleep timer), and (timer) indicators
2 Tape operation indicators
• A/B (operating deck), REC (recording), and 2 3 (tape
running) indicators
3 Disc play mode indicators
• REPEAT (1, 1 DISC, ALL DISC), PRGM (program),
and RANDOM indicators
4 Tuner operation indicators
• MONO and ST (stereo) indicators
5 PBC indicator
6 SOUND MODE indicator
7 Disc indicators
8 Volume level, Bass level, and Sound Mode pattern indicators
9 Karaoke ( ) and echo ( ) indicators
p BASS and its level indicators
q Main display
• Shows the source name, frequency, etc.
w Disc track number indicators
Display Window
1
2
7
4
8
9
p
3
5
q
w
6
